OWNER'S
GUIDE

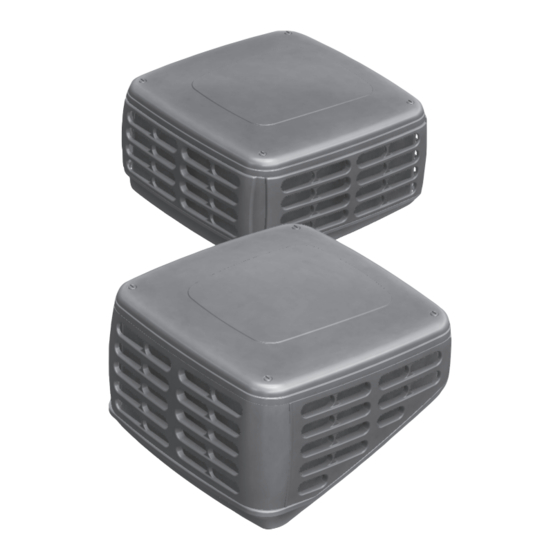

Evaporative Air Coolers
Safety Information
Owner's Information
Warranty
Models
Classic Evaporative Air Coolers:
KC17 | KC21 | KC27 | KC32
Low Profile Evaporative Air Coolers:
KL16 | KL22 | KL25 | KL28

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KC17 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Kaden KC17

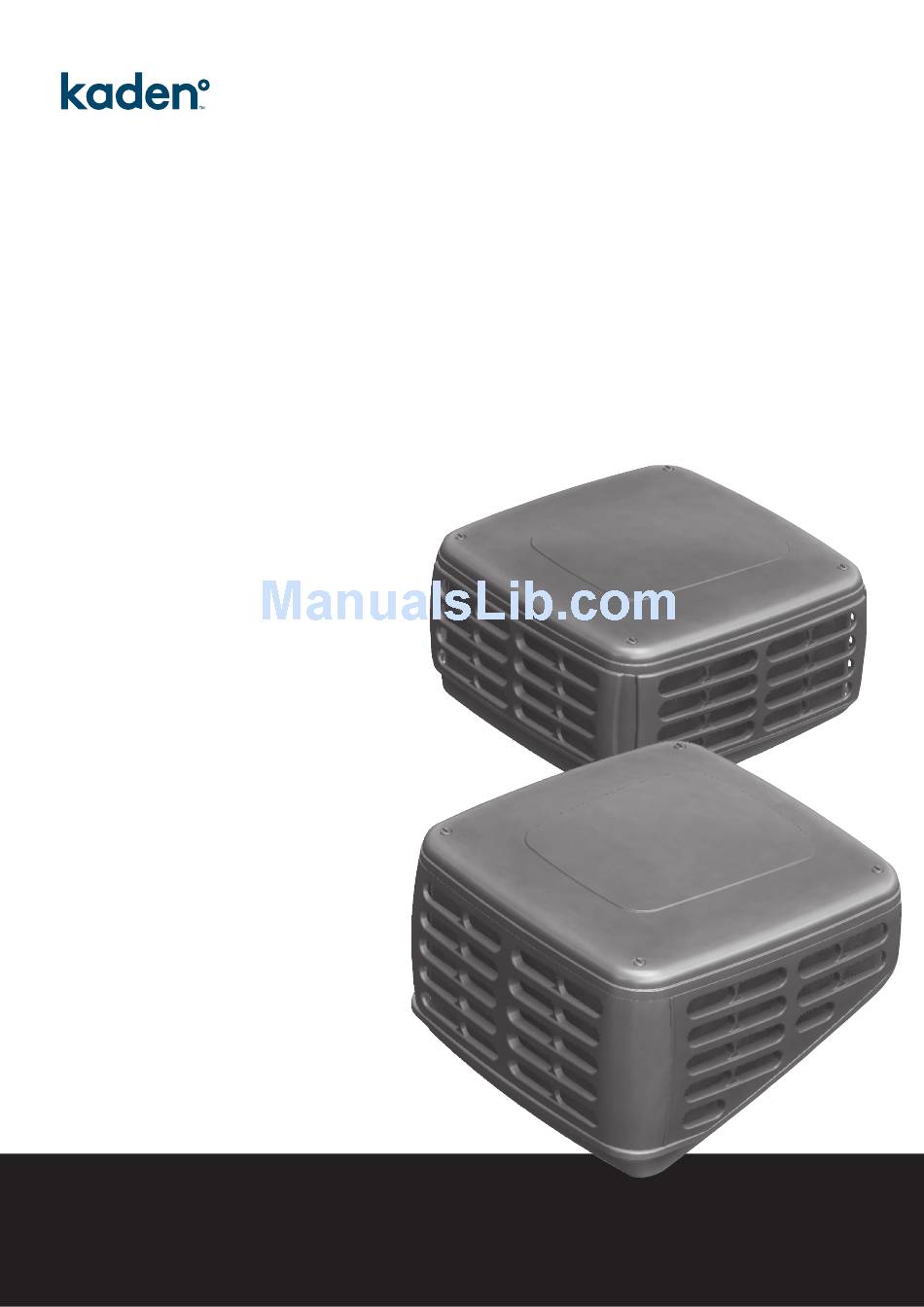

  • Page 1 OWNER’S GUIDE Evaporative Air Coolers Safety Information Owner’s Information Warranty Models Classic Evaporative Air Coolers: KC17 | KC21 | KC27 | KC32 Low Profile Evaporative Air Coolers: KL16 | KL22 | KL25 | KL28...
  • Page 2 Kaden Owner’s Guide Evaporative Air Coolers This page is intentionally blank...
  • Page 3: Table Of Contents

    Before Operating Your Evaporative Cooler ���������������������������������������������������������������������������������������������������������������������������� 6 Start Up ���������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 7 Shut Down ����������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 7 On Humid Days ��������������������������������������������������������������������������������������������������������������������������������������������������������������������� 7 Ceiling Vent(s) Location ��������������������������������������������������������������������������������������������������������������������������������������������������������� 7 Kaden Networker Wall Control Automatic Pre-Wet ����������������������������������������������������������������������������������������������������������������������������������������������������������������� 9 Automatic Operation �������������������������������������������������������������������������������������������������������������������������������������������������������������� 9 Manual Operation ���������������������������������������������������������������������������������������������������������������������������������������������������������������� 10 Using the Timer �������������������������������������������������������������������������������������������������������������������������������������������������������������������� 10 Setting the Time &...
  • Page 4 Kaden Owner’s Guide Evaporative Air Coolers This page is intentionally blank...
  • Page 5: Warnings And Important Information

    Children should be supervised to ensure that they DO NOT play with the appliance� MODELS COVERED IN THIS MANUAL Kaden Low Profile KL16 KL22 KL25 KL28...
  • Page 6: Evaporative Cooler Operation

    EVAPORATIVE COOLER OPERATION INTRODUCTION Congratulations on your purchase of a Kaden Cooling system. For you to achieve the performance and efficiency expected from your new cooler, please ensure the installer is a qualified trades person, that the installer has commissioned the unit before you commence operating, and you take the time to read the contents of this manual�...
  • Page 7: Start Up

    SHUT DOWN On Kaden KC & KL Series units, there is also a delay in emptying the water from the Cooler’s tank for a period after the unit has turned OFF at the end of use� Kaden KC & KL Series models have an additional pre-programmed tank wash cycle (flush).
  • Page 8: Kaden Networker Wall Control

    Evaporative Air Coolers KADEN NETWORKER WALL CONTROL The Kaden Networker wall control operates the complete cooling system, communicating key information and sensing the temperature. It is an important part of the unit and the following text will explain its operation.
  • Page 9: Automatic Pre-Wet

    It will take approximately 8 minutes for the Cooler to complete the pre-wet before the fan will turn on. The next time you return to “Auto” these steps will not be necessary because the Kaden Networker remembers your previous settings.
  • Page 10: Manual Operation

    Kaden Owner’s Guide Evaporative Air Coolers MANUAL OPERATION Manual operation enables you to control the fan, its speed, and the pump manually� To run the Cooler in Manual mode, just follow these steps: 1� Turn the Networker on using the ON/OFF button (1)�...
  • Page 11: Setting The Time & Day

    SETTING THE TIME & DAY 1� Ensure the Networker is turned OFF using the ON/OFF button (1)� 2� Press Key 5 (18 - Clock) and the screen will display the message “Clock setting mode”, and then the Digital Clock (19) will flash. 3�...
  • Page 12: Coded Messages

    Kaden Owner’s Guide Evaporative Air Coolers CODED MESSAGES While the Networker is operating your system, it is also monitoring and controlling every aspect of the system's performance� If anything unusual occurs, the Networker will display an error message� • A message (23) stating "Cooler Fault - E01 Code #?? For assistance call for service" will scroll across the top of the screen�...
  • Page 13: Locking The Networker

    LOCKING THE NETWORKER To prevent any unwanted alterations being made to the coolers settings, the Networker can be locked via a 4- digit PIN code� Setting the PIN 1� Press the FUNCTION button (2), followed immediately by Key 2 (15)� The screen will then display “Enter Your PIN number to lock the system”�...
  • Page 14: Manual Wall Controller

    Kaden Owner’s Guide Evaporative Air Coolers MANUAL WALL CONTROLLER OPERATING YOUR MANUAL WALL CONTROL The Manual Wall Control requires you to manually control Pump (and Pre-Wet cycle) operations, fan operation and the fan speed� On days of high humidity for ventilation the fan may be operated without operating the pump�...
  • Page 15: Care & Maintenance

    CARE & MAINTENANCE CUSTOMER CARE PROGRAM Service and maintenance in accordance with the Service Maintenance Schedule on page 17 is essential in ensuring the prolonged useful life of your cooler, and help ensure it operates at optimum efficiency. Seasonal Maintenance is required only if you have a cooler fitted with a bleed system (i.e. no drain valve). Coolers fitted with a drain valve do not require Seasonal Maintenance�...
  • Page 16: Installation Record

    Kaden Owner’s Guide Evaporative Air Coolers There is no air coming out of some vents • It is highly probable that it is an installation issue. Please contact your installer in the first instance. There is moisture on my tiles •...
  • Page 17: Service Maintenance Schedule

    Water level sensor * Installation and other field-supplied components are not covered by Kaden Product Warranty. These include, but are not limited to, control wiring, ducting, diffuser, controls/thermostats, pipework and fabricated or added components and water and electrical connections to the appliance. These should be inspected as they can affect the performance, reliability and safety of the cooler.
  • Page 18: Faq

    Kaden Coolers. IMPORTANT I own a Kaden KC or KL Series or cooler - Why does the unit dump water periodically during operation? Kaden KC & KL Series coolers use the “Running Refresh” method for tank water quality control. This “Running Refresh”...
  • Page 19 Should water be coming out of my evaporative cooler during operation? Kaden KC & KL Series models will complete a flush service approximately every 20 cycles of the pumps operation. This means you will see the unit dump the water out of the overflow pipe.
  • Page 20: Warranty

    To be eligible for the extended two year warranty option you must: Extended Warranty • Register your Kaden product online at www.metalflex.com.au/kaden within the first 12 months of the Option product being installed, and • In the fourth year, the service must be performed by Rinnai or its appointed nominee.
  • Page 21 Rinnai will determine in its sole discretion, which classification the Product fits into and the corresponding Warranty that shall apply� 2�2 An Authorised Service Representative will repair or replace, at its option, the Product or any part of the Product that its examination shows to be defective. The repair or replacement shall be performed during Normal Business Hours by an Authorised Service Representative�...
  • Page 22 Kaden Owner’s Guide Evaporative Air Coolers LIMITATIONS 5�1 Product fitness for purpose and overall system design, sizing and application are not the responsibility of Rinnai. This includes but is not limited to the heat load calculations, airflow and system balancing.
  • Page 23 REGISTRATION / SERVICE To register your product please visit www.metalflex.com.au/kaden To book a service call please call 1300 4KADEN (1300 452 336) The PURCHASER WILL BE CHARGED for work done or a service call if:- • the problem is not covered by these Terms of Warranty;...
  • Page 24 B063651 Rev. A...
