Summary of Contents for Kaden KCI36

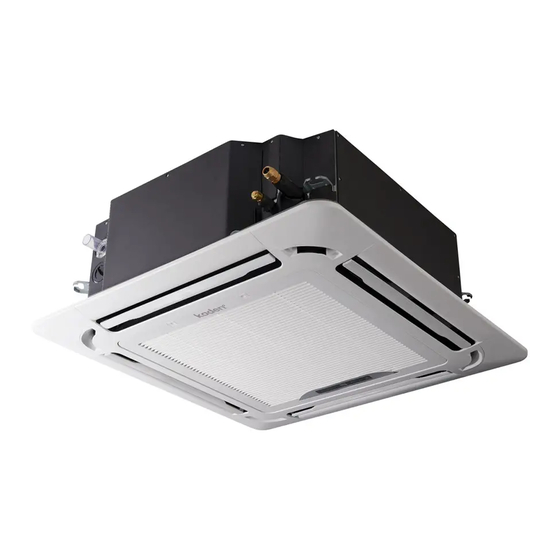

- Page 1 CASSETTE AIR CONDITIONER Installation Manual KCI Series KCI36 | KCI42 | KCI48...
- Page 2 Important note This appliance must be installed in accordance with: Manufacturer’s Installation Instructions Current AS/NZS 3000, AS/NZS 5149 Local Regulations and Municipal Building Codes including local OH&S requirements This appliance must be installed, maintained, and removed only by an Authorised Person. For continued safety of this appliance, it must be installed and maintained in accordance with the manufacturer’s Instructions.
-
Page 3: Table Of Contents
10. Test run Before test run Test run instructions 11. Error codes Important note Read this manual carefully before installing or operating your new air conditioning unit. Make sure to save this manual for future reference. Kaden Installation Manual | 3... -
Page 4: Safety Precautions
Children must not weight, or the installation is not done properly, the unit play with the appliance. Cleaning and user maintenance may drop and cause serious injury and damage. must not be made by children without supervision. 4 | Kaden Installation Manual... - Page 5 60335.2.40 to determine the safe minimum floor area for the installation. Make sure that the area has been made safe by having suitable ventilation and is free from ignition sources before charging or recovering the charge of R32. Kaden Installation Manual | 5...
- Page 6 6 | Kaden Installation Manual...
-
Page 7: Accessories
Outlet pipe sheath around the magnetic ring twice Magnetic ring – hitch it on the connective cable Varies by Drain outlet pipe between indoor unit model and outdoor unit after installation Ceiling hook Wired Controller Suspension bolt Kaden Installation Manual | 7... -
Page 8: Installation Summary
Install the indoor unit Install the drainpipe Install the outdoor unit Connect the signal wires Connect the power wires Connect the refrigerant pipes Pressure test and evacuation Install the front panel Perform a test run 8 | Kaden Installation Manual... -
Page 9: Unit Parts
6 Drain pipe 7 Connecting pipe 8 Air inlet 9 Air outlet Note on illustrations Illustrations in this manual are for explanatory purposes. The actual shape of your indoor unit may be slightly different. Kaden Installation Manual | 9... -
Page 10: Indoor Unit Installation
Front panel B (Ceiling hole) Ceiling board >2500mm Ground Distance from ceiling relative to height of indoor unit Type Model A (mm) H (mm) B (mm) KCI36 > 317 KCI42 > 317 KCI48 > 317 10 | Kaden Installation Manual... - Page 11 Use the included paper template to cut a rectangular hole in the ceiling, leaving at least 1000mm of space on all sides. The cut hole size should be 40mm larger than the body size. Be sure to mark the areas where ceiling hook holes will be drilled. KCI36-48 models ceiling hole size Refrigerant piping side...
- Page 12 Water level 4. Mount the indoor unit. You will need two people to lift and secure it. Insert suspension bolts into the unit’s hanging holes. Fasten them using the included washers and nuts. 12 | Kaden Installation Manual...
-
Page 13: Note For New Home Installation
In HEAT mode, the outdoor unit will discharge water. Ensure that the drain hose is placed in an appropriate area to avoid water damage and slippage. • Do not pull the drainpipe forcefully. This could disconnect it. Kaden Installation Manual | 13... -
Page 14: Note On Drainpipe Installation
300mm. Incorrect installation could cause water to flow back into the unit and flood. • To prevent air bubbles, keep the drain hose level or slightly sloping up before the riser. 14 | Kaden Installation Manual... -
Page 15: Outdoor Unit Installation
✕ Near animals or plants that will be harmed by hot air discharge. ✕ Near any source of combustible gas. ✕ In a location that is exposed to large amounts of dust. ✕ In a location exposed to a excessive amounts of salty air. Kaden Installation Manual | 15... - Page 16 In cold climates, make sure that the drain hose is as vertical as possible to ensure swift water drainage. If water drains too slowly, it can freeze in the hose and fl ood the unit. 16 | Kaden Installation Manual...
- Page 17 L ≤ 1/2H 250mm or more 1/2H < L ≤ H 300mm or more L > H Can not be installed 3000mm or more 250mm or more 250mm 600mm or more or more 1500 mm or more Kaden Installation Manual | 17...
-
Page 18: Refrigerant Piping Connection
Oil trap Oil trap 10000mm 6000mm Outdoor unit Indoor unit 10000mm 6000mm Liquid Liquid piping piping The outdoor unit is installed higher than the indoor unit The indoor unit is installed higher than the outdoor unit 18 | Kaden Installation Manual... -
Page 19: Connection Instructions - Refrigerant Piping
This will drastically reduce the heating efficiency of the unit. 7. Turn the handle of the flaring tool clockwise until the pipe is fully flared. Flare the pipe in accordance with the dimensions. Kaden Installation Manual | 19... - Page 20 3. Tighten the flare nut as tightly as possible by hand. 4. Using a spanner, grip the nut on the unit tubing. 5. While firmly gripping the nut, use a torque wrench to tighten the flare nut according to the torque values in above table. 20 | Kaden Installation Manual...
-
Page 21: Note On Minimum Bend Radius
Check to make sure there is no refrigerant leak after completing the installation work. If there is a refrigerant leak, ventilate the area immediately and evacuate the system (refer to the Leak Testing and Evacuation section of this manual). Kaden Installation Manual | 21... -
Page 22: Wiring
Indoor & outdoor connective wires (purchased separately) Circuit Breaker Recommendations MODEL KCI36 KCI42 KCI48 Power Phase 1 Phase 1 Phase 1 Phase Volt 208 – 240V 208 – 240V 208 – 240V Circuit breaker (A) 22 | Kaden Installation Manual... -
Page 23: Outdoor Unit Wiring
The cable specifications are based on the assumption that a Round crimp type metal or plastic conduit is used with no more than three cables terminal contained in a conduit and a voltage drop of 2%. Sleeve Kaden Installation Manual | 23... - Page 24 Wires should be bound with cable ties and fixed to the internal side of the right chassis panel as shown in the figure below. 24 | Kaden Installation Manual...
-
Page 25: Indoor Unit Wiring
Wire outlet Control box Wiring diagram Connective wiring diagram Magnetic ring (if supplied and packed with the accessories) Pass the cable through the hole of the magnetic ring to fix it on the cable S1 S2 Kaden Installation Manual | 25... -
Page 26: Leak Testing And Evacuation
9. If the vacuum does not settle, repeat from Step 1 of Leak, pressure test and evacuations. If there is no change in system vacuum, unscrew the cap from the packed valve (high pressure valve). Low pressure Vacuum valve pump 26 | Kaden Installation Manual... -
Page 27: Preparations And Precautions
6.35 ( 0.25") 9.52 ( 0.375") Ø Ø Ø Ø Total Pipe length - Total Pipe length - Standard pipe length x Standard pipe length x 12g/m 24g/m CAUTION – DO NOT MIX REFRIGERANT TYPES. Kaden Installation Manual | 27... -
Page 28: Panel Installation
3. Attach the side of the front grille to the panel. 4. Connect the display panel cable to the corresponding wire on the main body. 5. Close the front grille. 6. Fasten the installation covers at all four corners by pushing them inwards. 28 | Kaden Installation Manual... - Page 29 If the unit is not hung correctly and a gap exists, the unit’s height must be adjusted to ensure proper function. The unit’s height can be adjusted by loosening the upper nut, and adjusting the lower nut. Kaden Installation Manual | 29...
-
Page 30: Test Run
Double check to see if the room temperature is being registered correctly. d. Ensure the indicators on the remote control and the display panel on the indoor unit work properly. e. Ensure the manual buttons on the indoor unit works properly. 30 | Kaden Installation Manual... -
Page 31: Error Codes
The design and specifications are subject to change without prior notice for product improvement. Consult with the sales agency or manufacturer for details. Any updates to the manual will be uploaded to the service website, please check for the latest version. Kaden Installation Manual | 31... - Page 32 kadenair.com.au...
