AWNINGS
POWER AWNING PRO
Model# 3316518, 3316519, 3317114, 3317115

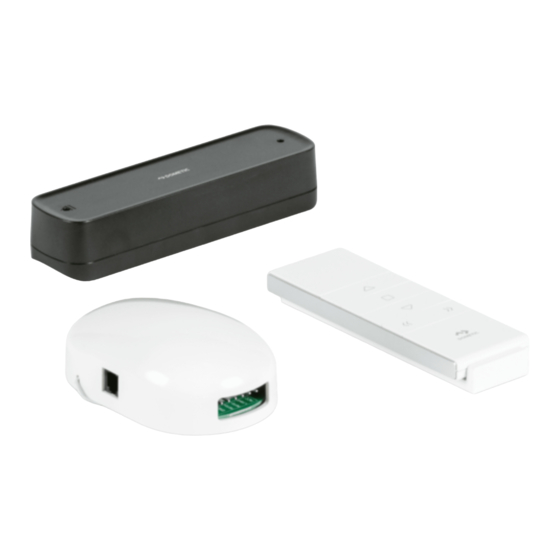

Wireless Remote Control/Receiver & Wind Sensor
EN
Installation and Operation Manual . . . . . . . . . . . . . . . . . . . . . . 2
WARNING
EN
REVISION D Form No. 3317118.000 05/22 | ©2022 Dometic Corporation
Cancer and Reproductive Harm
www.P65Warnings.ca.gov
[RÉVISION D] Document no 3317119.000 05/22 | ©2022 Dometic Corporation
FR

Advertisement

Table of Contents
loading

Related Manuals for Dometic POWER AWNING PRO

Summary of Contents for Dometic POWER AWNING PRO

  • Page 1 Installation and Operation Manual ..... . 2 WARNING REVISION D Form No. 3317118.000 05/22 | ©2022 Dometic Corporation Cancer and Reproductive Harm www.P65Warnings.ca.gov...

  • Page 2: Table Of Contents

    Using the Remote Control ....13 date product information, please visit www.dometic.com. 12 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . 13 Contents 13 Disposal .

  • Page 3: Supplemental Directives

    WARNING vehicle (RV). Indicates a hazardous situation that, if not avoided, could result in death or serious injury. • Use only Dometic replacement parts and components that are specifically approved for use CAUTION with the appliance. Indicates a hazardous situation that, if not avoided, •...

  • Page 4: Intended Use

    Quantity 2 Intended Use 12 V Wireless Receiver 3317114.201 Receiver Wire Harness The Power Awning Pro system (hereinafter referred Remote Control with Wall 3316518.201 to as “unit” or “product”) works with compatible RV Holder and Screws power awnings to offer remote control of the awning’s Dry Contact Power Switch opening and closing.

  • Page 5: Components

    Wireless Remote Control/Receiver & Wind Sensor Wiring Diagrams 3 .2 Components 4 .3 Receiver Control Range For the awning remote control to communicate with For the awning remote control to communicate with the wireless receiver, it must be within the specified the wireless receiver, it must be within the specified transmission distance.
  • Page 6 Wiring Diagrams Wireless Remote Control/Receiver & Wind Sensor 3 System Wiring Diagram 15 A Fused Awning Switch 1,2,3 Power Supply LED Strip RJ 11 Cable Awning Motor Receiver Ignition (Interlock) LED Switch Retract On/Off Switch Extend 15 A Inline Fuse MOM-OFF-MOM Optional Installer-Supplied...

  • Page 7: Preinstallation

    Wireless Remote Control/Receiver & Wind Sensor Preinstallation 6 Preinstallation This section describes actions to take before installation. NOTICE: Failure to obey the following directions could result in damage to the unit or to property. 1. Install a 15 A fuse (installer-supplied) at the fuse panel for the positive (+) 12 VDC power supply ( Red wire) leading to the product.
  • Page 8 Installation Wireless Remote Control/Receiver & Wind Sensor 7 .2 .2 Installing the Wind Sensor for the 2. Remove the wind sensor cover. 9100 3. Continue with either “Installing the Wind Sensor for the 9200 and 9500” on page 8 or “Installing the This section describes how to complete a wind sensor Wind Sensor for the 9100”...

  • Page 9: Pairing The Remote Control

    Wireless Remote Control/Receiver & Wind Sensor Pairing the Remote Control 7 .2 .3 Completing the Wind Sensor 8 .1 Pairing the 9200 and 9500 Installation for all Awnings Remote Controls 1. Re-install the wind sensor onto the wind sensor base. This section describes how to pair the 9200 and 9500 awning series only.

  • Page 10: Pairing The 9100 Remote Control

    Pairing the Wind Sensor (If Applicable) Wireless Remote Control/Receiver & Wind Sensor 8 .2 Pairing the 9100 Remote Control Audible Awning Step Operation Alert Movement This section describes how to pair the 9100 awning None None series only. Complete each pairing step within four seconds of the previous step to keep the receiver in pairing mode.

  • Page 11: Control

    Wireless Remote Control/Receiver & Wind Sensor Pairing the Wind Sensor (If Applicable) NOTICE: Do not hang any items from, or block the Audible Awning Step Operation travel of, the hardware arms or awning when the wind Alert Movement sensor is installed. None This section describes how to pair the wind sensor to the receiver and to the remote control.

  • Page 12: Adjusting The Wind Sensor Sensitivity

    Vehicle Ignition Lock-out Wireless Remote Control/Receiver & Wind Sensor 10 Vehicle Ignition Lock-out 9 .2 Adjusting the Wind Sensor Sensitivity When a motorized RV’s ignition is in the ACC, ON, or START position, a functioning receiver will automatically Once programmed, the sensitivity can be adjusted at retract/lock/cut power to the awning.

  • Page 13: Operation

    Wireless Remote Control/Receiver & Wind Sensor Operation 11 Operation 12 Troubleshooting This section describes how to operate and adjust the Recommended Problem Possible Cause awning using the remote control. Solution The remote The receiver Restart the pairing control is unable has reset before process and 11 .1 Using the Remote Control...

  • Page 14: Disposal
