Page 1: User Manual
PoC & Bi-Directional IR Support 4K UHD 70m @ 1080p 40m @ 4K2K (60Hz 4:2:0) SY Electronics Ltd., 7 Worrall Street, Salford, Greater Manchester, M5 4TH Tel: +44 (0)161 868 3450 – Fax: +44 (0)161 868 3459 Web: sy.uk... -
Page 2: Panel Connectors

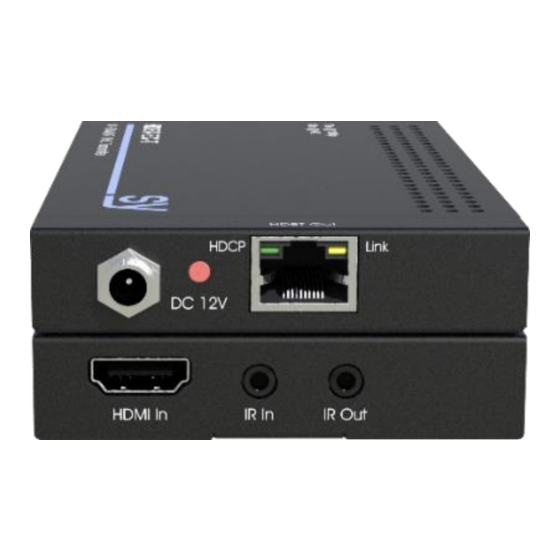

The SY-HDBT-EC Set is an HDBaseT Extender set consisting of a transmitter (TX) and a receiver (RX) pair. It broadcasts a single HDMI signal via cat5e/cat6/cat6a cable up to 70m @ 1080p or 40m @ 4K with PoC. IR pass-through allows control of any IR device from either the transmitter or the receiver location. -
Page 3: Specification
IR Control 28-60kHz carrier frequency for any control protocol Power Supply 12V DC @ 1A Power Consumption SY-HDBT-EC Set: 9 W max Operating Temperature 0 – 45 °C non condensing Dimensions (W x H x D) 120 x 16 x 74 mm... - Page 4 Only one 12V DC power supply is required and may be connected to either the transmitter to the receiver. Do NOT connect to any other network or any other HDBaseT extender type. To do so may damage the device beyond repair. sy.uk V1.0...
-
Page 5: Safety Instructions
3. This product has a two year standard warranty, beginning from the date of purchase as stated on the sales invoice. For full details please refer to our Terms and Conditions. 4. SY Product warranty is automatically void under any of the following conditions: The product is already outside of its warranty period ...
