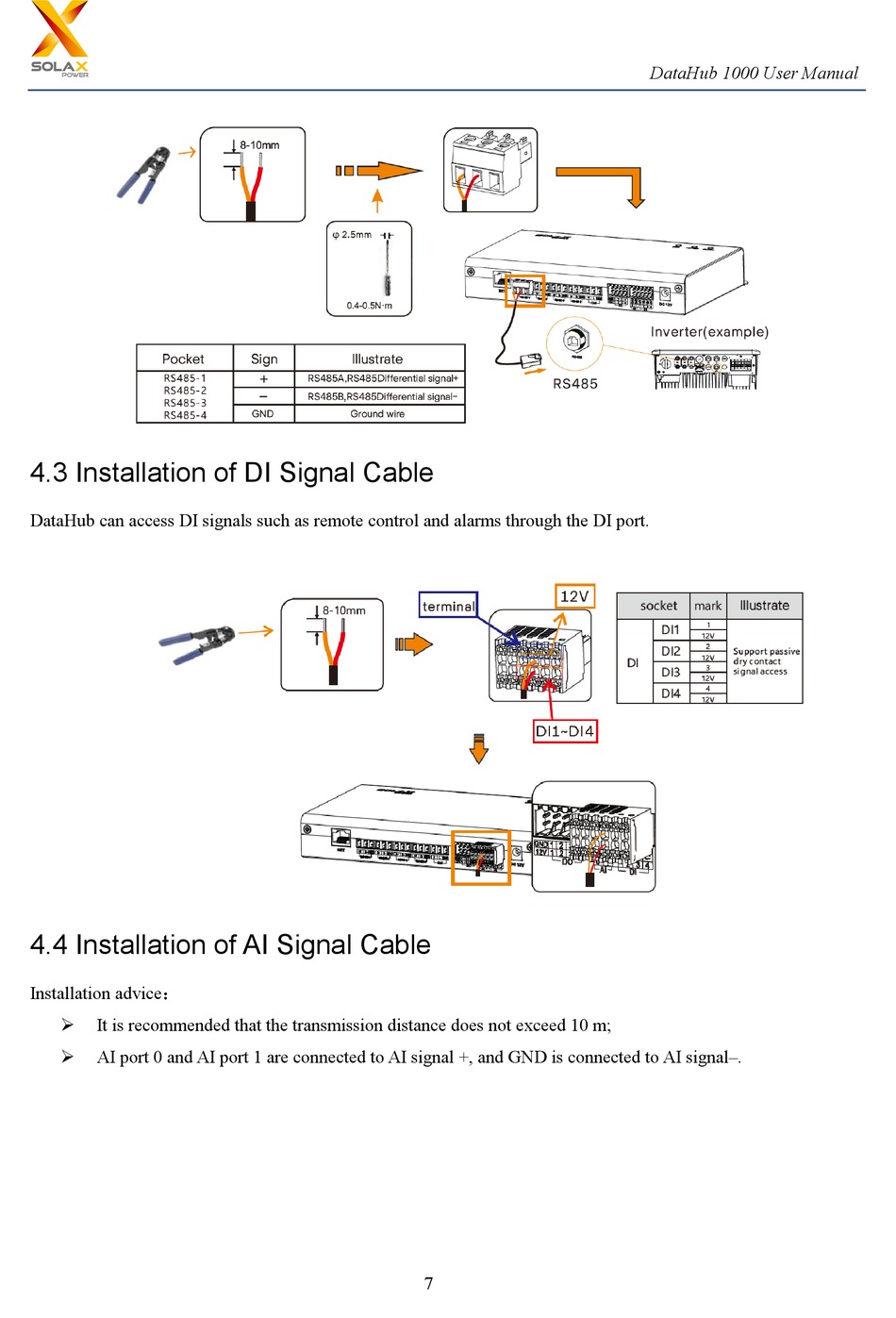

4.3 Installation of DI Signal Cable
DataHub can access DI signals such as remote control and alarms through the DI port.
4.4 Installation of AI Signal Cable
Installation advice：
It is recommended that the transmission distance does not exceed 10 m;
AI port 0 and AI port 1 are connected to AI signal +, and GND is connected to AI signal–.
7
DataHub 1000 User Manual
