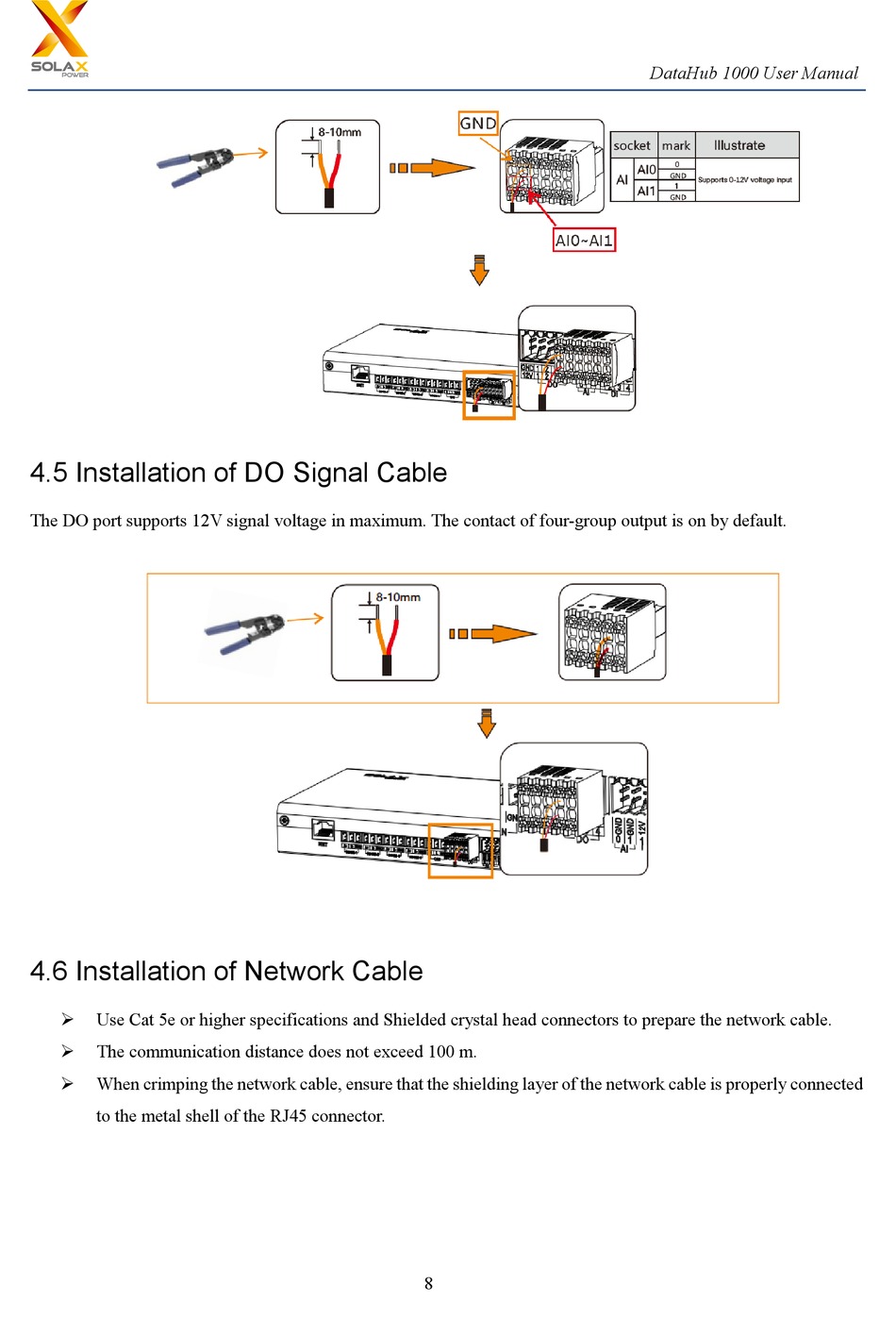

4.5 Installation of DO Signal Cable
The DO port supports 12V signal voltage in maximum. The contact of four-group output is on by default.
4.6 Installation of Network Cable
Use Cat 5e or higher specifications and Shielded crystal head connectors to prepare the network cable.
The communication distance does not exceed 100 m.
When crimping the network cable, ensure that the shielding layer of the network cable is properly connected
to the metal shell of the RJ45 connector.
8
DataHub 1000 User Manual
