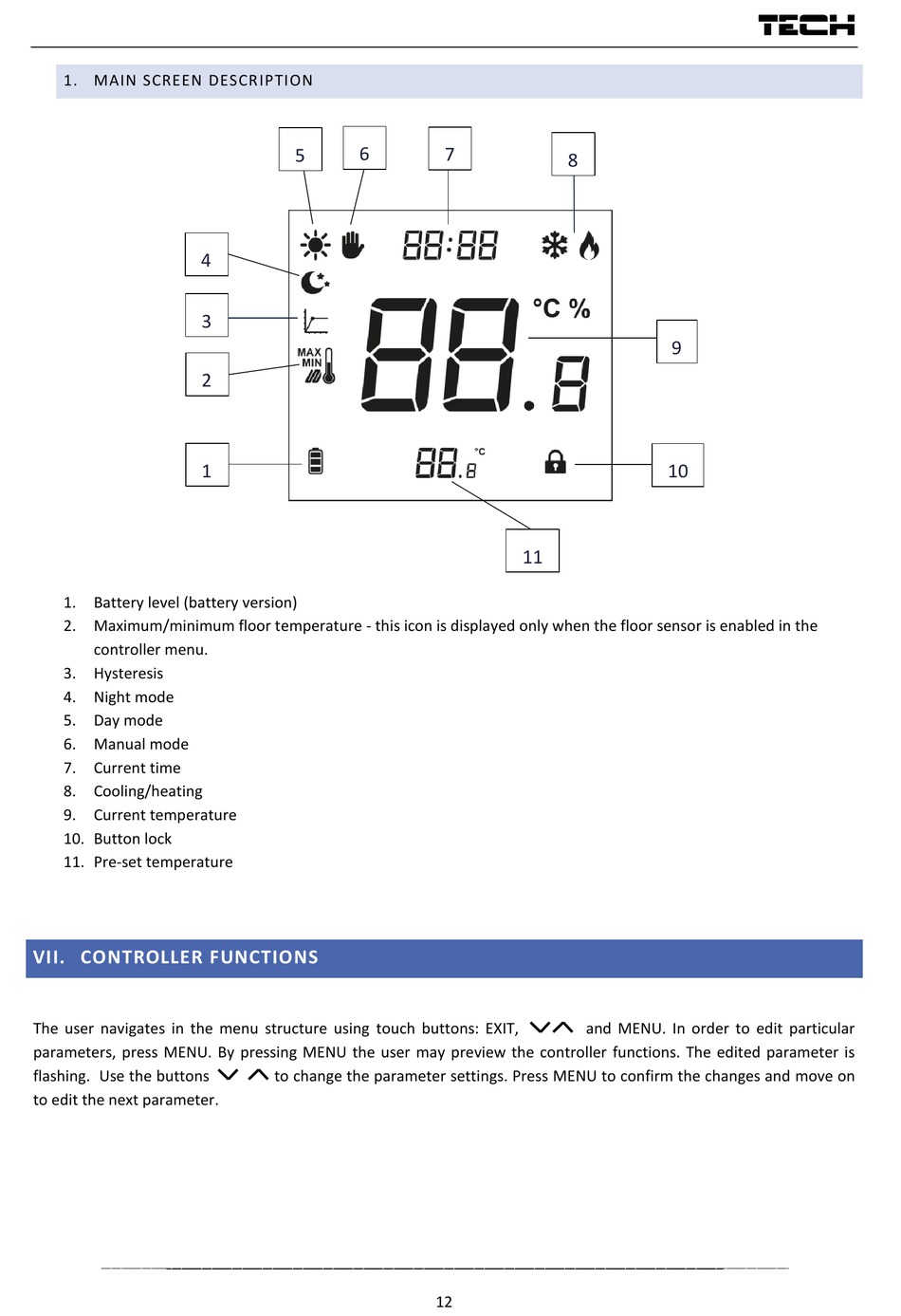

1. MAIN SCREEN DESCR IPTION
4
3
2
1
1. Battery level (battery version)
2. Maximum/minimum floor temperature - this icon is displayed only when the floor sensor is enabled in the
controller menu.
3. Hysteresis
4. Night mode
5. Day mode
6. Manual mode
7. Current time
8. Cooling/heating
9. Current temperature
10. Button lock
11. Pre-set temperature
VII. CONTROLLER FUNCTIONS
The user navigates in the menu structure using touch buttons: EXIT,
parameters, press MENU. By pressing MENU the user may preview the controller functions. The edited parameter is
flashing. Use the buttons
to edit the next parameter.
6
5
to change the parameter settings. Press MENU to confirm the changes and move on
12
7
8
11
and MENU. In order to edit particular
