Interface Panel - RGBlink mini Quick Start Manual

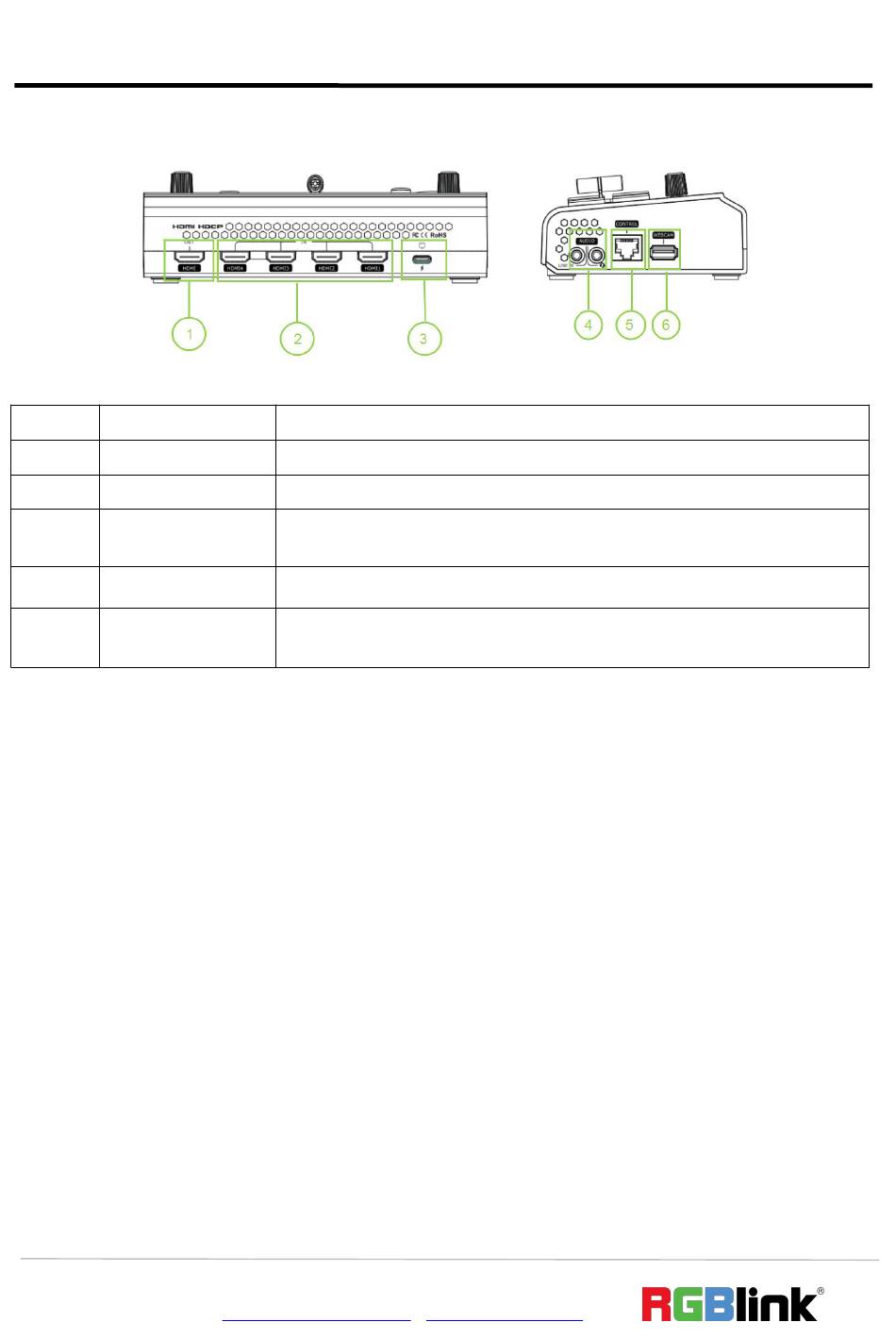

Interface Panel

1 HDMI OUT
2 HDMI IN
3 Type-C
4 AUDIO IN/OUT
5 LAN
6 USB
© Xiamen RGBlink Science & Technology Co., Ltd.
Ph: +86 592 5771197 |
1 HDMI output port, connect to display to show multi-view
4 HDMI inputs, connect to input source from HD camera or PC
1 type-C power interface
AUDIO In, analog audio input port, connect to microphone with power
AUDIO OUT, analog audio output port, connect to loudspeaker
Communication port to link dedicated software for control
USB 3.0 output, capture signal via third party streaming software and push
to live broadcasting websites
