RGBlink mini Quick Start Manual page 15

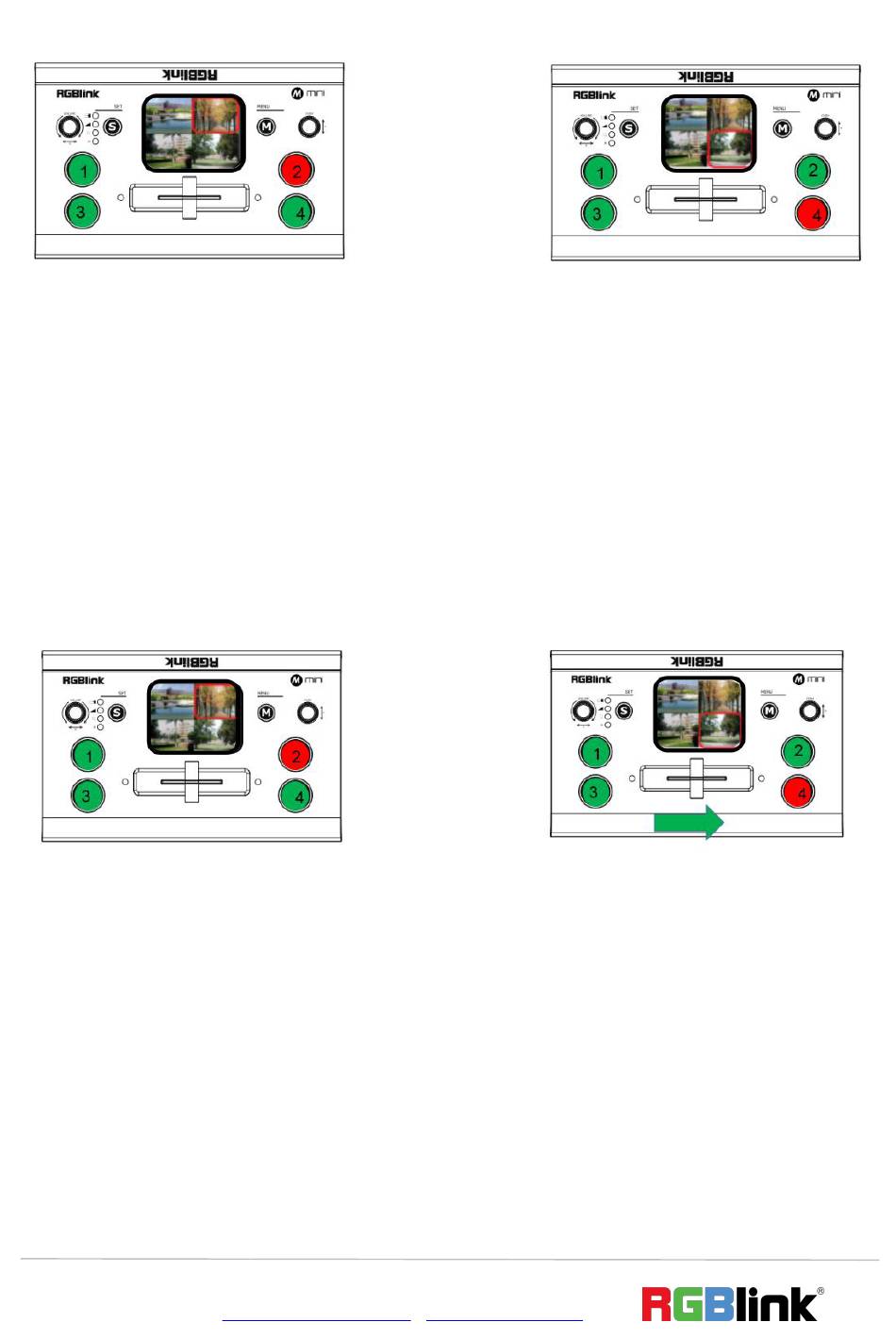

In FAST + TIME Mode:
Press a source button (1, 2, 3, or 4) that is green.
Selected source will be switched to the output with the set fade TIME and using the MIX
transition selected, with the pressed source button becoming red.
In T-BAR Mode:
Press a green button to set the source as the PVW, the source button will blink green.
Slide the T-BAR to switch/mix from the current PGM source to the PVW source.Any MIX
transition effect will be applied as the T-BAR is moved. Once the T-BAR has been fully transitioned, the indicator
lights on sources buttons that are PGM and PVW will be swapped.
1.Press a source button (1, 2, 3, or 4)
that is green.
Note: Source selection is locked when T-BAR is in transition (not entirely docked at a left or right position)
© Xiamen RGBlink Science & Technology Co., Ltd.
Ph: +86 592 5771197 |
support@rgblink.com
2.Slide T-Bar from left end to right end
or reversely.
|
www.rgblink.com
14 / 22
