RGBlink mini Quick Start Manual page 18

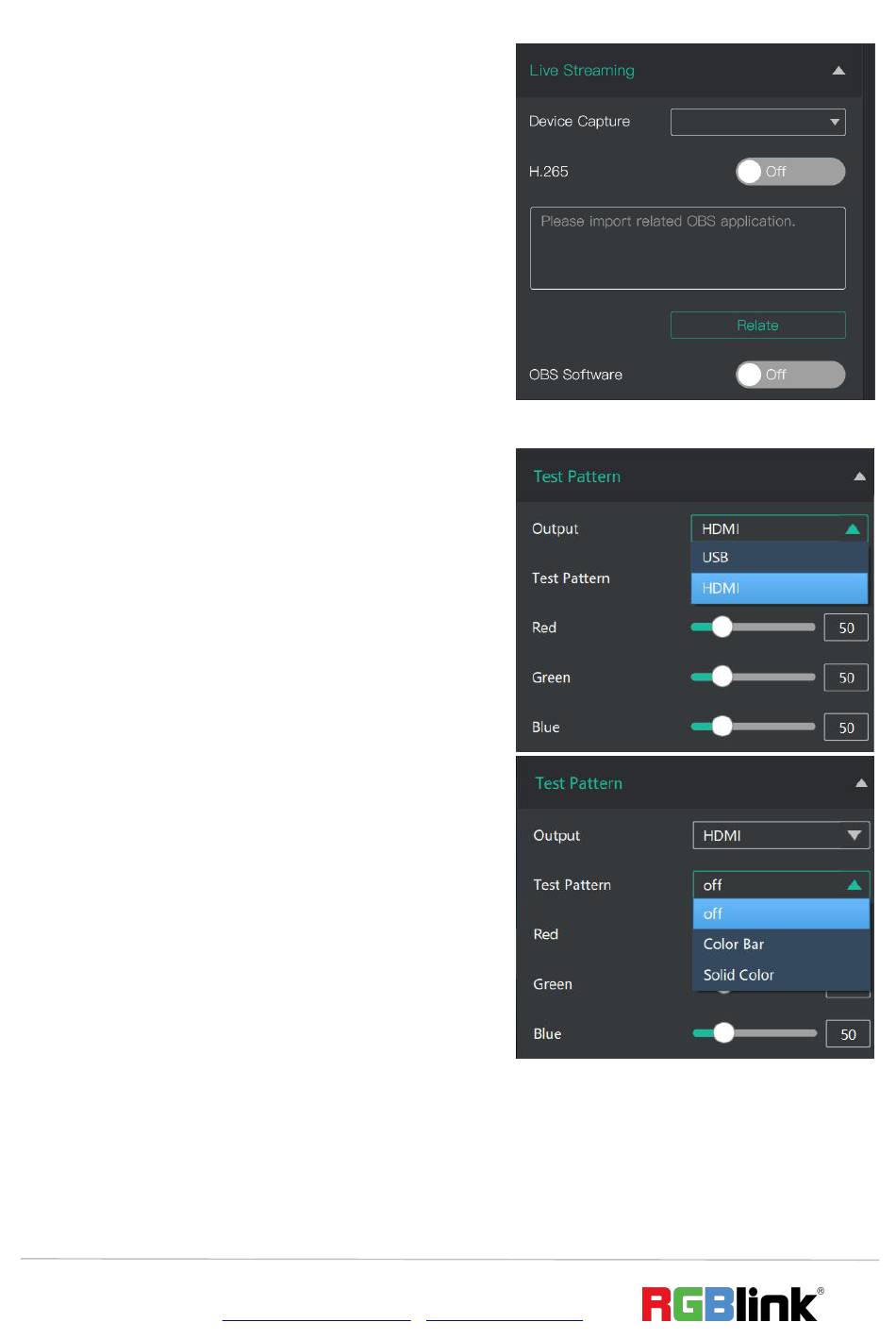

Live Streaming
Device Capture:choose RGBlink USB3.0 Capture
H.265: When it is ON, users can watch 4 inputs
streaming back on XPOSE software.
Import the related OBS application if users need
to do live streaming, click Relate to confirm.
OBS: slide ON to start streaming.
Note: H.265 and OBS cannot work at the same
time. User choose either H.265 or OBS, not both.
Test Pattern
To facilitate troubleshooting, XPOSE mini provides a
test signal output, which can be used to troubleshoot
the USB or HDMI output interface when there is no
output signal from USB or HDMI.
1.Select the USB/HDMI interface to be tested.
2. Select the mode of the test signal
3.Adjust color
