PIP

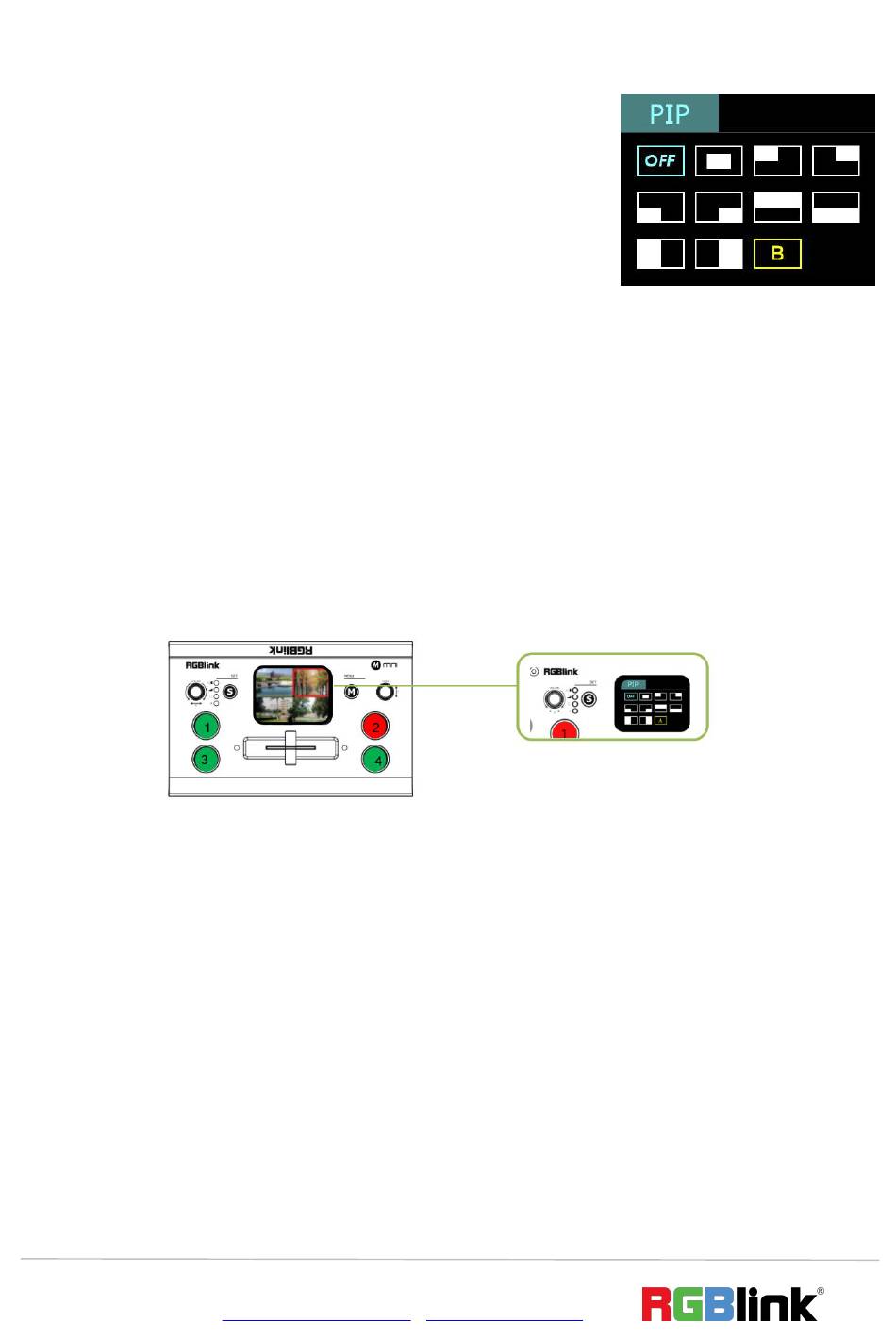

Push S button three times to enter <PIP> menu and select PIP mode(9
PIP modes)
The steps are as follows：
1.Push "S" button, enter PIP setting page.
2.Rotate「Y」button to select layout you want and confirm by Pressing.
3.Select the signal you want for background. (When the letter is A, it
means background signal)
4.Press「X」button to select signal for PIP layer. (The A will change to B)
5.Finally, push the T-Bar and the content you've set will be taken to
PGM. (T-bar has to be totally left or right side to make sure the content
has been taken.)
How to Enter PIP Menu Quickly
"S" button has memory function.When the TFT screen returns to preview mode, press S button to directly enter
PIP menu if you use it last time. If you want to enter other menus, continue to press the "S" button.

Switch Source

When you access the four source buttons, the lights on the source buttons will appear in four states:
green constant: the signal is recognized, no action is being taken;
green flashing: the currently selected,signal is being edited;
red constant: the signal is currently on the main output;
unlit: the source is not accessed or the resolution of the accessed source is not supported by the mini
