3 Components

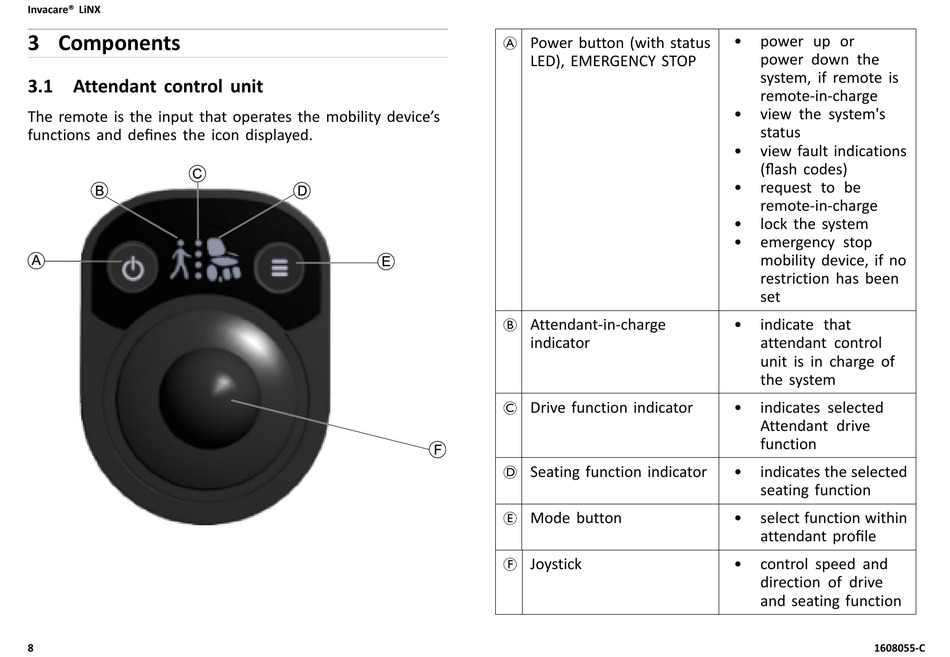

3.1 Attendant control unit

The remote is the input that operates the mobility device's
functions and defines the icon displayed.
8
A Power button (with status
LED), EMERGENCY STOP
B Attendant-in-charge
indicator
C Drive function indicator
D Seating function indicator
E Mode button
F Joystick
• power up or
power down the
system, if remote is
remote-in-charge
• view the system's
status
• view fault indications
(flash codes)
• request to be
remote-in-charge
• lock the system
• emergency stop
mobility device, if no
restriction has been
set
• indicate that
attendant control
unit is in charge of
the system
• indicates selected
Attendant drive
function
• indicates the selected
seating function
• select function within
attendant profile
• control speed and
direction of drive
and seating function
