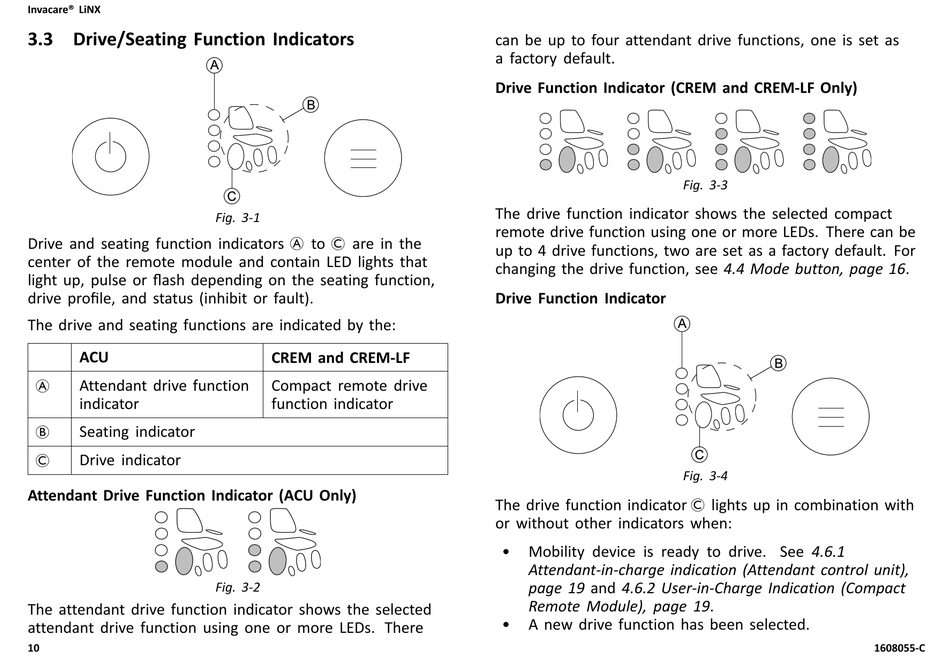

3.3 Drive/Seating Function Indicators

Drive and seating function indicators A to C are in the
center of the remote module and contain LED lights that
light up, pulse or flash depending on the seating function,
drive profile, and status (inhibit or fault).
The drive and seating functions are indicated by the:
ACU
Attendant drive function
A
indicator
Seating indicator
B
Drive indicator
C
Attendant Drive Function Indicator (ACU Only)
The attendant drive function indicator shows the selected
attendant drive function using one or more LEDs. There
10
Fig. 3-1
CREM and CREM-LF
Compact remote drive
function indicator
Fig. 3-2
can be up to four attendant drive functions, one is set as
a factory default.
Drive Function Indicator (CREM and CREM-LF Only)
The drive function indicator shows the selected compact
remote drive function using one or more LEDs. There can be
up to 4 drive functions, two are set as a factory default. For
changing the drive function, see 4.4 Mode button, page 16.
Drive Function Indicator
The drive function indicator C lights up in combination with
or without other indicators when:
• Mobility device is ready to drive. See 4.6.1
Attendant-in-charge indication (Attendant control unit),
page 19 and 4.6.2 User-in-Charge Indication (Compact
Remote Module), page 19.
• A new drive function has been selected.
Fig. 3-3
Fig. 3-4
