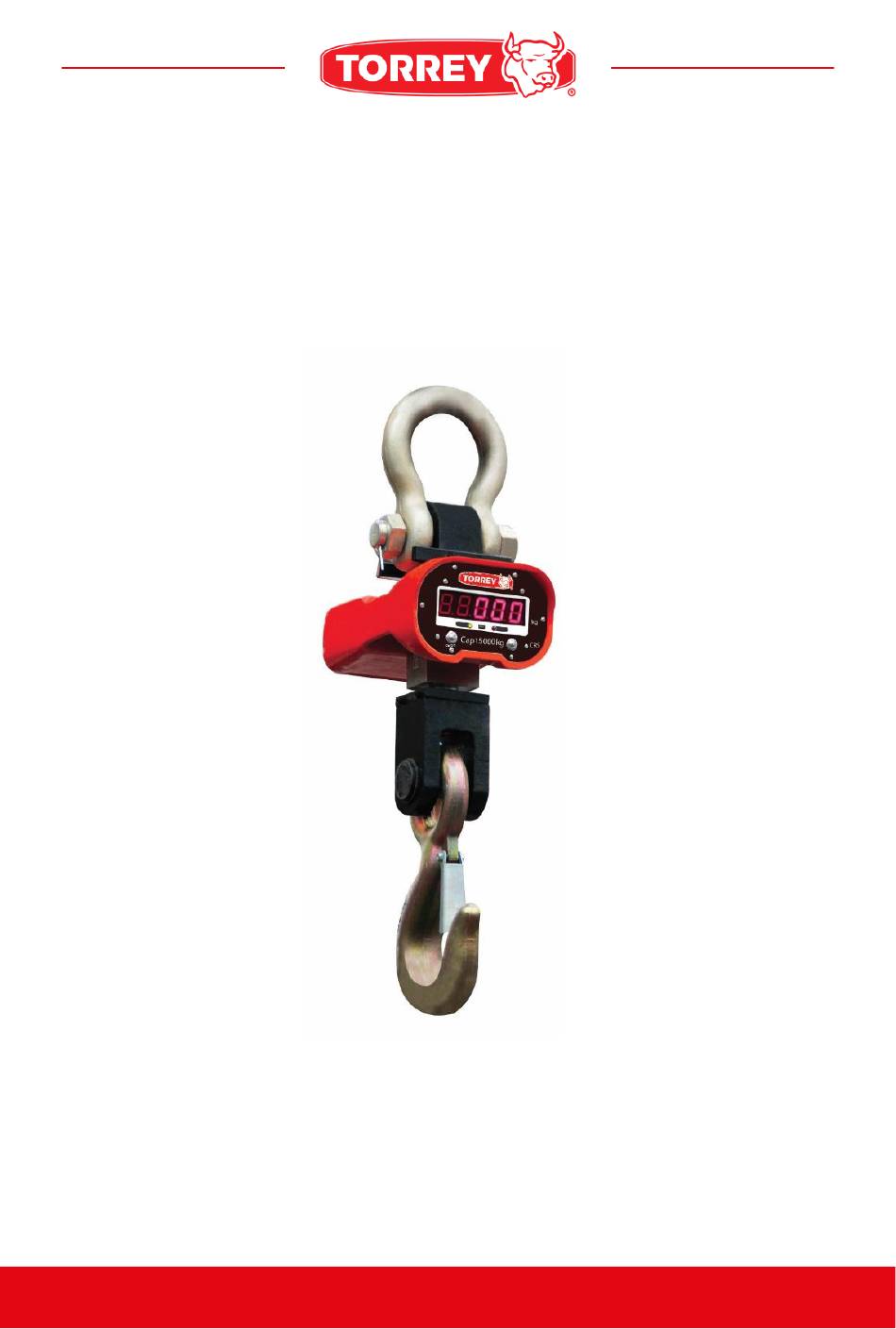

- Page 1 USER'S MANUAL CRANE SCALE SERIE CRS BEFORE OPERATING YOUR SCALE, READ THIS MANUAL COMPLETELY Rev 0...
-
Page 2: Table Of Contents
INDEX INTRODUCTION IMPORTANT WARNINGS SCALE PARTS TECHNICAL SPECIFICATIONS INCLUDED ACCESSORIES DISPLAY (NAME AND LOCATION OF PARTS) SCALE OPERATION WITHOUT REMOTE CONTROL OPERATION USE OF ZERO DISPLAY MESSAGES SCALE OPERATION WITH REMOTE CONTROL USE OF TARE FIXED WEIGHT ADDITION OF WEIGHTS [M+] KEY HOW TO READ THE WEIGHTS STORED IN MEMORY HOW TO CLEAR MEMORIES DISPLAY LIGHT INTENSITY... -
Page 3: Introduction
CRANE SCALE INTRODUCTION We appreciate that you have chosen this product we assure you that you will get the maximum satisfaction of the new acquisition for your business. We suggest you to read carefully this manual and make sure to keep it at hand for later consultations. IMPORTANT WARNINGS 1.- Do not open your scale on your own, your warranty will be canceled. -
Page 4: Scale Parts

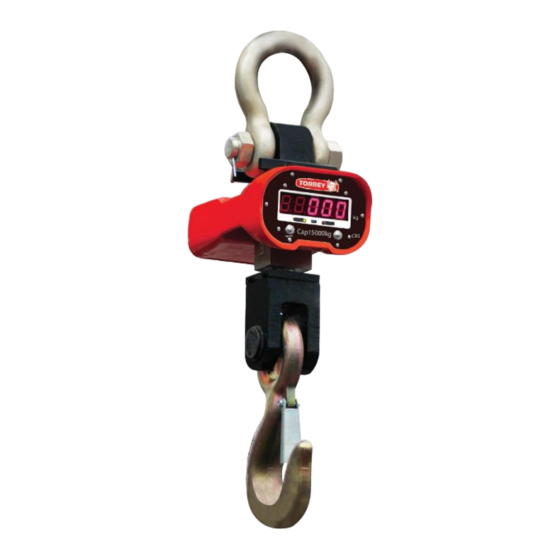

SCALE PARTS Shackle Hook Display Battery 36 cm 14 cm 90 cm 7 cm 23 cm 36 cm Model: CRS... -
Page 5: Technical Specifications
CRANE SCALE INCLUDED ACCESSORIES 1.- POTENZA ADAPTER ac/dc 9V 60 Hz 1,5 A 2.- REMOTE CONTROL. 3.- 2 BATTERIES AA (FOR THE REMOTE CONTROL). TECHNICAL SPECIFICATIONS MODELO CRS 5000 MAX. 5000kg/10000lb MIN. DIV 2kg / 5lb TEMP OPER -10ºC A 40 ºC (14ºF A 104 ºF ) BATTERY 6V/10AH... -
Page 6: Display (Name And Location Of Parts)
DISPLAY (NAME AND LOCATION OF PARTS) 1.- Hold indicator .- Indicate that the weight was fixed by the user. 2.- Stable indicator.- Indicate that the weight is stable 3.- ON/OFF key.- Turns on and off the Scale 4.- Tare key.- Tare a weight in the scale 5.- Tare indicator.- Indicate that the tare function is active 6.- Zero key.- Reference the scale to zero 7.- Zero indicator.- Indicate that the scale is stable on zero... -
Page 7: Scale Operation Without Remote Control
CRANE SCALE SCALE OPERATION WITHOUT REMOTE CONTROL 1.- To turn on or turn off the scale, press the [on/off] key until you hear the beeper the key must be press around 10 Seconds in order to turn off the scale. When you turn on the scale, it will show [88888] then [------] and the actual voltage of the battery [u 6.**] Once that the scales is ready to be use. -
Page 8: Use Of Zero
USE OF ZERO It is possible for the scale to show a number in the display without having any product on the scale, due to voltage variations, rough handling, or some other factor, you will reference the scale to zero. OPERATION DISPLAY PRESS THE... -
Page 9: Scale Operation With Remote Control
CRANE SCALE SCALE OPERATION WITH REMOTE CONTROL TURN OFF THE SCALE Press the [off] key on the scale, for 10 seconds in order to turn off the scale, the display will show [off ] Note: the scale can’t be turn on with the remote control USE OF ZERO The scale could show a number in the display without having any product on the scale, due to voltage variations, rough handling, or... -
Page 10: Use Of Tare
USE OF TARE - When you wish to weight a product in a container and you do not want to consider the container's weight during the operation, OPERATION DISPLAY PRESS THE [ 0] Note: after hang the container in the scale press the [TARE] KEY [tare] key, and the display will show [ 0] at the same time the tare indicator will “turn on”. -
Page 11: Fixed Weight
CRANE SCALE FIXED WEIGHT The scale has a fixed weight function to fix the actual weight in the display. This function is normally use when you want to register a weight that is oscillating. PRESS THE In the hold indicator will appear a red light blinking indicating [HOLD] KEY that the weight has been fixed. -
Page 12: How To Read The Weights Stored In Memory
HOW TO READ THE WEIGHTS STORED IN MEMORY OPERATION DISPLAY DESCRIPTION PRESS [TARE] [No. 1] Shows the position of memory where is the weight Stored. Beginning with the last weight done PRESS [TARE] [*****] Shows the weight of memory PRESS [TARE] [No. -
Page 13: Battery Verification
CRANE SCALE BATTERY VERIFICATION 1.- When you press the [on/off] key of the scale, the display will show [u 6.** ] Indicating the actual battery voltage. 2.- When you press the [off ] key of the control for 10sec., The display will show [u 6.** ]Indicating the actual battery voltage. -
Page 14: Maintenance And Cleaning
MAINTENANCE AND CLEANING One of the greatest advantages of purchasing this scale model is that it requires minimum maintenance and it is very simple to keep it in favorable conditions. 1.- Do not use a flow of water to clean your scale. Use a damp rag and clean each component. -
Page 15: Troubleshooting Guide
CRANE SCALE TROUBLESHOOTING GUIDE Before you call for service to your authorized distributor. First check this manual to avoid a misunderstanding of the operation and use of the functions. If everything is correct, try to correct the problem according to the following list. If you do not find the problem, contact your authorized distributor. - Page 16 ELECTRONIC SCALE www.torrey.net...
