- Page 1 ELECTRONIC SCALE SERIES OWNER’S MANUAL REVISION: 1.5 IMPORTANT: BEFORE OPERATING THIS SCALE, PLEASE READ THIS MANUAL THROUGHLY. COD. 13100174...
-
Page 2: Table Of Contents
INDEX IMPORTANT WARNINGS INTRODUCTION INSTRUCTIONS FOR INSTALLATION NAME AND LOCATION OF IMPORTANT PARTS KEYBOARD GENERAL VIEW FINDER (LCD DISPLAY) OPERATIONS DESCRIPTION HOW TO WEIGHT A PRODUCT HOW TO ENTER PRICES HOW TO CLEAR WRONG PRICES USE OF THE “FIXED PRICE” USE OF THE “TARE”... - Page 3 WARNING !!DO NOT OPEN ¡¡ RISK OF SHORT CIRCUIT CAUTION: TO REDUCE THE RISK OF SHORT CIRCUIT IN YOUR SCALE, DO NOT REMOVE THE COVER OR SUBSTITUTE ANY OF THE PARTS FOR OTHERS THAT ARE NOT ORIGINAL. ONLY AUTHORIZED DISTRIBUTOR IMPORTANT NOTE THIS SCALE MEETS THE REQUIERMENTS ESTABLISHED BY THE MEXICAN ( NOM-10-1993-SCFI ) AND INTERNATIONAL ( NTEP ) REGULATION.
-
Page 4: Important Warnings
I M P O R T A N T W A R N I N G S 1.- IN CASE YOU HAVE A PROBLEM 2.- DO NOT OPEN THE SCALE ON 3.-”NEVER” PRESS THE KEYBOARD WITH THE SCALE, FIRST READ THE YOUR OWN. -
Page 5: Introduction
I N T R O D U C T I O N DEAR CUSTOMER: We appreciate that you have chosen this product and we assure you that you will get the maximum satisfaction of the new acquisition for your bussines the scale has been designed to give you a great deal saving time and money, avoiding losses by human mistakes of interpretation and calculation, offering you more fluency and security in your commercial tasks. -
Page 6: Name And Location Of Important Parts

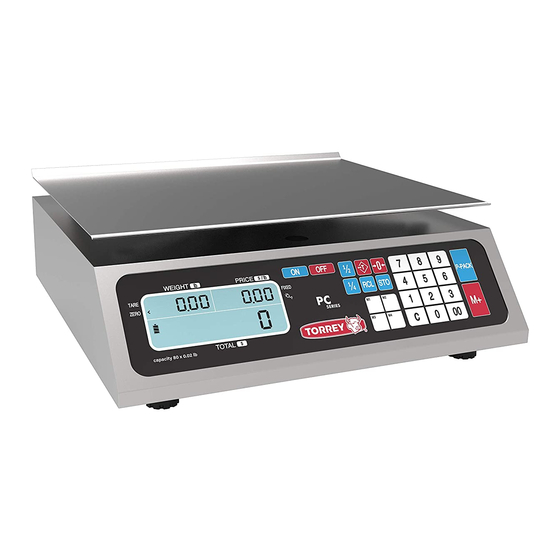

NAME AND LOCATION OF IMPORTANT PARTS CABINET: Manufactured in stainless steel and resistant to corrosion and strokes. PLATE: Also manufactured in stainless steel with the border bent and rounded. Manufactured in aluminum that provides resistance to corrosion. PLATE HOLDER: LEVEL BUBBLE: Inserted in the cabinet. -
Page 7: Keyboard
KEYBOARD capacity 40 x 0.005 lb 1 lb RCL STO P-PACK P-PACK SERIES ½ ¼ 0 00 PRICE /lb TOTAL $ Key used to turn on the scale. When this key is pressed the appliance turns off. This key is used to start with zero on the weight. This key is used to eliminate any containers weight that you do not wish to consider during a transaction (for example: boxes, bags, bottles, etc). -
Page 8: General View Finder (Lcd Display)
GENERAL VIEW FINDER ( LCD DISPLAY ) UPPER-LEFT i ndicator: shows the products weight in POUNDS or KILOGRAMS when this happens, the symbol lb or kg appears in the alphanumeric ("MODE") indicator PRICE indicator: shows the price per POUND or KILOGRAM of the product. This price can have up to 5 digits. ("... -
Page 9: How To Enter Prices
HOW TO ENTER PRICES The product price per pound or kilogram is entered pressing the numbers of the keyboard to indicate the desired value. This value will appear in the "PRICE" indicator and the total amount to pay will be calculated automatically being shown in the "TOTAL"... -
Page 10: How To Use The Reference To Zero
Suppose you are going to weight 15 pounds of sugar in a plastic container that weights 3.5 pounds and that the price per lb is $1.80. 1.- Place the empty container on the scale. 2.- Press the key. After some seconds th e view finder will display: 3.- Remove the container and put the sugar inside it. -
Page 11: Price Add-Up
PRICE ADD-UP When you want to add some prices up follow these steps 1.- Put the commodity over the plate with the 2.- Remove the commodity. unit price (for example a price of $2.20 and a weight of 1.50 lb) and press 3.- Put another good with the unit price and then 4.- When you press with the total... -
Page 12: How To Load A Memory
HOW TO LOAD A MEMORY: 1) Press the key and then the memory address (00-99) you wish to load or just press any of the direct access keys , ..., Example: If you wish to save $26.60 in the memory address 6, follow these steps: 1) Type 2) Press 3) Type... -
Page 13: Battery Recharge
USE OF THE BATTERY As mentioned before, the scale can operate with a 4 volt built in battery or with an AC/DC power supply. The battery is rechargeable using the AC/DC power supply. BATTERY RECHARGE To make this operation, just connect the AC/DC power supply to the scale for 10 HOURS making sure that the scale was turned off. -
Page 14: Other Important Messages That Appear On The Scale
To check the counter follow these instructions: Calibration counter 1.- Turn on the scale 2. Press during the initial countdown, at the end of the countdown the view finder will display. B) Counter of times that the internal configuration has been changed 1.- Turn on the scale 2. - Page 15 This message indicates a negative weight, this could happen if you lift or remove the scales plate to correct this put the plate back in its place and press the key or turn the scale off and then turn it on again. This message appears when: If we turn on the scale with a product on the plate, to eliminate this message simply remove the product that is on the scale, turn off the scale and then turn it on again.
-
Page 16: Maintenance And Cleaning
MAINTENANCE AND CLEANING -- Do not use a flow of water to clean your scale. Use a damp rag and clean each of these components daily: plate, cover, keyboard. --To remove oil and greasy substances, use a dry and clean rag, rubbing the dirty area several times. --Periodically check the jack (where the AC/DC power supply is inserted) to make sure it is in good condition. -
Page 17: Technical Specifications And Scale Dimensions
TECHNICAL SPECIFICATIONS TECHNICAL SPECIFICATIONS Model PC-80L & PC-80LT PC-40L & PC-40LT PC-20/20T Max. Capacity 80 lb 40 lb 20 kg Min. Division 0.02 lb 0.01 lb 0.005 kg Max. Tare 80 lb 40 lb 9.999 kg Max. Price $999.99 Range of operation temp. 14 to 104 ºF ( -10 to 40 ºC ) AC/DC POWER SUPPLY : OUTPUT...
