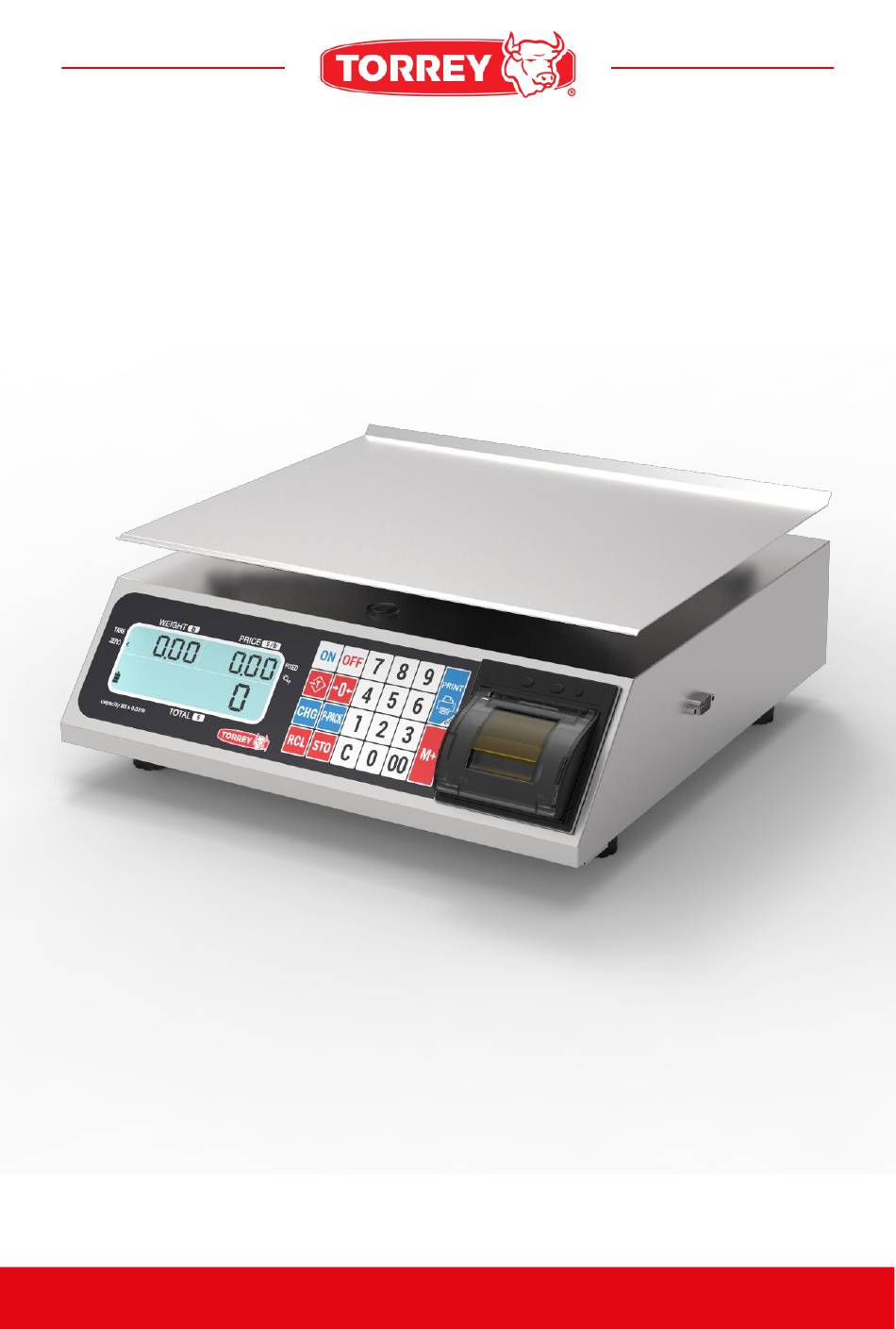

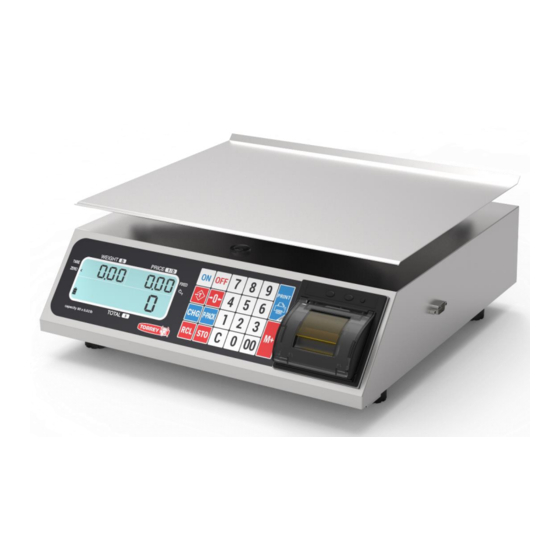

- Page 1 OWNER’S MANUAL RECEIPT SCALE PC HSP Series BEFORE OPERATING THIS SCALE, PLEASE READ THIS MANUAL THOROUGHLY CODE: 13100926 REV 0...
-
Page 2: Table Of Contents
About the printer Print speed Durability How to open the cover group How to load paper rolls how to close cover group correctly How to cut the paper Maintenance and cleaning Troubleshooting guide Technical specifications Additional data PC HSP Series... -
Page 3: Important Warnings
Receipt Scale IMPORTANT WARNINGS In case you have any problem with the scale, read the warranty conditions. Do not open the scale on your own. Your warranty will be canceled. Do not press the keyboard with any sharp and/or pointed objects. Use a VAC outlet exclusive for the scale, avoiding overloads or voltage variations. - Page 4 WARNING Do not open the scale Caution: to reduce the risk of short circuit in your scale, do not remove the cover or substitute any of the parts for others that are not original only authorized distributor. PC HSP Series...
-
Page 5: Introduction
Receipt Scale INTRODUCTION Dear customer: We appreciate that you have chosen this product. We assure you that you will get the maximum satisfaction of the new acquisition for your business. We suggest you to read carefully this manual and make sure to keep it at hand for later consultations. -
Page 6: Name And Location Of General Parts
POWER SUPPLY: 110/220 VAC to 9VDC Switching adapter (included). 10. SERIAL CONNECTOR: Connect the scale with a PC using a RS232 cable. 11. TURRET DISPLAY: Turret with large digit display (Available PC40LT-HSP, PC80LT- HSP). PC HSP Series... -
Page 7: Keyboard
Receipt Scale KEYBOARD Press to turn the scale ON Press to turn the scale OFF Press to set the scale to zero weight. Press to eliminate any container’s weight that you do not want to consider during a trade. Is used to store prices data on the 99 scale’s memory. -
Page 8: Lcd Display Screen
PRICE INDICATOR: Indicates the product's price per pounds. “FIXED PRICE” INDICATOR: Shows that the product's price would not be deleted when the product is removed from the scale. Does not allow to modify the price, only de-activating the fixed price function will. PC HSP Series... -
Page 9: Description Of Operations
Receipt Scale LCD DISPLAY SCREEN AC/DC POWER SUPPLY INDICATOR: Shows the scale is connected to the power outlet. TOTAL INDICATOR: Shows the total amount to charge per product during a sale. (Weight x price). BATTERY INDICATOR: Shows charge level of the battery. “ZERO”: Shows when scale is in zeros and ready to weight. -
Page 10: Price Add-Up
To end a sale without change, add all the desired products (see instructions on “How to add a product to the sales ticket”). Once you see the total screen (without removing the weight) press the “PRINT” key to end the sale. Total screen Sale ticket PC HSP Series... -
Page 11: How To Finish A Sales Ticket With Change
Receipt Scale How to finish a sales ticket with change To calculate the change of a sale, once you have finished adding the products . Press the "CHG" key, type the amount received (must be greater than the total) and press the "CHG" key again to determine the change. Finally, to end the sale and print the ticket press the “PRINT"... -
Page 12: How To Use "Tare" Function
To delete all stored memory slots, turn the scale ON and during the countdown press RCL, M+, PRINT and all the stored memories will be deleted. PC HSP Series... -
Page 13: How To Set Date And Time
Receipt Scale How to set date and time To set the date and time, turn on the scale and when the message "------" is displayed enter the password: "CHG", "STO", "TARE", "C". After entering the password, the year (2019 to 2099) will be requested, enter the year and press "C"... -
Page 14: Due Balance
After fully charging the battery, the scale has the capacity to print 9800 lines, if we consider tickets like the one in the following image, you can print up to 700 tickets without connecting the AC / DC adapter. PC HSP Series... -
Page 15: Serial Connection With Pc
"CC" is equal to "OD" in all examples) ASCII You are able to use SCALE v2.x software to show weight measurement on your PC or laptop screen. *Installing: Please download the scale software from our web site http://www.torrey-cloud.com/downloads/ (identify “PPT Torrey Software” section and proceed to download). - Page 16 When the scale has been handled roughly and/or hit. NEGATIVE WEIGHT This message indicates a negative weight to fix this place back in its plate and press the "->0<-" key, or turn the scale off and then turn it on again. PC HSP Series...
-
Page 17: About The Printer
Receipt Scale PLS UNLOAD This message appears when the scale was turned on with a weight on the plate. To quit this message remove the weight, turn off the scale and then turn it on again. TOTAL “- - - - - - - -” This message indicates that the limit has been exceeded when the multiplication price per weight exceeds the 9999.99, if this happens, lines at "TOTAL"... -
Page 18: How To Open The Cover Group
How to load paper rolls Its important to put the paper roll in the correct position, as indicated by the image, otherway the printer will not print correctly. PC HSP Series... -
Page 19: How To Close Cover Group Correctly
Receipt Scale How to close the cover group correctly Press on both sides of the cover group (simultaneously) Alternatively: press on the middle area of the cover group (near to the paper exit). Do not close the cover group by pressing only on one side. How to cut the paper Pull the paper towards the rear bar from one side to other. -
Page 20: Maintenance And Cleaning
Never press the keyboard with objects such pencils, pens, knives, etc. • Do not drop hard the product to be weighted on the plate or the scale • because with the time it could damage the load cell. PC HSP Series... -
Page 21: Troubleshooting Guide
Receipt Scale TROUBLESHOOTING GUIDE Before you call for service to your authorized distributor, check this manual again to avoid a misunderstanding. PROBLEM POSSIBLE CAUSE SOLUTION There is not electric With a multimeter check current. the current outlets. Check the AC/DC power AC/DC power supply cable supply terminals, if it is has an unconnected wire... -
Page 22: Technical Specifications
OPER TEMP: OPERATING TEMPERATURE. POWER SUPPLY INPUT: 110/220VAC POWER SUPPLY OUTPUT: 9VDC 2A BATTERY: 6VDC 4.0A/h 16.93 ” 14.37 ’’ 5.62 5.62 ’’ ’’ 14.055 14.055 ” ” 14.181 14.181 ’’ ’’ PC 40L/80L -HSP PC 40L/80L T-HSP PC HSP Series... -
Page 23: Additional Data
Receipt Scale ADDITIONAL DATA The serial number of this product can be found in the identification information which is located at the top of the scale’s cabinet. We suggest you that write the serial number and the scale model in the following spaces and hold them as proof of your acquisition and as identification in case of loss or to future request. - Page 24 ELECTRONIC SCALE www.torrey.net...
