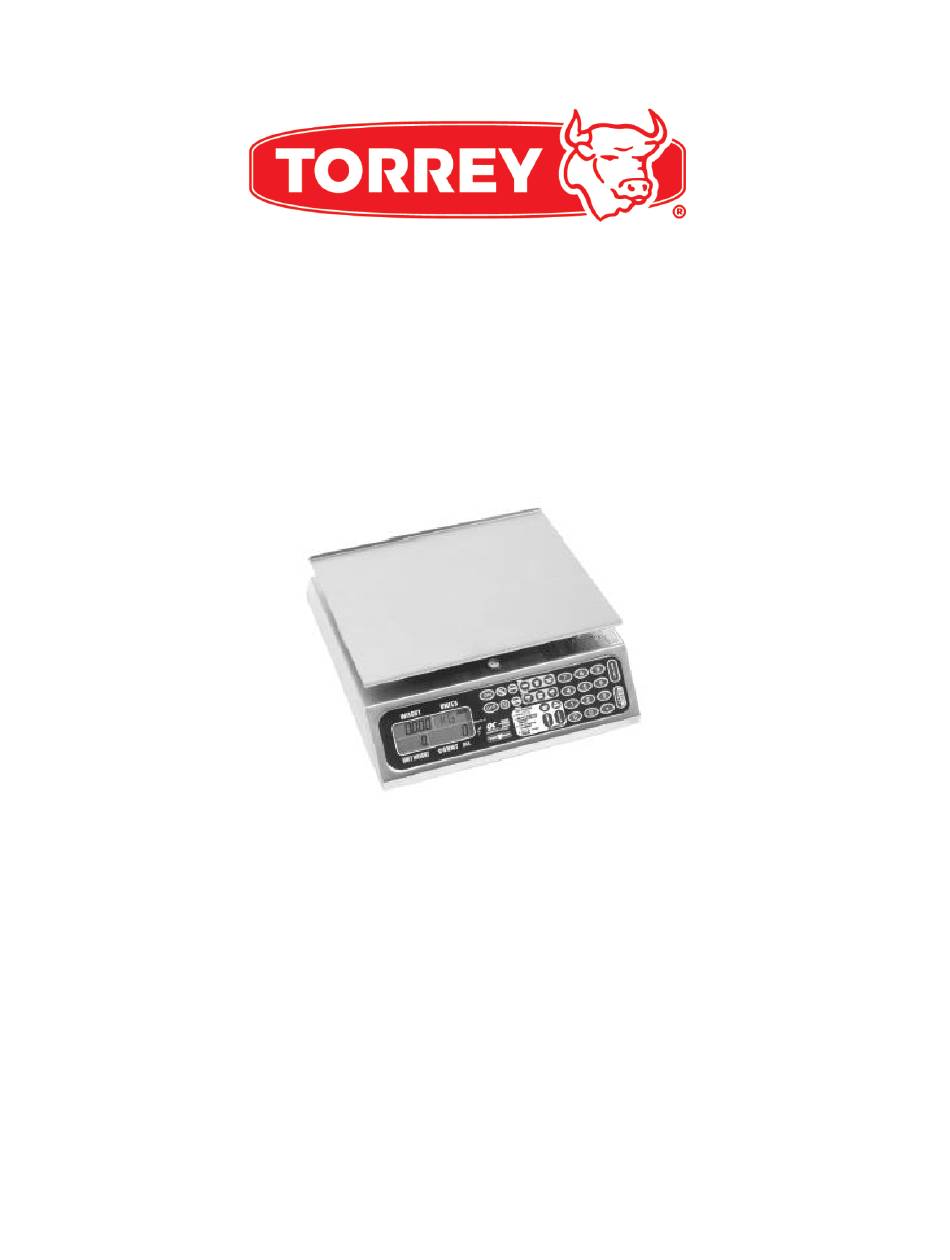

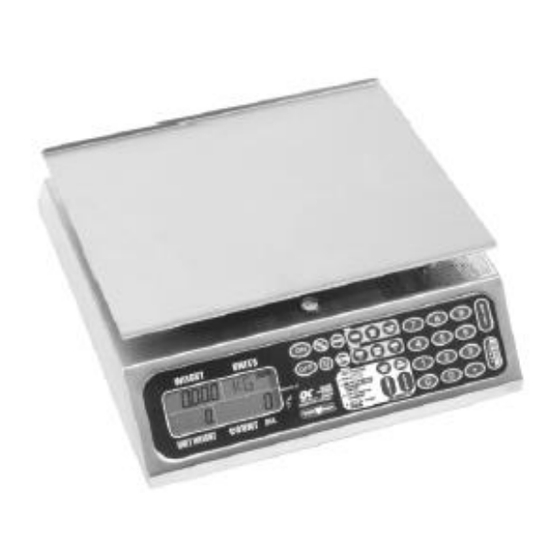

FABRICANTES DE BASCULAS TORREY S.A. DE C.V.
COUNTING SCALE
QC
SERIES
USER'S MANUAL
IMPORTANT:
COD. 13100885
BEFORE OPERATE YOUR SCALE, READ THIS MANUAL COMPLETELY
.
REV. 0

Advertisement

loading
Need help?

Need help?

Do you have a question about the QC Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Torrey QC Series

Summary of Contents for Torrey QC Series

  • Page 1 FABRICANTES DE BASCULAS TORREY S.A. DE C.V. COUNTING SCALE SERIES USER’S MANUAL IMPORTANT: COD. 13100885 BEFORE OPERATE YOUR SCALE, READ THIS MANUAL COMPLETELY REV. 0...
  • Page 2 INDEX PAGE IMPORTANT WARNINGS INTRODUCTION INSTRUCTIONS FOR INSTALLATION NAME AND LOCATION OF IMPORTANT PARTS * KEYBOARD * DISPLAY SECTION COUNTING FUNCTIONS * TARE/ZERO KEY FUNCTION * HOW TO WEIGHT A PRODUCT * EASY OPERATION 1.COUNT MODE 2.SAMPLE MODE * INTERMITTENT INDICATOR TABLE OF MAXIMUM ERRORS * UNIT WEIGHT MEMORIES * HOW TO STORE UNIT WEIGHT MEMORIES...
  • Page 3 I . I M P O R T A N T W A R N I N G S IN CASE YOU HAVE ANY PROBLEM 2.- DO NOT OPEN THE SCALE ON 3.-”NEVER” PRESS THE KEYPAD WITH THE SCALE, FIRST READ YOUR OWN.

  • Page 4: Instructions For Installation

    II. I N T R O D U C T I O N DEAR CUSTOMER: WE APPRECIATE YOU HAVE CHOSEN THIS PRODU CT AND WE ASSURE YOU WILL GET THE MAXIMUM SATISFACTION OF THE NEW ACQUISITION FOR YOUR BUSINESS. WE SUGGEST TO READ CAREFULLY THIS MANUAL AND MAKE SURE TO KEEP IT AT HAND FOR LATER CONSULTATIONS. III.
  • Page 5 IV. NAME AND LOCATION OF IMPORTANT PARTS KEYBOARD : KEYS: PRESS THE KEY TO TURN THE SCALE ON AND THE KEY TO TURN THE SCALE OFF. NUMERIC SECTION KEYS: IT IS USED TO ENTER DATA SUCH AS UNIT WEIGHT OR QUANTITY. KEY : IT IS USED TO ENTER THE NUMBER ZERO.
  • Page 6 UNIT WEIGHT FUNCTIONS KEY : IT IS USED TO RECALL A PREVIOUSLY STORED UNIT WEIGHT. KEY : IT ACTIVATES THE SAMPLE MODE AND GETS THE UNIT WEIGHT. KEY : IT IS USED TO ENTER THE UNIT WEIGHT USING THE NUMERIC SECTION. KEY : IT IS USED TO ENTER A MANUALY TARE WEIGHT.
  • Page 7 DISPLAY SECTION WEIGHT UNITS COUNT pcs UNIT WEIGHT 1. WEIGHT SECTION: IT SHOWS THE WEIGHT OF THE PRODUCT. 2. UNIT WEIGHT SECTION: IT SHOWS THE UNIT WEIGHT. 3. UNITS SECTION: IT SHOWS THE UNIT OF MEASURE: kg, lb 4. COUNT pcs. SECTION: : IT SHOWS THE QUANTITY OF PIECES INSIDE OF THE CONTAINER. 5.
  • Page 8 2. PRESS THE KEY. AFTER SOME SECONDS THE DISPLAY WILL SHOWS THE FOLLOWING: 3. PUT THE PRODUCT INSIDE OF THE CONTAINER AND THE SCALE SHOWS ONLY THE PRODUCTS WEIGHT WITHOUT THE CONTAINERS WEIGHT, WHEN REMOVING THE CONTAINER WILL APPEAR THE NEGATIVE WEIGHT.

  • Page 9: Easy Operation

    EASY OPERATION COUNT MODE 1.PRESS THE , KEY. 2.USE THE NUMERIC KEYS TO ENTER THE WEIGHT PER UNIT OF THE PIECE (UNIT WEIGHT). 3. PRESS THE KEY. THE QUANTITY OF PIECES IS AUTOMATICALLY CALCULATED AND IT IS DISPLAYED ON THE COUNT pcs. SECTION.
  • Page 10 INTERMITTENT INDICATOR IT IS ACTIVATED WHEN THE TOTAL OF PIECES IS CALCULATED ON THE BASIS OF THE UNIT WEIGHT VALUE WITH MORE DECIMALS THAT IS SHOWN IN THE UNIT WEIGHT SECTION. THIS VALUE IS NOT COMPLETELY IN THE DISPLAY, SO YOU CAN NOT RECORD IT; WHEN IT IS REQUIRED A BETTER RESOLUTION IS RECOMMENDABLE TO MAKE THE SAMPLING, CALCULATING THE UNIT WEIGHT AND COUNTING THE PIECES.
  • Page 11 VI. TABLE OF MAXIMUM ERRORS 5 kg Weight/piece Weight/piece Samples Pounds Grams 0.00005 to 0.00010 0.025 to 0.049 0.80% 1.01% 1.34% 2.02% 0.00011 to 0.00019 0.05 to 0.09 0.40% 0.50% 0.67% 1.01% 2.02% 0.00022 to 0.00043 0.1 to 0.19 0.20% 0.25% 0.33% 0.26%...
  • Page 12 UNIT WEIGHT MEMORIES THE SCALE HAS 50 MEMORIES TO STORE THE UNIT WEIGHT VALUES OF PIECES. HOW TO STORE UNIT WEIGHT MEMORIES IT IS POSIBLE TO BE IN TWO WAYS, COUNT OR SAMPLE MODE. FIRSTLY IN THE SAMPLING MODE OBTAIN THE UNIT WEIGHT FOLLOWING THE PROCEDURE FOR IT, ONCE THE UNIT WEIGHT HAS BEEN CALCULATED CORRECTLY, PRESS THE KEY AND ENTER THE NUMBER OF THE MEMORY SLOT THAT YOU WISH TO SAVE...
  • Page 13 HOW TO ACCUMULATE PIECES THIS FUNCTION IS USED TO ADD PIECES, HOWEVER THE MAXIMUM AMOUNT OF PIECES TO ACCUMULATE IS 999,999. IN THE ORDER TO ACCUMULATE PIECES WHILE IN THE COUNTING MODE, PRESS THE KEY, THE DISPLAY WILL SHOW THE NUMBER OF ACCUMULATED LOT (ITM) IN THE SECTION WEIGHT AND THE TOTAL AMOUNT OF PIECES ACCUMULATED IN SECTION COUNT pcs., AFTER A WHILE THE DISPLAY WILL RETURN WHERE IT WAS.
  • Page 14 VII. IMPORTANT MESSAGES THAT APPEAR ON THE DISPLAY THIS MESSAGE INDICATES THE SCALE HAS BEEN OVERLOADED, TO CORRECT SIMPLY REMOVE THE EXTRA WEIGHT FROM THE SCALE PLATTER. IF THIS MESSAGE APPEARS IN A INTERMITTENT WAY, IT MEANS THAT IS DETECTING LOW LEVEL OF VOLTAGE IN THE BATTERY AND THE BACKLIGHT WILL TURN AUTOMATICALLY OFF.
  • Page 15 CALIBRATION CONFIGURATION PARAMETERS: PARAMETER DESCRIPTION SERIAL PORT TRANSMISSION SPEED PLATFORM CAPACITY PERCENTAGE OF CAPACITY FOR CALIBRATION MINIMUM EXTERNAL DIVISION ZERO CALIBRATION FUNCTION OF THE KEYS DURING CONFIGURATION: SELECTS A PARAMETER. SAVES THE PARAMETER VALUE. ADVANCES TO THE NEXT PARAMETER. RETURN TO THE LAST PARAMETERS ENDS CALIBRATION.
  • Page 16 % (CALIBRATION PERCENTAGE) SELECT TABLE FROM 10% TO 100%. DMI EXTERNAL MINIMUM DIVISION (SEE THE TABLE BELOW). IT IS IMPORTANT TO DEFINE CORRECTLY IN THE CELL PARAMETER OF SCALES. IN ALL CASES, THE CELL PARAMETER IS 1 (NO MODIFIABLE). THE CALIBRATION WILL BE MADE IN kg. FOR EXAMPLE: CALIBRATE THE SCALE WITH A SERIAL VELOCITY OF TRANSMISSION OF 9600 BPS, WITH 10% OF WEIGHT, AND MINIMUM DIVISION OF 0.002 gr.

  • Page 17: Maintenance And Cleaning

    IX. SELECTION TABLE OF MINIMUM EXTERNAL DIVISION INDICATE THE VALUE TO INTRODUCE IN THE CALIBRATION IN THE DMI PARAMETER, EACH CAPACITY HAS 9 DIFFERENT DIVISIONS FROM 10,000 TO 25 div., IF YOU WISH THE CAPACITY OF 20 kg. WITH 10000 div. DMI =2;...
  • Page 18 XI. RECOMMENDATIONS ADVANTAGES AND TAKING CARE OF 1.- THE SCALE OFFERS THE ADVANTAGE AT THE SAME TIME TO SHOW THE WEIGHT ON THE PLATE, THE UNIT WEIGHT OF THE PIECE AND THE TOTAL OF PIECES CALCULATED IN THE SAME DISPLAY . 2.-BEFORE INITIATING ANY WEIGHING OR SAMPLING , IT WILL HAVE TO VERIFY THE OPTIMAL CONDITIONS OF THE SAMPLING.

  • Page 19: Technical Specifications

    XII. TECHNICAL SPECIFICATIONS MODEL QC-5 QC-20 QC-50 MAXIMUM CAPACITY 5kg / 10lb 20kg / 40 lb 50kg / 100 lb MINIMUM DIVISION 0.5gr / 0.001lb 0.002kg / 0.005 lb 0.005kg / 0.01 lb MINIMUM UNIT WEIGHT 0.05gr / 0.0001lb 0.0002kg/0.0005lb 0.0005kg/0.001lb TEMPERATURE OF OPERATION -10 A 40°...

This manual is also suitable for:

Qc-5Qc-20Qc-50
