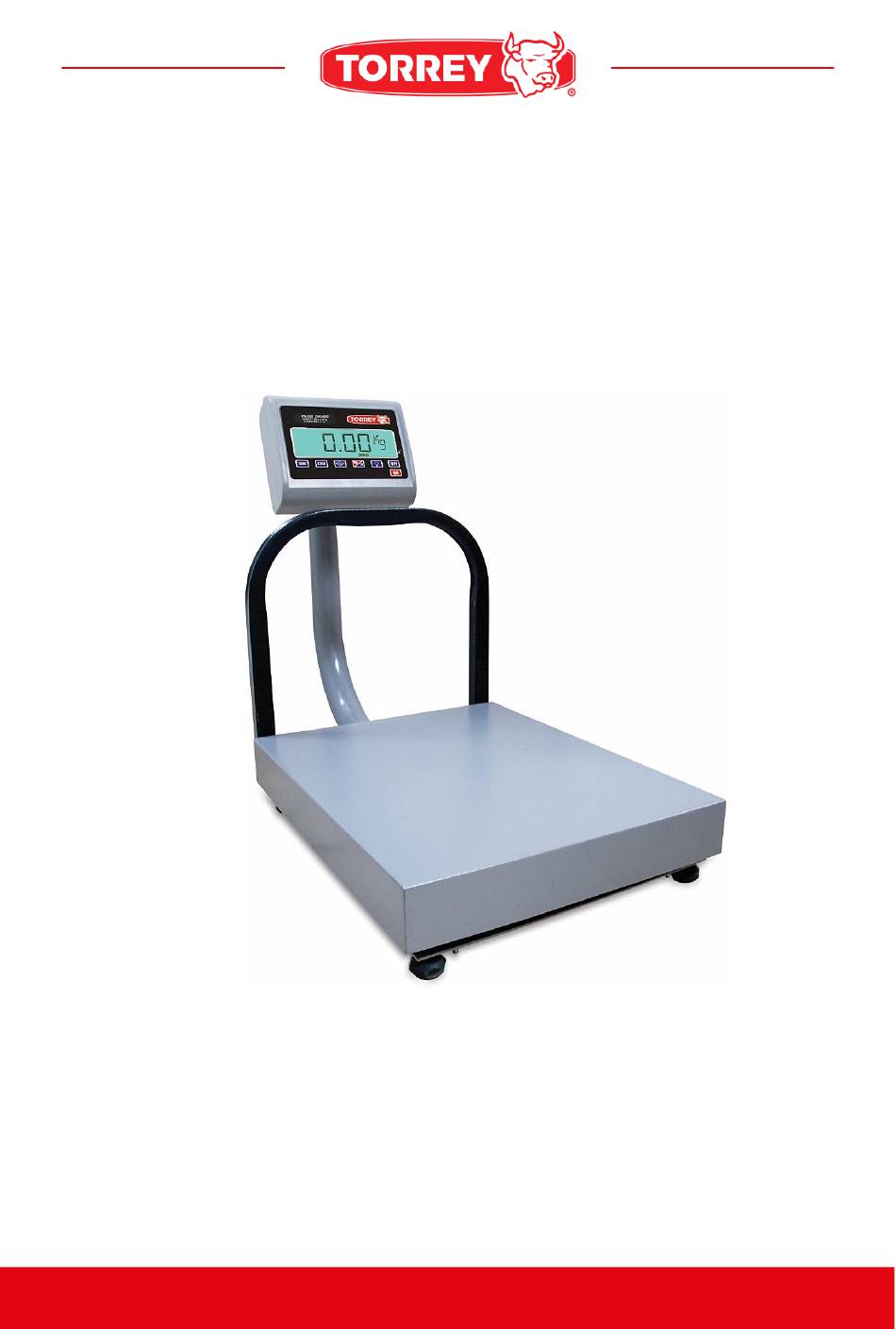

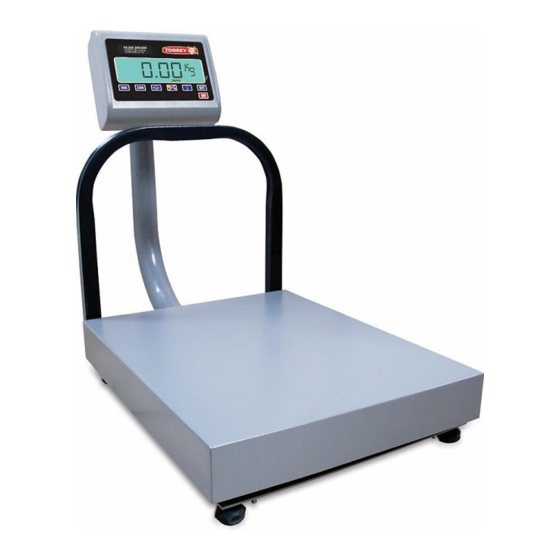

- Page 1 OWNER`S MANUAL ELECTRONIC SCALE FS, EQB and EQM Series BEFORE OPERATING THIS SCALE, PLEASE READ THIS MANUAL THOROUGHLY. CODE: 13100906 REV 0...
-
Page 2: Table Of Contents
Use of the battery. Counters verification function. Important messages that appear on the scale. Maintenance and cleaning. Troubleshooting guide. Technical specifications of EQB50/100, EQB100/200 and FS200/400. Technical specifications of FS250/500 and FS500/1000. Technical specifications of EQM200/400 and EQM400/800. Technical specifications of EQM1000/1000. -
Page 3: Important Warnings
Shipping / receiving scale IMPORTANT WARNINGS In case have problema wiht the scale, firts read the warranty condiction. Do not open the scale on your own. Your warranty will be canceled. Never prees the keyboard wiht object such as pencils, pens, knifes, etc. Use a Vac outlet exclusive for the scale. - Page 4 IMPORTANT WARNINGS solvents detergents cleaning only use damp rage. place fans heaters directed towards the scale. 10. Do not place the scale where there is a lot of moisture and/or dust. 11. Only autorized and qualified personnel should check and repair your scale. IMPORTANT! Battery should be recharged for 10Hrs before using the scale for the first time.
-
Page 5: Introduction
Shipping / receiving scale INTRODUCTION Dear customer: We appreciate that you have chosen this product. We assure you that you will get the máximum satisfaction of the new acquisition for your business. We suggest you to read carefully this manual and make sure to keep it at hand for later consultations. -
Page 6: Keyboard
KEYBOARD When you press it you eliminate any containers weight that you do not wish to considere during a trade. (example: boxes, bags, bottkes, etc). When you press it the scale starts with zero weight. It is use to send information to a printer (optional). When you press this key you change the units of the scale from kilograms to pounds and vice versa. -
Page 7: General View Finder
Shipping / receiving scale GENERALD VIEW FINDER “Alphanumeric" indicator: shows the product's weight in pounds and kilograms when this happens, the symbol "kg" or "lb" appears in the indicator (1). Alphanumeric indicator can show the following readings: “Kg” or “lb” is shown when the scale is ready to weight products. OVRLOAd is shown when there is an overweight on the scale. -
Page 8: Operations Description
OPERATION’S DESCRIPTION How to weight a product Turn your scale on pressing the key. The general view finder will show “------“ for few seconds. Then the general view finder will be in “zeros”. At this moment the scale is ready to weight. Then place the product to weight on the plate and you will see the weight in the alphanumeric indicator. -
Page 9: How To Use Kg/Lb Convertion Key
Shipping / receiving scale The following observations are specially important: a) When there is no weight on the scale (container) you can not activate the “TARE” function. b) When a container is “tared”, but when you remove it from the plate and you remove a larger weight than the container (grease, remaining of product, etc.) or when the plate is slightly lifted the message “NEG”... -
Page 10: Use Of The Battery
This function is permanently activated when the scale is on and only when you do not have the ac/dc power supply connected to the scale. When you do not use the scale for a period of time approximate to 15 minutes, it will automatically turn off. -
Page 11: Counters Verification Function
Shipping / receiving scale Counters verification function The scale is equipped with two important counters: the calibration counter and the counter of times that configuration has been changed. This counters must be accessed only by official office of weights and measures inspectors. The calibration counter shows the number of times that the scale has •... - Page 12 Other important messages that appear in the scale This message indicates that a weight that exceeds the maximum capacity has been placed on the scale. To correct this, simply remove the over weight. This message appears in two different situations: a)When the scale is turned on with an excessive weight on the plate (more than 50% of scale total capacity) to correct this situation remove the weight that is on the scale, turn off the scale and then turn it on again.
-
Page 13: Maintenance And Cleaning
Shipping / receiving scale MAINTENANCE AND CLEANING One of the greatest advantages of purchasing this scale model is that it requires minimum maintenance and it is very simple to keep it in favorable conditions. Do not use a flow of water to clean tour scale. use a damp rag and •... -
Page 14: Troubleshooting Guide
TROUBLESHOOTING GUIDE Before you call for service to your authorized distributor, check this manual again to avoid a misunderstanding. PROBLEM POSSIBLE CAUSE SOLUTION THERE IS NOT ELECTRIC WITH A MULTIMETER CHECK THE CURRENT. CURRENT OUTLETS. CHECK THE AC/DC POWER AC/DC POWER SUPPLY SUPPLY TERMINALS, IF IT IS THE SCALE CABLE HAS A FALSE... -
Page 15: Eqb100/200 And Fs200/400
Shipping / receiving scale TECHNICAL SPECIFICATION. EQB50/100 and EQB100/200 Model EQB50/100 Model EQB100/200 Max. Cap. 50kg/100lb Max. Cap. 100kg/200lb Min. Div. 0.01kg/0.2lb Min. Div. 0.02kg/0.05lb Max. Tare. 50kg/100lb Max. Tare. 100kg/200lb Oper. Temp. -4ºF to 122ºF Oper. Temp. -4ºF to 122ºF Leveling Bases. -
Page 16: Technical Specifications Of Fs250/500 And Fs500/1000
TECHNICAL SPECIFICATION. FS250/500 and FS500/1000 Model FS250/500 Model FS500/1000 Max. Cap. 250kg/500lb Max. Cap. 500kg/1000lb Min. Div. 0.05kg/0.1lb Min. Div. 0.1kg/0.2lb Max. Tare. 99.95kg/500lb Max. Tare. 500kg/1000lb Oper. Temp. -4ºF to 122ºF Oper. Temp. -4ºF to 122ºF Base. Protection fence. Plate holder. -
Page 17: Technical Specifications Of Eqm200/400 And Eqm400/800
Shipping / receiving scale TECHNICAL SPECIFICATION. EQM200/400 and EQM400/800 Model EQM200/400 Model EQM400/800 Max. Cap. 200kg/400lb Max. Cap. 500kg/1000lb Min. Div. 0.05kg/0.1lb Min. Div. 0.1kg/0.2lb Max. Tare. 99.95kg/400lb Max. Tare. 400kg/800lb Oper. Temp. -4ºF to 122ºF Oper. Temp. -4ºF to 122ºF Wheels. - Page 18 TECHNICAL SPECIFICATION. EQM1000/2000 Model EQM1000/2000 Max. Cap. 1000kg/2000lb Min. Div. 0.2kg/0.5lb Max. Tare. 999.8kg/999.5lb Oper. Temp. -4ºF to 122ºF Wheels. Base. Plate holder. Plate. Turret. Turret display. Protection fence. Weight sensor. AC/DC Power supply. Turret. USB connector. Jack input . Indicator holder.
-
Page 19: Additional Data
Shipping / receiving scale ADDITIONAL DATA The serial number of this product can be found in the register plate under the scale. We suggest you that write the serial number and the scale model in the following spaces and hold them as proof of your acquisition and as identification in case of loss or to future request. - Page 20 ELECTRONIC SCALE www.torrey.net...
