VGA Settings Menu
H total
V position (Vertical
Position)
H position (Horizontal
Position)
Phase

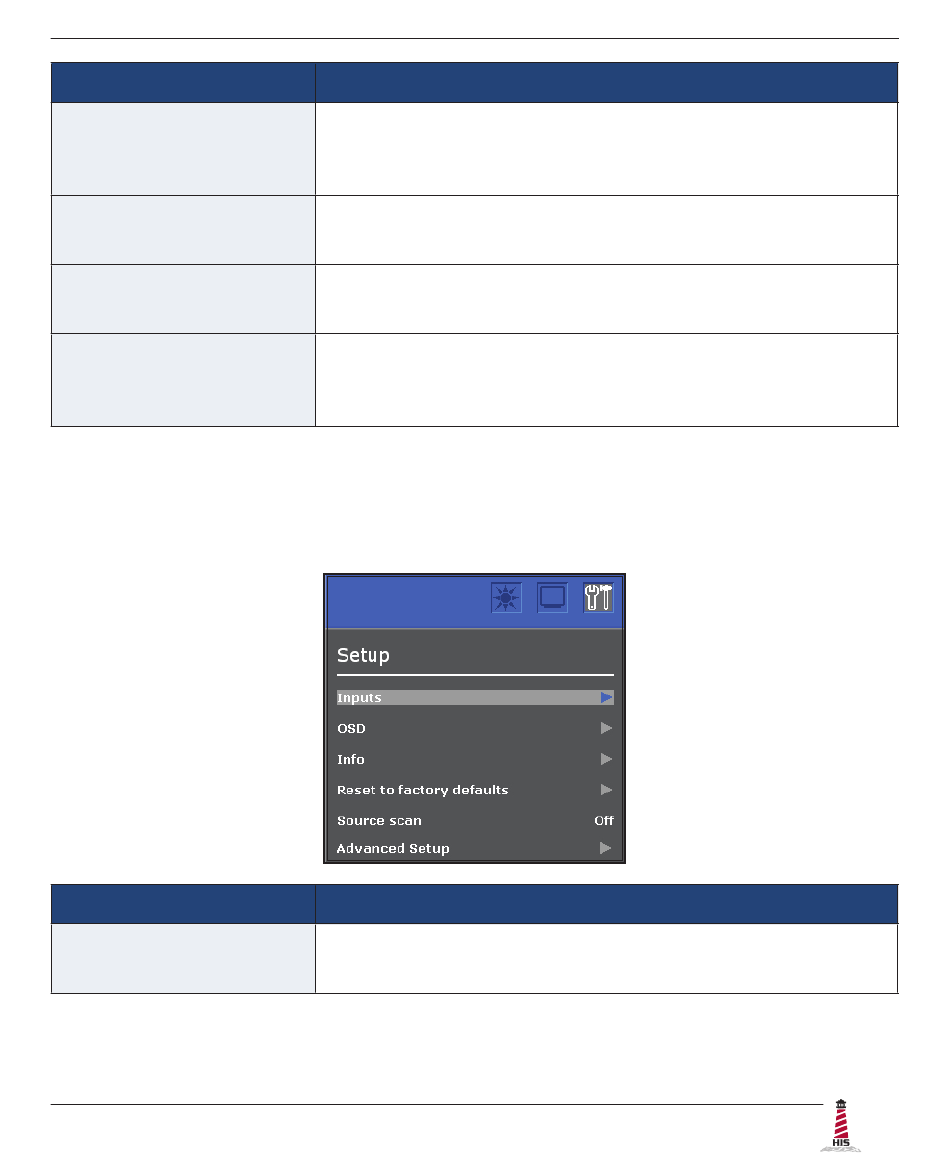

Setup Menu

The Setup menu includes the Inputs, OSD, Info, Reset to factory defaults, Source scan, and
Advanced Setup functions�
Setup Menu
Inputs
Description
Allows the user to fine tune the horizontal timing by increasing
or decreasing the total horizontal pixels. H total affects how the
image is stretched horizontally.
Moves the screen image up and down.
Moves the screen image left and right.
Adjusts the focus of the screen image. Allows the user
to remove any horizontal noise and sharpen the image of
characters�
Description
Allows the user to select between VGA, DVI and DisplayPort
input�
