HIS -ML17-xxxB Series User Manual

HIS -ML17-xxxB Series User Manual

17” panel mount industrial monitor

Advertisement

Hope Industrial Systems, Inc.
User Manual
17" Panel Mount Industrial Monitor
Revision B
Model Numbers: HIS-ML17- _ _ _ B

Advertisement

Table of Contents
loading

Summary of Contents for HIS HIS-ML17-xxxB Series

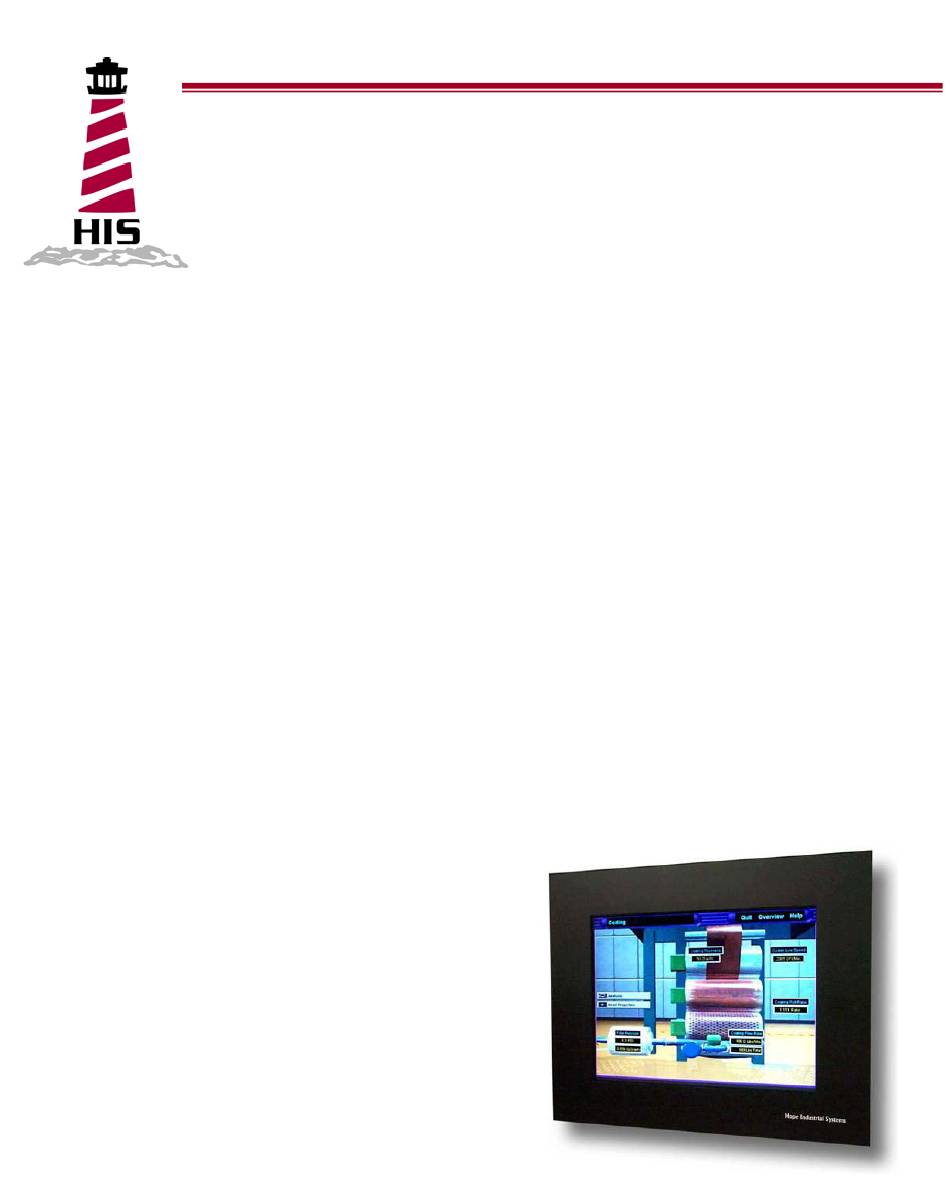

  • Page 1 Hope Industrial Systems, Inc. User Manual 17” Panel Mount Industrial Monitor Revision B Model Numbers: HIS-ML17- _ _ _ B...
  • Page 2: Table Of Contents

    Table of Contents SAFETY AND REGULATORY INFORMATION ..............3 Warning ..........................3 FCC Notice ......................... 3 CONTROL PANEL BUTTONS AND INDICATORS .............. 4 OSD FUNCTIONS ......................... 6 Picture ..........................6 Color ........................... 6 Image ..........................7 On-Screen Display (OSD) ....................8 Setup ..........................
  • Page 3: Safety And Regulatory Information

    Any changes or modifications not expressly approved by the grantee of this device could void the user’s authority to operate the device.
  • Page 4: Control Panel Buttons And Indicators

    Control Panel Buttons and Indicators Control Panel Button Mode Description Opens the OSD menu. Also used to exit the OSD MENU Always menu or return to the previous menu. MagicBright: Provides an optimum viewing envi- ronment depending on the contents of the image you are watching.
  • Page 5 Control Panel Button Mode Description When the Push to adjust brightness. OSD Menu is Displayed When the Adjusts items in the menu UP. OSD Menu is Being Displayed When the Activate a highlighted menu item. ENTER OSD Menu is Being Displayed Use this button for auto adjustment of the display.
  • Page 6: Osd Functions

    OSD Functions Picture Menu Description Direct Access Feature: When OSD is not on the screen, push the Brightness button to adjust brightness. Adjust the contrast. Contrast Color Menu Description Off: Returns to the original mode Demo: The screen before applying MagicColor appears on the right and the screen after applying MagicColor appears on the left Full: Displays not only vivid natural color but also...
  • Page 7: Image

    selected – Cool, Normal, Warm and Custom. Adjust individual R,G,B color balance. Color Control Select one of three pre-defined gammas: • Mode 1 : Shows normal gamma Gamma • Mode 2 : Shows higher gamma(brighter) • Mode 3 : Shows lower gamma(darker) Image Menu Description...
  • Page 8: On-Screen Display (Osd)

    On-Screen Display (OSD) Menu Description Changes the language used in the display menu. Language Changes the horizontal position of the OSD. H-Position Changes the vertical position of the OSD. V-Position Changes the translucency of the background of the OSD. Transparency The OSD menu will automatically turn off if no adjustments are made for a certain time period.
  • Page 9: Installation Instructions

    3. Ensure that the air temperature around the unit (top and bottom) will not exceed the rated specifications of the unit. • The maximum rated temperature of the HIS-ML17 is 50°C (122°F) • Remember that heat rises – the temperature at the top of the cabinet will be much hotter than at the bottom when the air is not circulating.
  • Page 10: Installation Into Panel

    6. Tighten all 12 nuts to a torque of 24 inch-pounds to assure a water-tight seal be- tween the poron bezel gasket on the monitor and equipment panel. HIS will not assume liability for damage to internal electronics due to improper installation.
  • Page 11: Touchscreen Driver Installation

    Touchscreen Driver Installation The enclosed CD-ROM contains documentation and drivers for all major operating systems. To be sure you have the most current information, check the following Internet addresses: http://HISmonitors.com/Touchscreen_Drivers.htm...
  • Page 12: Cleaning

    Cleaning CAUTION! DO NOT USE ABRASIVE MATERIALS SUCH AS PAPER TOWELS OR DIRTY SHOP RAGS ON THE DISPLAY AS IT WILL SCRATCH THE PROTECTIVE COATING. ALWAYS USE A SOFT CLOTH, PREFERABLY MADE OF COTTON. Resistive Touchscreen model Any standard glass cleaner can be used to clean the touchscreen. Always spray the glass cleaner on the cloth or towel and then clean the touch- screen.
  • Page 13: Troubleshooting

    Troubleshooting Symptom Check List Solutions Do you see the “Check Signal Cable” Check the video connection from No image on the message on screen? the monitor to the computer. screen If running Windows and the computer If you see the initial screens, then power is on, reboot the computer and the image goes dark, the computer watch for the initial boot and windows...
  • Page 14 Symptom Check List Solutions • Make sure the PC display resolu- Many possible causes. Try the follow- Image on screen ing solutions. is not perfect tion matches one the factory pre- set timings shown in this manual. • Recall factory setting. Refer to panel controls and OSD functions in this manual.
  • Page 15: Drawings

    Drawings Front and Side Views 437.78 (17.235) Rear View (Showing Cutout Dimensions) 406 (16.02”)
  • Page 16 Rear and Bottom Views...
  • Page 17: Specifications

    Specifications Display Type Thin-film transistor (TFT) Active Matrix Liquid Crystal Size 17” diagonal Image size 13.3” (338mm) x 10.6” (270mm) Native resolution SXGA (1280 x 1024) Plug and Play DDC1/2B compatible Minimum resolution VGA (640 x 480) Pixel pitch 0.264mm x 0.264mm Number of colors 16.2 million Viewing Angle (Hori/Vert)
  • Page 18: Video

    Video Input connector HD-15 (optional BNC input) Input signal format RGB Analog video 0.7Vp-p Positive at 75 Ohm +-10% Separate H/V sync, Composite H/V sync, Sync on green, TTL level positive or negative. Horizontal scan 30kHz – 81kHz Vertical scan 56Hz –...
  • Page 19: Functional

    Compliance Electrical UL 60950 3 Edition, cUL recognized component; FCC Class A; CE Environmental RoHS Functional Panel controls (rear Menu, MagicBright, Brightness Adjust, Enter, Auto, Power, access) Power Indicator OSD (On Screen Display) Picture, Color, Image, OSD, Setup, Information controls Touch screen option 5-wire resistive system;...
  • Page 20: Vga Pin Assignment

    VGA Pin assignment Pin No. Signal Pin No. Signal No pin Green Ground Blue Ground Ground Ground H. sync Ground V. sync Ground Ground...
  • Page 21: Factory Preset Timing

    Factory Preset Timing Horizontal Vertical Pixel Sync Polarity Frequency Frequency Clock (H/V) Resolution (KHz) (Hz) (MHz) IBM, 640 x 350 31.469 70.086 25.175 IBM, 640 x 480 31.469 59.940 25.175 IBM, 720 x 400 31.469 70.087 28.322 VESA, 640 x 480 37.500 75.000 31.500...
  • Page 22: Warranty Statement

    The warranty remains in force for a three year period beginning on the date we invoice you for the product unless it is a keyboard, for which the warranty period is one year. If HIS repairs or replaces a product under warranty, its warranty term is not extended.
  • Page 23 (This page left blank.)
  • Page 24 Hope Industrial Systems, Inc. 1325 Northmeadow Parkway Suite 100 Roswell, GA 30076 www.HISmonitors.com  2006 Hope Industrial Systems, Inc. Publication ML17B September, 2006...
