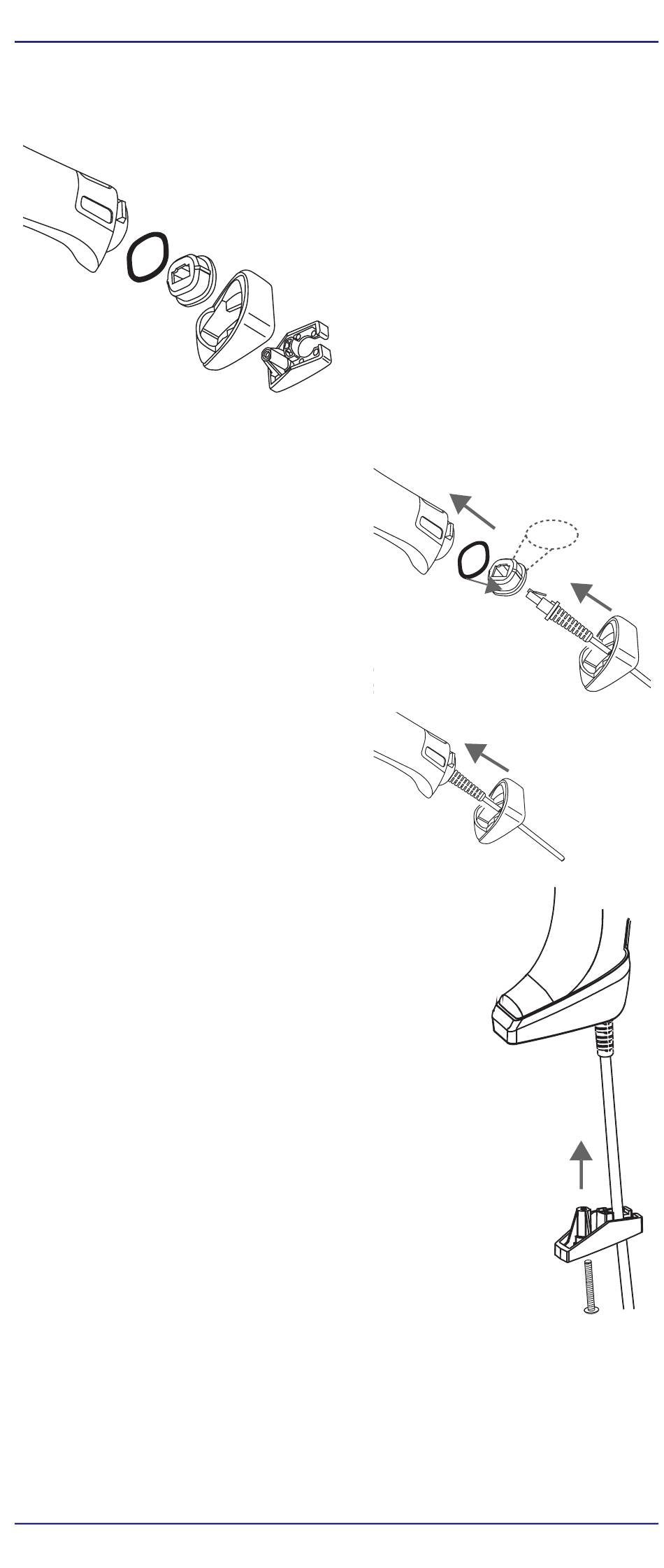

Connecting the Cable
1.
Slip the cable through
the Cover.
2.
Push the Rubber Gas-
ket onto the Cable
Holder.
3.
Push the Cable Holder
and gasket into the
handle. Ensure that
the "Front" marking
on the Cable Holder is
facing out, with the
arrow pointing
towards the front of
the scanner.
4.
Insert the end of the
cable into the socket
of the Cable Holder.
5.
Push the Cover along
the cable towards the
reader, and hook it
over the yellow
"tooth" on the back of
the handle.
6.
Insert the cable
through the Connector
Holder, and push it up
into the Cover.
7.
Insert and tighten the
screw to affix the
cable assembly to the
reader handle.
Quick Reference Guide
A
B
C
A. Rubber gasket
B. Cable Holder
C. Cover
D
D. Connector Holder
Setting Up the Reader
3
FRONT>>
2
4
5
6
7
1
3
