Summary of Contents for Wasp WDT 3200
-

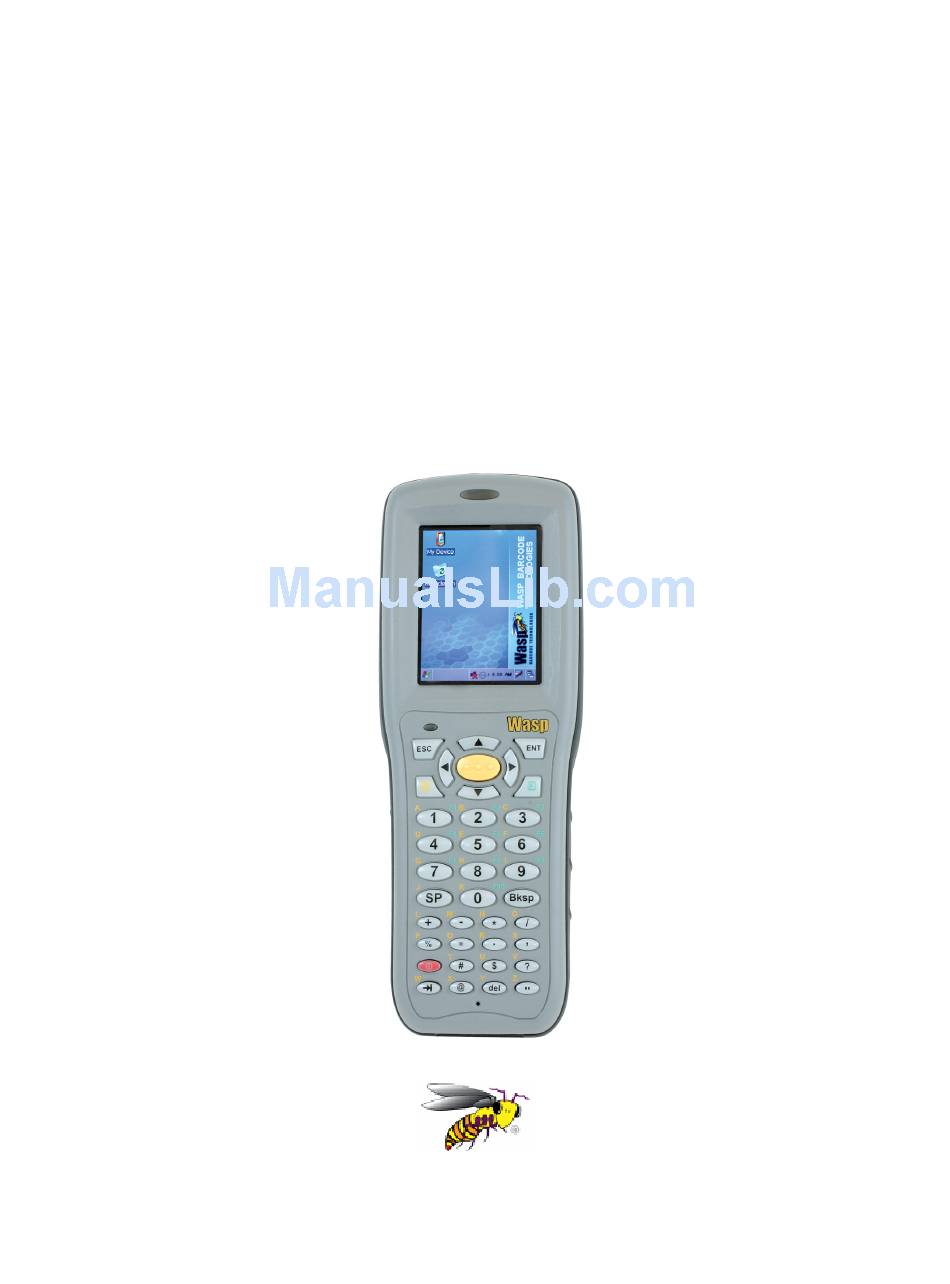

Page 1: Product Reference Guide
WDT 3200 Product Reference Guide Wasp Barcode Technologies... -
Page 2: Table Of Contents
WDT3200 Product Introduction & Accessory Kit... 7 WDT3200 Front View ... 8 WDT3200 Back View... 9 Before You Begin Using Your WDT3200 ... 10 Installing the Battery Pack ... 10 Supplying Power to the WDT3200 ...11 Using the WDT3200 for the First Time ...11 Chapter 2. -
Page 3: Chapter 1. Wdt3200 Introduction
Chapter 1. WDT3200 Introduction Overview The WDT3200 is a rugged, compact and ergonomic handheld terminal powered by the WinCE.NET OS to enable you to work more efficiently. The WDT 3200 incorporates an integral barcode scanning laser device, color LCD with touch screen, keypad, BT and wireless communication interface capability. -
Page 4: Warranty
The first time you use your device and in the event of a depleted battery, attach the WDT3200 to the charging cable and charge the unit for no less than 12 hours. This length of time ensures the backup battery is fully charged as well. -
Page 5: Wdt3200 Model Specification
WDT3200 Model Specification Model Rugged/Environment Drop test Operating Temp. Storage Temp. Humidity Keypads Full Alphanumeric Physical Weight (g) Dimension (LxWxH mm) Power supply & Management Main Battery Type Battery Recharging Time 4 hours Battery Life Backup Battery Type Display color ( Touch Panel 2.7") Included... -
Page 6: Wdt3200 Accessories
Communication and Charging Cradle RS232/USB Cradle is used for data transmission and charging. Communication and Charging Cable Kits Included USB cable and serial cable connects the WDT3200 terminal directly to a peripheral device for communication and a power source for charging. Universal Adaptor... -
Page 7: Wdt3200 Product Introduction & Accessory Kit
WDT3200 Product Introduction & Accessory Kit Terminal Communication Cable Adaptor Plugs Stylus WDT 3200 Product Reference Guide Battery Hand Strap Communication Cradle... -
Page 8: Wdt3200 Front View
WDT 3200 Product Reference Guide WDT3200 Front View Touch Screen Display Trigger Indicator Alpha Function Power RS232 Interface... -
Page 9: Wdt3200 Back View
WDT3200 Back View SD Memory Slot Hand Strap & Stylus WDT 3200 Product Reference Guide Bar Code Scanner Speaker Battery Door... -
Page 10: Before You Begin Using Your Wdt3200
Rechargeable Lithium-Ion battery pack CAUTION: There is a high risk of data loss if the WDT3200's backup battery is not fully charged. This data loss can occur if the main battery has been drained and the unit is not connected to the AC adaptor. For this reason, it is crucial that before you charge the main battery, you make sure the backup battery switch is set to ON. -
Page 11: Supplying Power To The Wdt3200
Connect the RS232/Charging Cable or USB/Charging Cable to the WDT3200 and connect the AC adapter to the cable’s power jack and an electrical outlet. Alternately you can place the WDT3200 into the Docking Station (first connect the power supply to the Docking Station). - Page 12 To adjust the original default setting of the screen brightness, the backlight setting will be required. Please refer to page 21 for the new setting procedure. Setting Time Zone/ Date Before using the WDT3200 please take a few minutes to set the time and date so that data can be properly time-stamped.
- Page 13 Setting the Time Zone 1. Tap the location arrow to see a list of cities. 2. Choose your location (or nearest listed one). 3. Select the Daylight Savings Time check box, if necessary. 4. Tap the APPLY button. 5. Select "Automatically adjust clock for daylight saving" for a Daylight Savings Time zone.
-
Page 14: Chapter 2. Using The Keypad And Scanner
Chapter 2. Using the Keypad and Scanner Keypad Data can be entered into the WDT3200 via the 36 key keypad. The keypad includes: 0~9, alpha, function, escape, backspace, enter, scanner trigger, cursor, and on/off keys. Escape Key Alpha Key Cursor Key... -
Page 15: Wdt3200 Hotkeys
One press of the Alpha key causes the WDT3200's keys to input alpha characters, indicated by a second press causes the input of upper-case characters, indicated by a numerical input. WDT3200 HotKeys The WDT3200 provides hotkeys for frequently used functions. Press the... -
Page 16: Software Keyboard (Windows Ce Keyboard)
WDT 3200 Product Reference Guide Software Keyboard (Windows CE Keyboard) Besides its hardware keypad, the WDT3200 provides a touchscreen keyboard as an alternative method of character input. This software keyboard replicates the layout of a standard PC keyboard. Opening the Windows CE Keyboard: The Windows CE keyboard can be opened by tapping the “keyboard”... -
Page 17: The Bar Code Scanner
WDT 3200 Product Reference Guide The Bar Code Scanner The WDT3200 has an integrated laser scanner capable of reading all major bar code labels. Chapter 3. Power system Charging the Lithium-Ion Battery Pack The WDT3200's batteries can be charged via the USB or serial communication cable, or via the optional docking station - both using the included AC adaptor. -
Page 18: Power Status Indication
How to Save Battery Power Automatic shutdown of the WDT3200 The WDT3200 will enter idle mode when there is no task, or all tasks are waiting for input. In the default setting, the WDT3200 will automatically turn itself off if it remains idle for 3 minutes and when there is no external charging power applied. -
Page 19: Storage And Safety Precautions
Storage and Safety Precautions Batteries should be stored in an open environment and should be placed where there is no risk of accidental shorting or other damage. Although charged Li-Ion batteries may be left unused for several months, their capacity may be reduced due to back up and internal resistance. -
Page 20: Warm Boot / Cold Boot
Warm Boot / Cold Boot Warm Boot Warm Boot is a reset to re-boot the WDT3200 without losing saved data. Perform a warm boot when: • The terminal fails to respond • After installing some software applications • After making changes to certain system settings, such as network cards... - Page 21 BootLoader, keyboard, or kernel upgrade. WARNING - Performing a Cold Boot will return the WDT3200 to its original factory settings! All installed programs and data will be lost! Cold Boot via Software To perform a Cold Boot via software, locate the BootMode program.
-
Page 22: Chapter 4. Data Communication
WDT 3200 Product Reference Guide Chapter 4. Data Communication Introduction The WDT3200 allows you to link to a host computer via RS-232 / USB, Bluetooth, or Wireless connection for data communication. This chapter provides an overview of the communication of the WDT3200. -
Page 23: Docking Station
PC's Com Port and the other end into the WDT3200 Docking Station's RS232 / USB port. To simultaneously charge the WDT3200, plug the AC power adaptor into the power receptacle on the Docking Station. RF Communication This section is only for WDT3200 equipped with a wireless card. -
Page 24: Using Activesync
• Because you will be restarting your computer during installation, save your work and quit all programs before you begin. • To set up your communication settings, the WDT3200 serial cable is required to connect the WDT3200 to your host computer. -
Page 25: Using The Mobile Devices Window
Open the Explorer window by double clicking your device icon in the Mobile Devices window. Use this window, which is the root window to the WDT3200, to copy and move files between the WDT3200 and your desktop computer, as described in the “Synchronization” section. -
Page 26: Changing Communications Settings
ActiveSync to connect to the WDT3200. Other programs cannot use them while the WDT3200 and your desktop computer are connected. Set your baud rate on the WDT3200 - the desktop computer will match it. To check communication settings, open the Mobile Devices folder, and click File / Connection Settings. -
Page 27: Chapter 5. Useful Utilities
Chapter 5. Useful Utilities Introduction This chapter discusses software applications you can use to make your experience with the WDT3200 more productive. Scanner Setting When it is necessary for you to change the default barcode symbologies for a different application, Scanner Control Panel allows you to change default symbologies, place delimiter characters behind scanned data, and save the settings. -
Page 28: Registry Backup/Restore
Below is an example of the Scanner Control Panel/To Kpd tab. Registry Backup/Restore The Registry Backup program stores the WDT3200's registry settings for the user to access. If a cold boot is required, or the user otherwise wants to return the registry to a previous state, the user can retrieve an earlier setting from Registry Backup.
