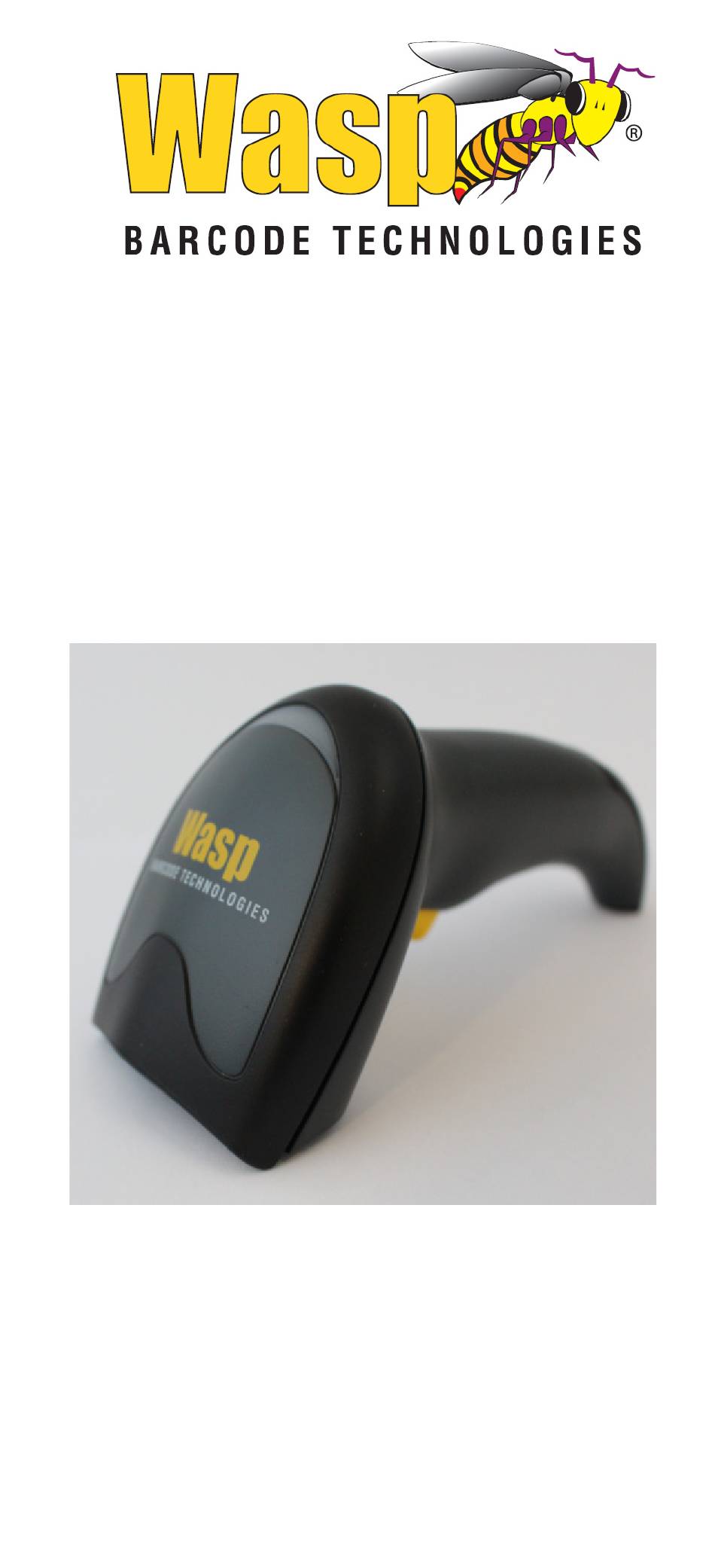

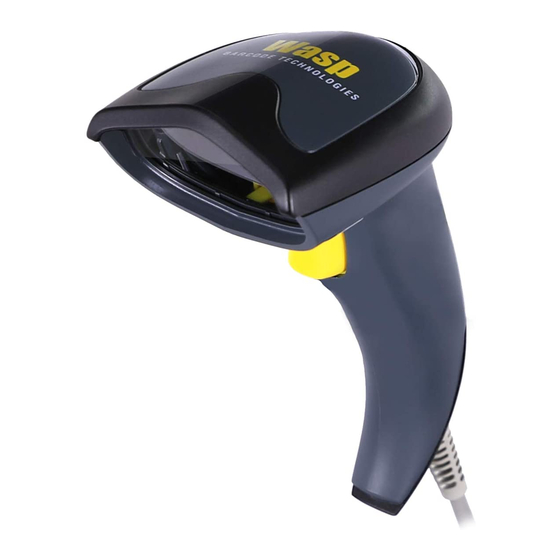

- Page 1 Wasp WDI4200 2D USB Barcode Scanner Quick Reference Guide...
- Page 2 Wasp Technologies logo are registered trademarks of Wasp Technologies Barcode Technologies in many countries, including the U.S.A. and the E.U. Duraline is a trademark of Wasp Barcode Technologies registered in many countries, including the U.S.A. and the E.U. All other brand and product names may be trade- marks of their respective owners.
-
Page 3: Table Of Contents
Setting Up the Reader ............2 Connecting to the Host Interface ........ 2 Disconnecting the Cable ..........3 Using the Wasp WDI4200 ............. 3 Parts of the Reader ............... 5 Selecting the Interface Type ..........6 Interface Selection ............6 Configuring the Interface........ - Page 4 WDI4200...
-
Page 5: End User License Agreement (Eula)
Software to any other party without Wasp's prior written consent. 1.3. Title to the licensed Software shall be and remain with Wasp or the third party from whom Wasp has obtained a license right. This Agreement does not grant to End User any intellectual property rights. - Page 6 Wasp Products). 1.6 Without prejudice of the foregoing, End User grants to Wasp and its independent accountants or consultants the right to examine End User' s books, records and accounts during End User's normal business hours to verify compliance with this Agreement. In the...
- Page 7 Rights in Technical Data and Computer Software clause at DFARS 252.227-7013(c)(1)(ii), whichever is applicable. 8.2 If End User is using the Wasp Product outside of the United States, End User must comply with the applicable local laws of the country in which the Wasp Product is used and with U.S.
- Page 8 All notices required or authorized under this Agreement shall be given in writing, and shall be effective when received, with evidence of receipt. Notices to Wasp shall be sent to the attention of Wasp Barcode Technologies, 1400 10th Street, Plano TX 75074 USA, or such other address as may be specified by Wasp in writing.
- Page 9 Italian Court of Bologna shall have exclusive jurisdiction over all matters regarding this Agreement, except that Wasp shall have the right, at its absolute discretion, to initiate proceedings in the courts of any other state, country, or territory in which End User resides, or in which any of End User' s assets are located.
- Page 10 NOTES viii WDI4200...
-
Page 11: About The Scanner
Wasp WDI4200 About the Scanner The WDI4200 area imager is an entry level product specifi- cally designed for reading long and truncated 1D codes and larger 2D codes from close distance. The WDI4200 imager has an extra-wide Field of View which captures these chal-... -
Page 12: Setting Up The Reader
1. Connect the Cable to the reader and the Host as shown below. 2. Configure the Interface (see page 3. Program the Reader starting on page (optional, as needed). Connecting to the Host Interface WEDGE RS-232 WDI4200... -
Page 13: Disconnecting The Cable
Using the Wasp WDI4200 Disconnecting the Cable Using the Wasp WDI4200 The Wasp WDI4200 normally functions by capturing and decoding codes. The aiming system is activated on trigger pull and indicates the center of the field of view which should be positioned over the bar code:... - Page 14 If the aiming system is centered you will get a good read. Successful reading is signaled by an audible tone plus a goodread green spot LED indicator. Reference the Wasp WDI4200 Product Reference Guide (PRG) on the Wasp website for more information about this feature and other programmable settings.
-
Page 15: Parts Of The Reader
Parts of the Reader Parts of the Reader 1. LED 3. Scan Window 2. Cable Release Hole 4. Trigger Quick Reference Guide... -
Page 16: Selecting The Interface Type
Information and programming options for each interface type are provided in this section. For defaults and addi- tional information associated with each interface, proceed to the corresponding chapter in the Wasp WDI4200 PRG. Configuring the Interface Scan the appropriate programming bar code to select the interface type for your system. - Page 17 Selecting the Interface Type RS-232 RS-232 standard interface Select RS232-STD RS-232 Wincor-Nixdorf Select RS232-WN RS-232 for use with OPOS/UPOS/JavaPOS Select RS-232 OPOS USB Com to simulate RS-232 standard interface Select USB-COM-STD = default value * Download the correct USB Com driver from www.waspbarcode.com Quick Reference Guide...
- Page 18 Selecting the Interface Type USB-OEM USB-OEM (can be used for OPOS/UPOS/JavaPOS) Select USB-OEM USB-COMPOSITE USB-Composite Select USB-Composite WDI4200...
-
Page 19: Keyboard Interface
Selecting the Interface Type Keyboard Interface Use the programming bar codes to select options for USB Keyboard and Wedge Interfaces. KEYBOARD AT, PS/2 25-286, 30-286, 50, 50Z, 60, 70, 80, 90 & 95 w/ Standard Key Encoding Select KBD-AT Keyboard Wedge for IBM AT PS2 with standard key encoding but without external keyboard Select KBD-AT-NK AT, PS/2 25-286, 30-286, 50, 50Z, 60, 70, 80, 90 &... - Page 20 Selecting the Interface Type KEYBOARD (continued) Keyboard Wedge for IBM AT PS2 with alternate key encoding but without external keyboard Select KBD-AT-ALT-NK USB Keyboard with standard key encoding Select USB Keyboard USB Keyboard with alternate key encoding Select USB Alternate Keyboard WDI4200...
-
Page 21: Scancode Tables
Selecting the Interface Type Scancode Tables Reference the Wasp WDI4200 PRG for information about control character emulation for keyboard interfaces. Country Mode This feature specifies the country/language supported by the keyboard. Only these interfaces support ALL Country Modes: • USB Keyboard with alternate key encoding •... - Page 22 Selecting the Interface Type COUNTRY MODE (continued) Country Mode = Belgium Country Mode = Croatia* Country Mode = Czech Republic* Country Mode = Denmark* = default value *Supports only the interfaces listed in the Country Mode feature description WDI4200...
- Page 23 Selecting the Interface Type COUNTRY MODE (continued) Country Mode = France $CKBCO13(CR) Country Mode = French Canadian* Country Mode = Germany Country Mode = Hungary* Country Mode = Italy Quick Reference Guide...
- Page 24 Selecting the Interface Type COUNTRY MODE (continued) Country Mode = Japanese 106-key* *Supports only the interfaces listed in the Country Mode feature description Country Mode = Lithuanian* Country Mode = Norway* Country Mode = Poland* Country Mode = Portugal* WDI4200...
- Page 25 Selecting the Interface Type COUNTRY MODE (continued) Country Mode = Romania* Country Mode = Spain *Supports only the interfaces listed in the Country Mode feature description Country Mode = Sweden Country Mode = Slovakia* Country Mode = Switzerland* *Supports only the interfaces listed in the Country Mode feature description Quick Reference Guide...
-
Page 26: Programming
Wasp WDI4200 PRG. Check the corresponding features section for your interface, and also the Data Editing and Symbologies chapters of the PRG. -
Page 27: Numlock
Programming Numlock This option specifies the setting of the Numbers Lock (Numlock) key while in keyboard wedge interface. This only applies to alternate key encoding interfaces. It does not apply to USB keyboard. NUMLOCK ENTER/EXIT PROGRAMMING MODE Numlock = Numlock key unchanged Numlock = Numlock key toggled = default value Quick Reference Guide... -
Page 28: Caps Lock State
This does not apply when an alternate key encoding key- board is selected. CAPS LOCK STATE ENTER/EXIT PROGRAMMING MODE Caps Lock State = Caps Lock OFF Caps Lock State = Caps Lock ON Caps Lock State = AUTO Caps Lock Enable = default value WDI4200... -
Page 29: Reading Parameters
Aiming System A number of options for customizing control of the Aiming Sys- tem are available. See the Wasp WDI4200 PRG for more infor- mation and programming bar codes. Good Read Green Spot Duration Successful reading can be signaled by a good read green spot. -
Page 30: Operating Modes
Double Read Timeout pre- vents undesired multiple reads. 1. See the Product Reference Guide (PRG) for these and other programmable features 2. Controlled by Flash On Time and Flash Off Time. Use the PRG to program these options. WDI4200... - Page 31 Operating Modes Object Detection — The scanner looks for changes within its field-of-view. The Aiming Pattern is always on to show the optimum reading area. If a predefined amount of movement is detected, the white illumination switches on. Scanning continues until a label is read or "maximum scan on time"...
-
Page 32: Pick Mode
Pick Mode = Disable Pick Mode = Enable = default value Multiple Label Reading The reader offers a number of options for multiple label reading. See the PRG or software configuration tool for descriptions of these features and programming labels. WDI4200... -
Page 33: Technical Features
Data Matrix: 10 mils: 1.0 to 9.5 cm / 0.4 to 3.7 in QR: 20 mils: 1.0 to 14 cm / 0.4 to 5.5 in Max. Resolution Code 39, 4 mil PCS (Wasp Test Chart) minimum 20% Quick Reference Guide... - Page 34 Plessey; GS1 DataBar Omnidirectional; GS1 DataBar Limited; GS1 DataBar Expanded; GS1 DataBar Truncated; DATABAR Expanded Coupon. 2D / Stacked Codes The Wasp WDI4200 scanner is capable of decoding the following sym- bologies using multiple frames (i.e. Multi-Frame Decoding): Datamatrix; Inverse Datamatrix; Datamatrix is configurable for the fol- lowing parameters:;...
-
Page 35: Led And Beeper Indications
LED and Beeper Indications LED and Beeper Indications The imager’s beeper sounds and its illumination flashes or changes color to indicate various functions or errors on the reader. A “Green Spot” also lights to indicate a good read. The tables below list these indications. Reference the PRG for a more detailed list. -
Page 36: Troubleshooting
Bar code is decoded Imager not pro- host type barcode. but not transmitted to grammed for the cor- Refer to the PRG for the host. rect host type. more information. For detailed troubleshooting, refer to the PRG (Product Reference Guide) NOTE WDI4200... -
Page 37: Wasp Technologies Limited Factory Warranty
("Wasp") hardware products are warranted against defects in ma- terial and workmanship under normal and proper use. The liability of Wasp under this warranty is limited to furnishing the labor and parts necessary to remedy any defect covered by this warranty and restore the product to its normal operating condition. - Page 38 Risk of Loss Customer shall bear risk of loss or damage for product in transit to Wasp. shall assume risk of loss or damage for product in Wasp' s pos- session. In the absence of specific written instructions for the return...
-
Page 39: Ergonomic Recommendations
• Provide a suitable working environment • Improve work procedures. Services and Support Wasp Technologies provides several services as well as technical support through its website. Log on to www.waspbarcode.com and click on the links indicated for further information. Quick Reference Guide... -
Page 40: Cleaning
The other sur- faces can also be cleaned using the same cleaning agents. Do not allow fluids to flow into the internal parts of the scanner. DO NOT use abrasive pads or cleaning agents. CAUTION WDI4200... - Page 41 Cleaning NOTES Quick Reference Guide...
- Page 42 Cleaning NOTES WDI4200...
- Page 44 ©2018 WASP and/or its affiliates. All rights reserved. WASP logo are registered trademarks of WASP in many countries, including the U.S.A. and the E.U Wasp Barcode Technologies 1400 10th Street Plano, Texas USA 75074 Telephone: (214) 547-4100 820101014 Rev. A...
