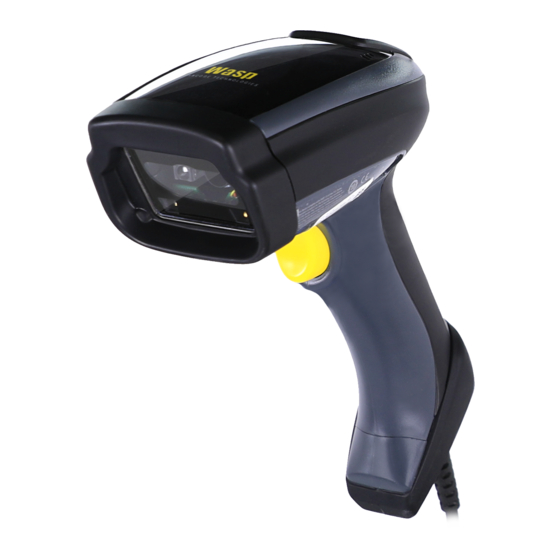

Wasp WDI7500
2D Duraline USB Barcode Scanner
Quick Reference Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WDI7500 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Wasp WDI7500

Summary of Contents for Wasp WDI7500

  • Page 1 Wasp WDI7500 2D Duraline USB Barcode Scanner Quick Reference Guide...
  • Page 2 Wasp Technologies logo are registered trademarks of Wasp Technologies Barcode Technologies in many countries, including the U.S.A. and the E.U. Duraline is a trademark of Wasp Barcode Technologies registered in many countries, including the U.S.A. and the E.U. All other brand and product names may be trade- marks of their respective owners.

  • Page 3: Table Of Contents

    Multiple Label Reading ............. 20 Technical Specifications ............21 LED and Beeper Indications ............24 Error Codes ................. 27 Cleaning ..................28 Wasp Technologies Limited Factory Warranty ....... 29 Ergonomic Recommendations ..........31 Services and Support ..............31 Quick Reference Guide...
  • Page 4 WWS650...

  • Page 5: End User Software License Agreement (Eula)

    1.1 Wasp grants to End User, a personal, non-exclusive, non-transferable, non- sublicensable, revocable, limited license to use the Software, solely on the Wasp Product in which it is embedded or for which it is intended for use, in machine-readable form only, solely for End User's internal business purposes.
  • Page 6 52.227-19 or in the Rights in Technical Data and Computer Software clause at DFARS 252.227-7013(c)(1)(ii), whichever is applicable. 8.2 If End User is using the Wasp Product outside of the United States, End User must comply with the applicable local laws of the country in which the Wasp Product is used and with U.S.
  • Page 7 End User obtained the license to govern, interpret, and enforce all of End User' s and Wasp' s respective rights, duties, and obligations arising from, or relating in any manner to, the subject matter of this Agree- ment, without regard to conflict of law principles.

  • Page 8: Software Product Policy

    Italy, without regard to the rules governing conflicts of law. Italian Court of Bologna shall have exclusive jurisdiction over all matters regarding this Agreement, except that Wasp shall have the right, at its abso- lute discretion, to initiate proceedings in the courts of any other state, country, or territory in which End User resides, or in which any of End User's assets are located.

  • Page 9: Description

    Wasp WDI7500 Description The WDI7500 is the first handheld scanners family on the market capable of reading digital watermarks, including Digimarc® Barcode. The WDI7500 is a feature-rich and rugged area imager reader. It is offered in several different models to better fit the different needs of each customer.

  • Page 10: Setting Up The Reader

    Configure the Reader starting on page 15 (optional, depends on settings needed) Connect the WDI7500 by plugging directly into the host device as shown. The power can also be supplied through an external power supply via the Interface Cable supplied with a power jack.

  • Page 11: Connecting The Cable

    Setting Up the Reader Connecting the Cable A. Rubber gasket B. Cable Holder C. Cover D. Connector Holder Slip the cable through the Cover. Push the Rubber Gas- ket onto the Cable FRONT>> Holder. Push the Cable Holder and gasket into the handle.

  • Page 12: Using The Wdi7500

    Using the WDI7500 Using the WDI7500 The WDI7500 normally functions by capturing and decod- ing bar codes. The reader is equipped with an internal Motionix™ motion-sensing function which activates the aiming system on device motion. The intelligent aiming system indicates the field of view which should be posi- tioned over the bar code: Table 1.

  • Page 13: Selecting The Interface Type

    Selecting the Interface Type Selecting the Interface Type Upon completing the physical connection between the reader and its host, proceed directly to Interface Selection below for information and programming for the interface type the reader is connected to (for example: RS-232, Key- board Wedge, USB, etc.) and scan the appropriate bar code to select your system’s correct interface type.
  • Page 14 Selecting the Interface Type RS-232 RS-232 standard interface RS-232 RS-232 Wincor-Nixdorf RS232-WN RS-232 for use with OPOS/UPOS/JavaPOS RS-232 OPOS USB Com to simulate RS-232 standard interface USB-COM Wasp WDI7500...
  • Page 15 Selecting the Interface Type USB (continued) USB-OEM (can be used for OPOS/UPOS/JavaPOS) USB-OEM a. Download the correct USB Com driver from www.waspbarcode.com USB Keyboard with standard key encoding USB-KBD USB Keyboard with alternate key encoding USB-KBD-ALT USB Keyboard for Apple computers USB-KBD-APPLE Quick Reference Guide...

  • Page 16: Scancode Tables

    Standard Key Encoding without external keyboard KBD-AT-NK IBM AT or PS/2 PCs w/Alternate Key KBD-AT-ALT IBM AT or PS/2 PCs Alternate Key Encoding without external keyboard KBD-AT-ALT-NK Scancode Tables Reference the WDI7500 PRG for information about control character emulation for keyboard interfaces. Wasp WDI7500...

  • Page 17: Country Mode

    Selecting the Interface Type Country Mode This feature specifies the country/language supported by the keyboard. This option is usable only with USB-KBD and Keyboard Wedge interface without the "Alternate Key" mode. COUNTRY MODE ENTER/EXIT PROGRAMMING MODE Country Mode = U.S. Country Mode = Belgium Country Mode = Britain Country Mode = Croatia*...
  • Page 18 COUNTRY MODE (continued) Country Mode = Czech* Country Mode = Denmark* Country Mode = France Country Mode = French Canadian* Country Mode = Germany Country Mode = Hungary* *Supports only the interfaces listed in the Country Mode feature description Wasp WDI7500...
  • Page 19 Selecting the Interface Type COUNTRY MODE (continued) Country Mode = Italy Country Mode = Japanese 106-key* Country Mode = Lithuanian* Country Mode = Norway* Country Mode = Poland* Country Mode = Portugal* *Supports only the interfaces listed in the Country Mode feature description Quick Reference Guide...
  • Page 20 Selecting the Interface Type COUNTRY MODE (continued) Country Mode = Romania* Country Mode = Spain Country Mode = Sweden Country Mode = Slovakia* Country Mode = Switzerland* *Supports only the interfaces listed in the Country Mode feature description Wasp WDI7500...

  • Page 21: Caps Lock State

    Selecting the Interface Type Caps Lock State This option specifies the format in which the reader sends character data. This applies to keyboard wedge interfaces. This does not apply when an alternate key encoding key- board is selected. ENTER/EXIT PROGRAMMING MODE Caps Lock State = Caps Lock OFF Caps Lock State = Caps Lock ON Caps Lock State = AUTO Caps Lock Enable...

  • Page 22: Numlock

    "Reset Default Settings" on page 15, require only the scan of that single label to enact the change. Other bar codes require the reader to be placed in Pro- gramming Mode prior to scanning them. Scan an ENTER/ Wasp WDI7500...

  • Page 23: Configure Other Settings

    Programming EXIT bar code once to enter Programming Mode; scan the desired parameter settings; scan the ENTER/EXIT bar code again to accept your changes, which exits Program- ming Mode and returns the reader to normal operation. Configure Other Settings Additional programming bar codes are available in the PRG to allow for customizing programming features.

  • Page 24: Reading Parameters

    Move the reader toward the target and center the aiming pattern and illumination system to capture and decode the image. See Using the WDI7500 on page 4 for more information. The aiming system will briefly switch off after the acquisi- tion time, and if no code is decoded will switch on again before the next acquisition.

  • Page 25: Digital Watermark Reading

    Reading Parameters Digital Watermark Reading ENTER/EXIT PROGRAMMING MODE Disable Enable Quick Reference Guide...

  • Page 26: Operating Modes

    Scanning continues until a label is read or "maximum scan on time" is reached. 1. See the Product Reference Guide (PRG) for these and other programmable features 2. Controlled by Flash On Time and Flash Off Time. Use the PRG to program these options. Wasp WDI7500...

  • Page 27: Motion Aiming Control

    Operating Modes Scan Mode (continued) ENTER/EXIT PROGRAMMING MODE Scan Mode = Trigger Single Scan Mode = Trigger Pulse Multiple Scan Mode = Trigger Hold Mul- Scan Mode = Flashing tiple Scan Mode = Stand Mode Scan Mode = Always On Motion Aiming Control This feature configures the ability of the scanner to Enable/Disable the Aiming system when motion is...

  • Page 28: Pick Mode

    ENTER/EXIT PROGRAMMING MODE PIck Mode = Disable Pick Mode = Enable Multiple Label Reading The reader offers a number of options for multiple label reading. See the PRG or software configuration tool for descriptions of these features and programming labels. Wasp WDI7500...

  • Page 29: Technical Specifications

    Technical Specifications Technical Specifications The following table contains Physical and Performance Characteristics, User Environment and Regulatory infor- mation. Item Description PHYSICAL CHARACTERISTICS Height: 212 mm Dimensions Length: 110 mm Width: 74 mm Weight (without cable) 330 gr (without cable) ELECTRICAL CHARACTERISTICS Input Voltage 5 VDC +/- 5% Operating Current (typical):...
  • Page 30 10 mils: 2-25 cm 7.5 mils: 7-14 cm DataMatrix 10 mils: 4-18 cm a. 13 mils DOF based on EAN. All other 1D codes are Code 39. All labels grade A,300 lux ambient light, 20°C, label inclination 10° Wasp WDI7500...
  • Page 31 Technical Specifications DECODE CAPABILITY 1D BAR CODES GS1 Databar linear codes, UPC/EAN (A,E,13,8), UPC/EAN with P2/ P5 Addons, UPC/EAN Coupons, ISBN, Code128, EAN128, ISBT128, Code39, Code39 Full ASCII, Code39 CIP, Code 32, Codabar, Inter- leaved 2 of 5, IATA, Industrial 2 of 5, Standard 2 of 5, Code11, MSI, Plessey, Code 93, Follet 2/5 2D / STACKED CODES DataMatrix, MaxiCode and QR Codes(QR, Micro QR and Multiple...

  • Page 32: Led And Beeper Indications

    For example, certain indications such as the power-up beep can be disabled using programming bar code labels. INDICATOR DESCRIPTION LED BEEPER Reader beeps four times at The reader is in Power-up highest fre- the process of Beep quency and vol- powering-up. ume upon power-up. Wasp WDI7500...
  • Page 33 LED and Beeper Indications INDICATOR DESCRIPTION LED BEEPER LED behavior The reader will for this indica- beep once at tion is configu- current fre- A label has been rable via the quency, volume, Good Read successfully feature “Good mono/bi-tonal Beep scanned by the Read: When to setting and...
  • Page 34 Pro- and the reader has quency beeps gramming exited Program- followed by ming Mode. reset beeps. Reader sounds Label Pro- two times at gramming Cancel label has low frequency Mode Cancel been scanned. and current Item Entry volume. Wasp WDI7500...

  • Page 35: Error Codes

    Error Codes Error Codes Upon startup, if the reader sounds a long tone, this means the reader has not passed its automatic Selftest and has entered FRU (Field Replaceable Unit) isolation mode. If the reader is reset, the sequence will be repeated. Press and release the trigger to hear the FRU indication code.

  • Page 36: Cleaning

    Do not use abrasive or aggressive cleansing agents or abrasive pads to clean scan win- dows or plastics. Do not spray or pour liquids directly onto the CAUTION unit. Wasp WDI7500...

  • Page 37: Wasp Technologies Limited Factory Warranty

    Wasp hardware products are war- ranted against defects in material and workmanship under nor- mal and proper use. The liability of Wasp under this warranty is limited to furnishing the labor and parts necessary to remedy any defect covered by this warranty and restore the product to its normal operating condition.
  • Page 38 Wasp Technologies Limited Factory Warranty vice center, with shipping charges prepaid. Wasp shall pay for the return of the product to Customer if the shipment is to a location within the country in which the Wasp service center is located.

  • Page 39: Ergonomic Recommendations

    Risk of Loss Customer shall bear risk of loss or damage for product in transit to Wasp. Wasp shall assume risk of loss or damage for product in Wasp’s possession. In the absence of specific written instruc- tions for the return of product to Customer, Wasp will select the carrier, but Wasp shall not thereby assume any liability in con- nection with the return shipment.
  • Page 40 Services and Support Wasp WDI7500...
  • Page 41 Services and Support Quick Reference Guide...
  • Page 42 Services and Support Wasp WDI7500...
  • Page 44 ©2013-2018 Wasp and its Group companies - All right reserved. Wasp Technologies and the Wasp Technologies logo are registered trademarks of Wasp Barcode Technologies in many countries, including the U.S.A. and the E.U. Wasp Barcode Technologies 1400 10th Street Plano, Texas...
