Wasp WDI9600
1D Barcode Reader
Quick Reference Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WDI9600 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Wasp WDI9600

Summary of Contents for Wasp WDI9600

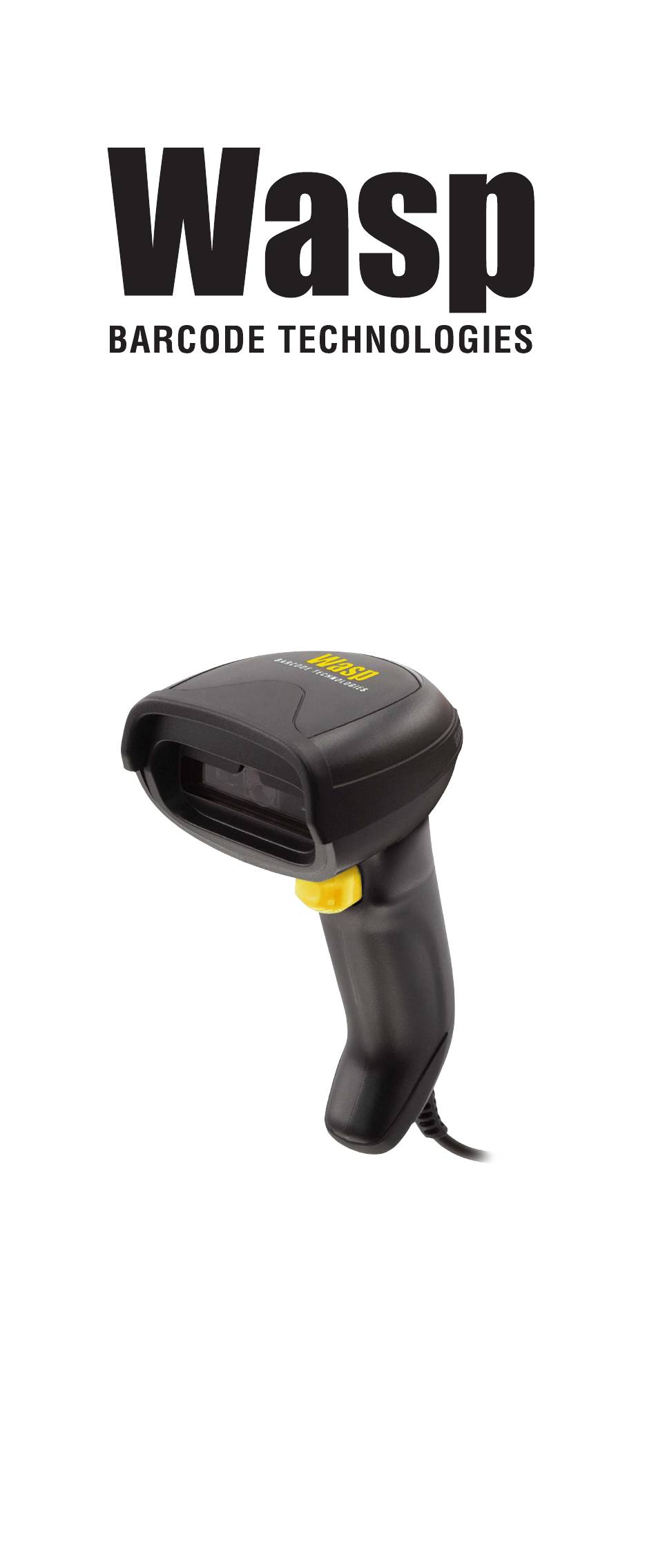

  • Page 1 Wasp WDI9600 1D Barcode Reader Quick Reference Guide...
  • Page 2 Disclaimer Wasp has taken reasonable measures to provide information in this manual that is complete and accurate, however, Wasp shall not be liable for technical or editorial errors or omissions contained herein, nor for inci- dental or consequential damages resulting from the use of this material.

  • Page 3: Table Of Contents

    Hands Free Stand/Holder ............. 2 Setting Up the Reader ............ 3 Connecting to the Host Interface.......... 3 Disconnecting the Cable ..........4 Using the Wasp WDI9600........4 Aiming System ..............4 Relative Size and Location of Aiming Pattern .... 5 Linear Bar ..............5 Relative Size and Location of Green Spot ....
  • Page 4 Contents Cleaning Procedure ............. 31 Common Cleaning Solutions..........31 Cleaning enclosure and window surfaces ....32 Wasp WDI9600 www.waspbarcode.com...

  • Page 5: Description

    The Wasp WDI9600 readers’ ability to capture bar codes from near to far, to read both high-density and low resolu- tion codes, to decode hard-to-read, poor or damaged codes and to easily read bar codes from mobile devices make these readers the perfect choice for today’s...

  • Page 6: Hands Free Stand/Holder

    It can also be used as a holder. The reader automatically rec- ognizes the insertion and changes its Scan Mode to allow the user to operate in hands-free mode. Wasp WDI9600 www.waspbarcode.com...

  • Page 7: Setting Up The Reader

    Setting Up the Reader SETTING UP THE READER Follow the steps below to connect and get your reader up and communicating with its host. Connect the Cable to the reader and the Host as shown below. Configure the Interface (see page Program the Reader starting on page 16 (optional,...

  • Page 8: Disconnecting The Cable

    (see the pictures below). USING THE Wasp WDI9600 The Wasp WDI9600 normally functions by capturing and decoding codes. The reader is equipped with an internal Motionix™ motion-sensing function which activates the aiming system on device motion. The intelligent aiming...

  • Page 9: Relative Size And Location Of Aiming Pattern

    Successful reading is signaled by an audible tone plus a good-read green spot LED indicator. Refer to the Wasp WDI9600 Product Reference Guide (PRG) for more information about this feature and other programmable settings.

  • Page 10: Parts Of The Reader

    • Keyboard Wedge • Information and programming options for each interface type are provided in this section. For defaults and addi- tional information associated with each interface, proceed to the corresponding chapter in the Wasp WDI9600 PRG. www.waspbarcode.com Wasp WDI9600...

  • Page 11: Configuring The Interface

    Configuring the Interface CONFIGURING THE INTERFACE Scan the appropriate programming bar code to select the interface type for your system. NOTE: Unlike some other programming features and options, interface selections require that you scan only one programming bar code label. DO NOT scan an ENTER/EXIT bar code prior to scan- ning an interface selection bar code.

  • Page 12: Usb Interface

    USB hub, and is powered by it. No additional power supply is required. When using a USB interface, the reader auto- detects the USB cable and defaults to the USB keyboard interface. Select USB Keyboard (with standard key encoding) Select USB-COM-STD (simulates RS-232 standard interface) www.waspbarcode.com Wasp WDI9600...
  • Page 13 Configuring the Interface USB (CONTINUED) Select USB Alternate Keyboard (with alternate key encoding) Select USB-OEM Select USB-KBD-APPLE (for Apple computers) QUICK REFERENCE GUIDE...

  • Page 14: Keyboard Wedge Interface

    (IBM AT PS2 with standard key encoding but without external kbd.) Select KBD-AT-ALT (AT, PS/2 25-286, 30-286, 50, 50Z, 60, 70, 80, 90 & 95 w/Alternate Key) Select KBD-AT-ALT-NK (for IBM AT PS2 with alternate key encoding but without external keyboard) www.waspbarcode.com Wasp WDI9600...
  • Page 15 Configuring the Interface KEYBOARD (CONTINUED) Select KBD-XT (PC/XT w/Standard Key Encoding) Select KBD-IBM-3153 (for IBM Terminal 3153) Select KBD-IBM-M for IBM Terminals 31xx, 32xx, 34xx, 37xx make only keyboard) Select KBD-IBM-MB (for IBM Terminals 31xx, 32xx, 34xx, 37xx make break keyboard) Select KBD-DIG-VT (for DIGITAL Terminals VT2xx, VT3xx, VT4xx)

  • Page 16: Country Mode

    All other interfaces support ONLY the following Country Modes: U.S., Belgium, Britain, France, Germany, Italy, Spain, Sweden. COUNTRY MODE ENTER/EXIT PROGRAMMING MODE Country Mode = U.S. Country Mode = Belgium Country Mode = Britain www.waspbarcode.com Wasp WDI9600...
  • Page 17 Configuring the Interface COUNTRY MODE (CONTINUED) Country Mode = Croatia* Country Mode = Czech Republic* Country Mode = Denmark* Country Mode = France Country Mode = French Canadian Country Mode = Germany *Supports only the interfaces listed in the Country Mode feature description QUICK REFERENCE GUIDE...
  • Page 18 COUNTRY MODE (CONTINUED) Country Mode = Hungary* Country Mode = Italy Country Mode = Japanese 106-key* Country Mode = Lithuanian Country Mode = Norway* Country Mode = Poland* *Supports only the interfaces listed in the Country Mode feature description www.waspbarcode.com Wasp WDI9600...
  • Page 19 Configuring the Interface COUNTRY MODE (CONTINUED) Country Mode = Portugal* Country Mode = Romania* Country Mode = Slovakia Country Mode = Spain Country Mode = Sweden Country Mode = Switzerland* *Supports only the interfaces listed in the Country Mode feature description QUICK REFERENCE GUIDE...

  • Page 20: Programming

    Interfaces section, select other options and customize your reader through use of the programming bar codes avail- able in the Wasp WDI9600 PRG. Check the correspond-ing features section for your interface, and also the Data Editing and Symbologies chapters of the PRG.

  • Page 21: Numlock

    Numlock NUMLOCK This option specifies the setting of the Numbers Lock (Numlock) key while in keyboard wedge interface. This only applies to alternate key encoding interfaces. It does not apply to USB keyboard. NUMLOCK ENTER/EXIT PROGRAMMING MODE ♦ Numlock = Numlock key unchanged Numlock = Numlock key toggled ♦...

  • Page 22: Caps Lock State

    This applies to keyboard wedge interfaces. This does not apply when an alternate key encoding key- board is selected. CAPS LOCK STATE ENTER/EXIT PROGRAMMING MODE ♦ Caps Lock OFF Caps Lock ON AUTO Caps Lock Enable ♦ = default value www.waspbarcode.com Wasp WDI9600...

  • Page 23: Reading Parameters

    READING PARAMETERS Move the reader toward the target and center the aiming pattern and illumination system to capture and decode the image. See "Using the Wasp WDI9600" on page 4 more information. The aiming system will briefly switch off after the acquisi- tion time, and if no code is decoded will switch on again before the next acquisition.
  • Page 24 Good Read Green Spot Duration GREEN SPOT DURATION (CONTINUED) Medium (500 ms) Long (800 ms) ♦ = default value www.waspbarcode.com Wasp WDI9600...

  • Page 25: Operating Modes

    Operating Modes OPERATING MODES Scan Mode The reader can be set to operate in one of several scan- ning modes. See the PRG for more information and set- tings for any of the options: This mode is associated with typ- Trigger Single (Default) ical handheld reader operation.
  • Page 26 Operating Modes SCAN MODE ENTER/EXIT PROGRAMMING MODE ♦ Trigger Single Trigger Pulse Multiple Trigger Hold Multiple ♦ = default value www.waspbarcode.com Wasp WDI9600...
  • Page 27 Operating Modes SCAN MODE (CONTINUED) Flashing Always ON Stand Mode QUICK REFERENCE GUIDE...

  • Page 28: Technical Specifications

    -40 °C to + 70 °C (-40 ° F to +158 °F) ture Humidity 95% non condensing IEC 68-2-32 Tested Drop Resistance 1.8 m (6 ft) ESD Protection 16 KV Protection Class IP52 Cable Length Refer to www.waspbarcode.com www.waspbarcode.com Wasp WDI9600...
  • Page 29 Technical Specifications OPTICAL CHARACTERISTICS Optical Format CCD solid state sensor (2500 pixels) LED Source Illumination System Dual LED Array 612-630nm Ambient Light Up to 130,000 lux OPTICAL CHARACTERISTICS (CONTINUED) Tilt Tolerance +/- 45° Pitch Tolerance +/- 65° Skew Tolerance +/- 65° Field of View HORIZONTAL 36°...
  • Page 30 The depth of field is defined by an arc and not a plane. Shorter bar codes of a given resolution can be read at a further distance than longer bar codes (as explained in the image below). b. All labels grade A, typical environmental light, 20°C, label inclination 10°. www.waspbarcode.com Wasp WDI9600...

  • Page 31: Led And Beeper Indications

    LED and Beeper Indications LED AND BEEPER INDICATIONS The reader’s beeper sounds and its illumination flashes or changes color to indicate various functions or errors on thereader. A “Green Spot” also lights to indicate a good read. The tables below list these indications. Reference the PRG for a more detailed list.

  • Page 32: Troubleshooting

    Bar code is Scan the appropriate Reader not decoded but not host type bar code. programmed for the transmitted to the Refer to the PRG for correct host type. host. more information. www.waspbarcode.com Wasp WDI9600...

  • Page 33: Warranty

    Warranty WARRANTY Wasp warrants that the Products shall be free from defects in materials and workmanship under normal and proper use during the Warranty Period. Products are sold on the basis of specifications applicable at the time of manufacture and Wasp has no obligation to modify or update Products once sold.

  • Page 34: Ergonomic Recommendations

    • Improve work procedures. • TECHNICAL SUPPORT Support Through the Website Wasp provides several services as well as technical support through its website. Log on to (www.waspbarcode.com). For quick access, from the home page click on the search icon , and type in the name of the product you’re look- ing for.
  • Page 35 Follow the procedures described in this instruction sheet to keep your Wasp device in good operating condition. WARNING: Be sure to turn off power and unplug the device from electrical outlet before cleaning.
  • Page 36 Use the cloth to wipe down the surface of the unit. Use cotton swabs, lightly moistened, to reach in corners and crevices. Use another clean dry cloth to remove any residue of the cleaning agent and ensure the unit is dry. www.waspbarcode.com Wasp WDI9600...
  • Page 38 ©2021 Wasp B arcode Technologies and /or its affiliates. • All rights reserved • Without limiting the rights under copyright, no part of this documentation may be reproduced, stored in or introduced into a retrieval system, or transmitted in any form or by any means, or...
