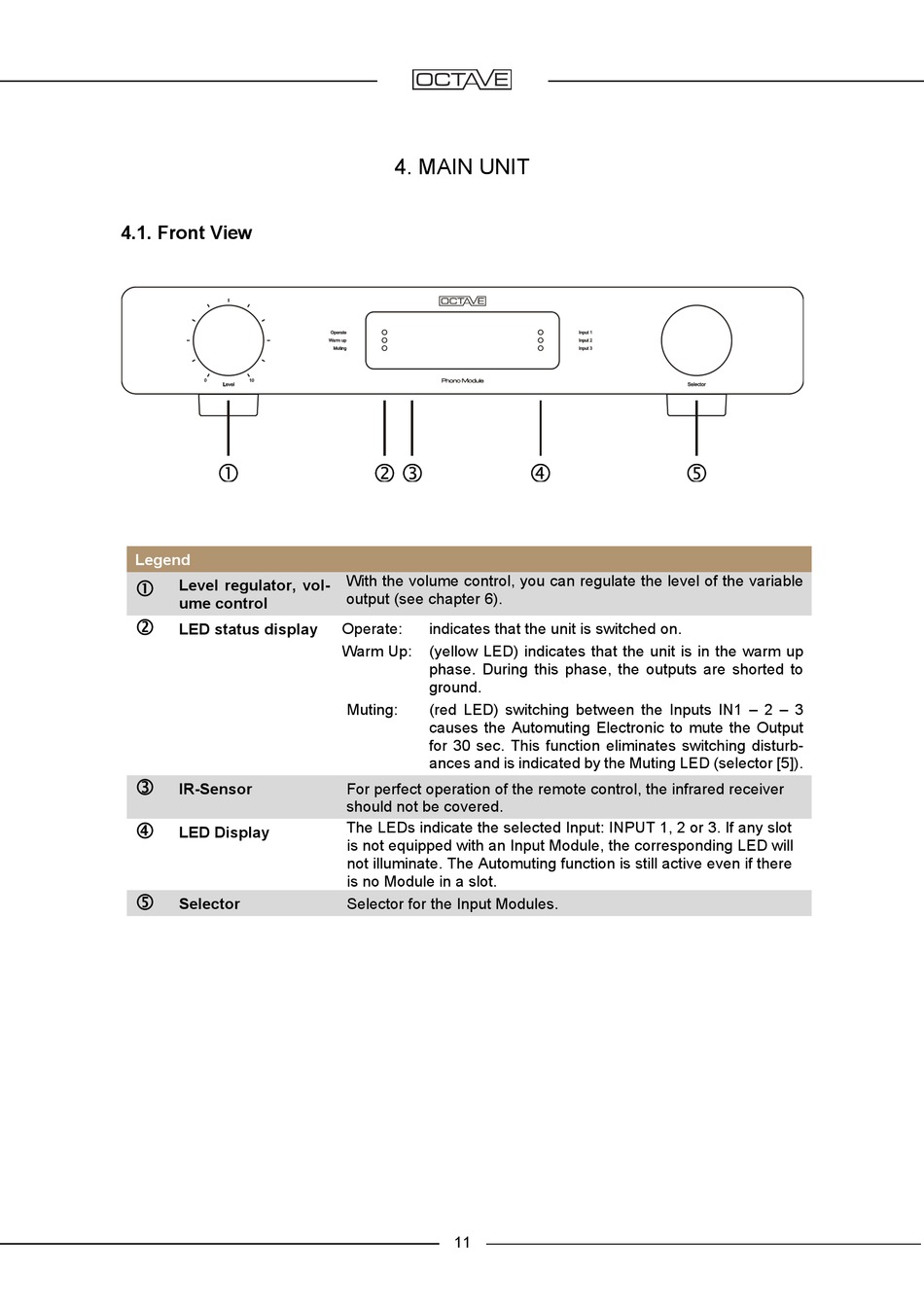

4.1. Front View
Legend
Level regulator, vol-
ume control
LED status display
IR-Sensor
LED Display
Selector
4. MAIN UNIT
With the volume control, you can regulate the level of the variable
output (see chapter 6).
Operate:
indicates that the unit is switched on.
Warm Up:
(yellow LED) indicates that the unit is in the warm up
phase. During this phase, the outputs are shorted to
ground.
Muting:
(red LED) switching between the Inputs IN1 – 2 – 3
causes the Automuting Electronic to mute the Output
for 30 sec. This function eliminates switching disturb-
ances and is indicated by the Muting LED (selector [5]).
For perfect operation of the remote control, the infrared receiver
should not be covered.
The LEDs indicate the selected Input: INPUT 1, 2 or 3. If any slot
is not equipped with an Input Module, the corresponding LED will
not illuminate. The Automuting function is still active even if there
is no Module in a slot.
Selector for the Input Modules.
11
