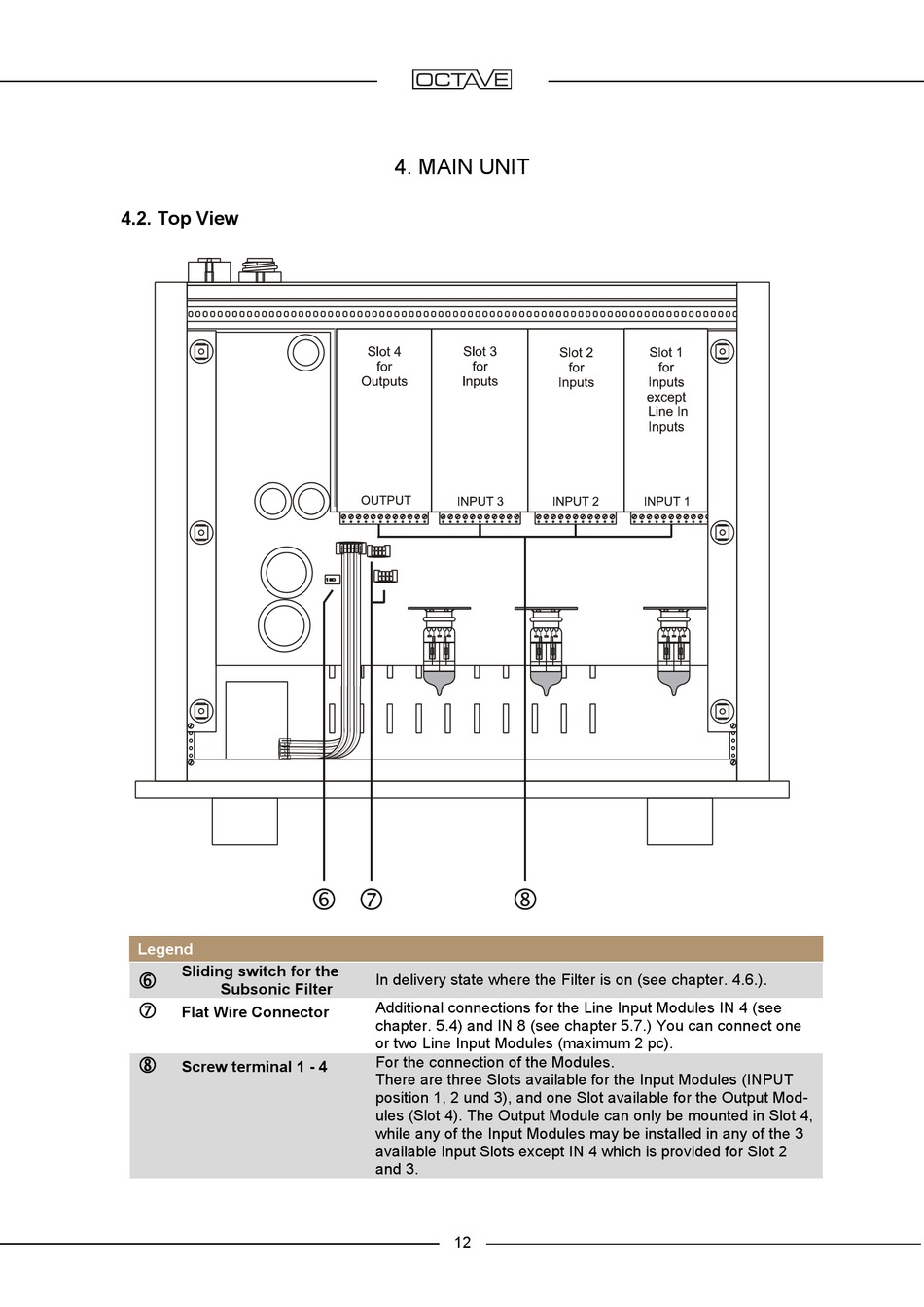

4.2. Top View
Legend
Sliding switch for the
Subsonic Filter
Flat Wire Connector
Screw terminal 1 - 4
4. MAIN UNIT
In delivery state where the Filter is on (see chapter. 4.6.).
Additional connections for the Line Input Modules IN 4 (see
chapter. 5.4) and IN 8 (see chapter 5.7.) You can connect one
or two Line Input Modules (maximum 2 pc).
For the connection of the Modules.
There are three Slots available for the Input Modules (INPUT
position 1, 2 und 3), and one Slot available for the Output Mod-
ules (Slot 4). The Output Module can only be mounted in Slot 4,
while any of the Input Modules may be installed in any of the 3
available Input Slots except IN 4 which is provided for Slot 2
and 3.
12
