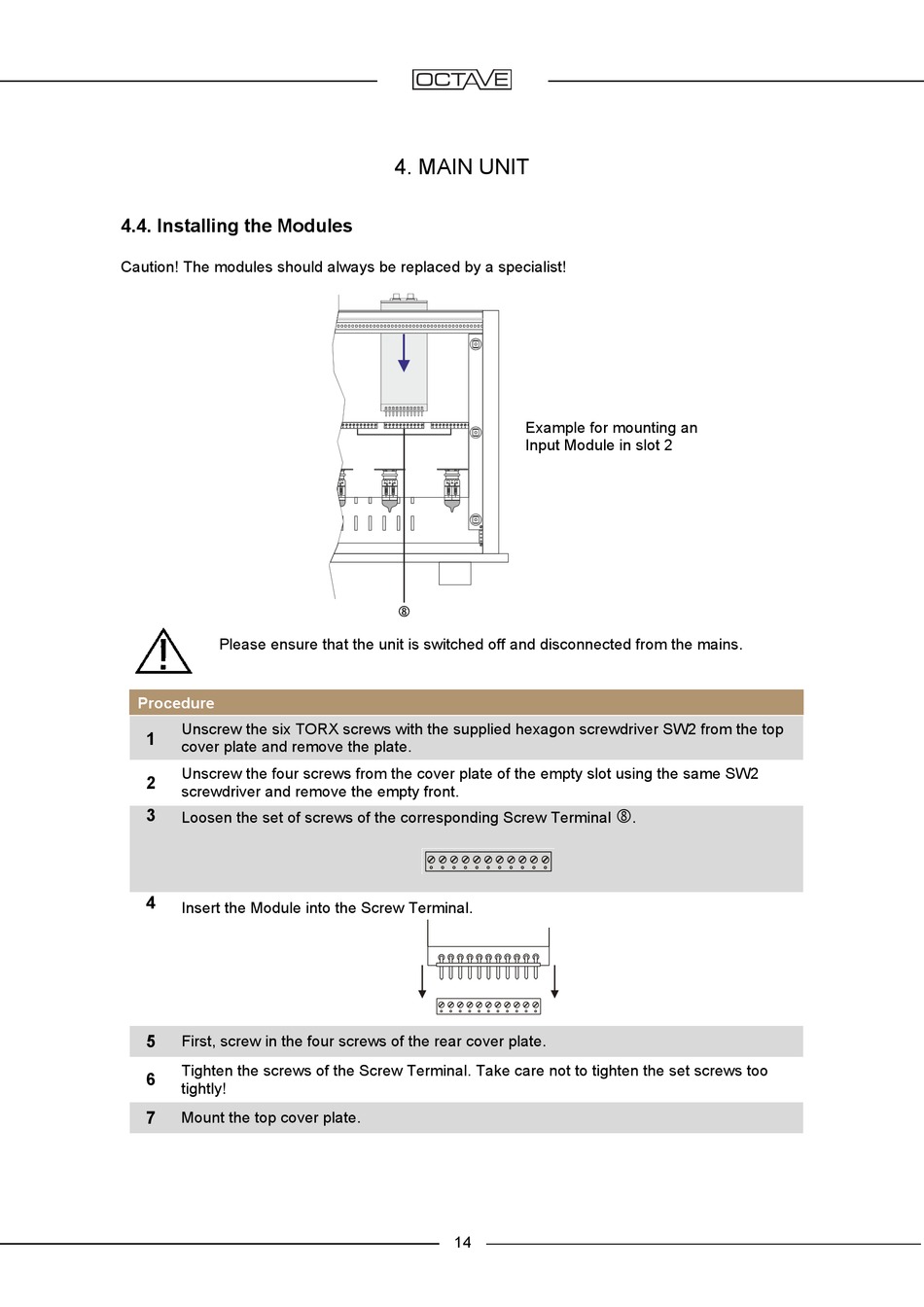

4.4. Installing the Modules

Caution! The modules should always be replaced by a specialist!
Please ensure that the unit is switched off and disconnected from the mains.
Procedure
Unscrew the six TORX screws with the supplied hexagon screwdriver SW2 from the top
1
cover plate and remove the plate.
Unscrew the four screws from the cover plate of the empty slot using the same SW2
2
screwdriver and remove the empty front.
3
Loosen the set of screws of the corresponding Screw Terminal
4
Insert the Module into the Screw Terminal.
5
First, screw in the four screws of the rear cover plate.
Tighten the screws of the Screw Terminal. Take care not to tighten the set screws too
6
tightly!
7
Mount the top cover plate.
4. MAIN UNIT
Example for mounting an
Input Module in slot 2
14
.
