5. Grinding Guide
5.1 Installing tooling onto 12" Grinding Plate
This illustration below shows how to install tooling to the grinding plate

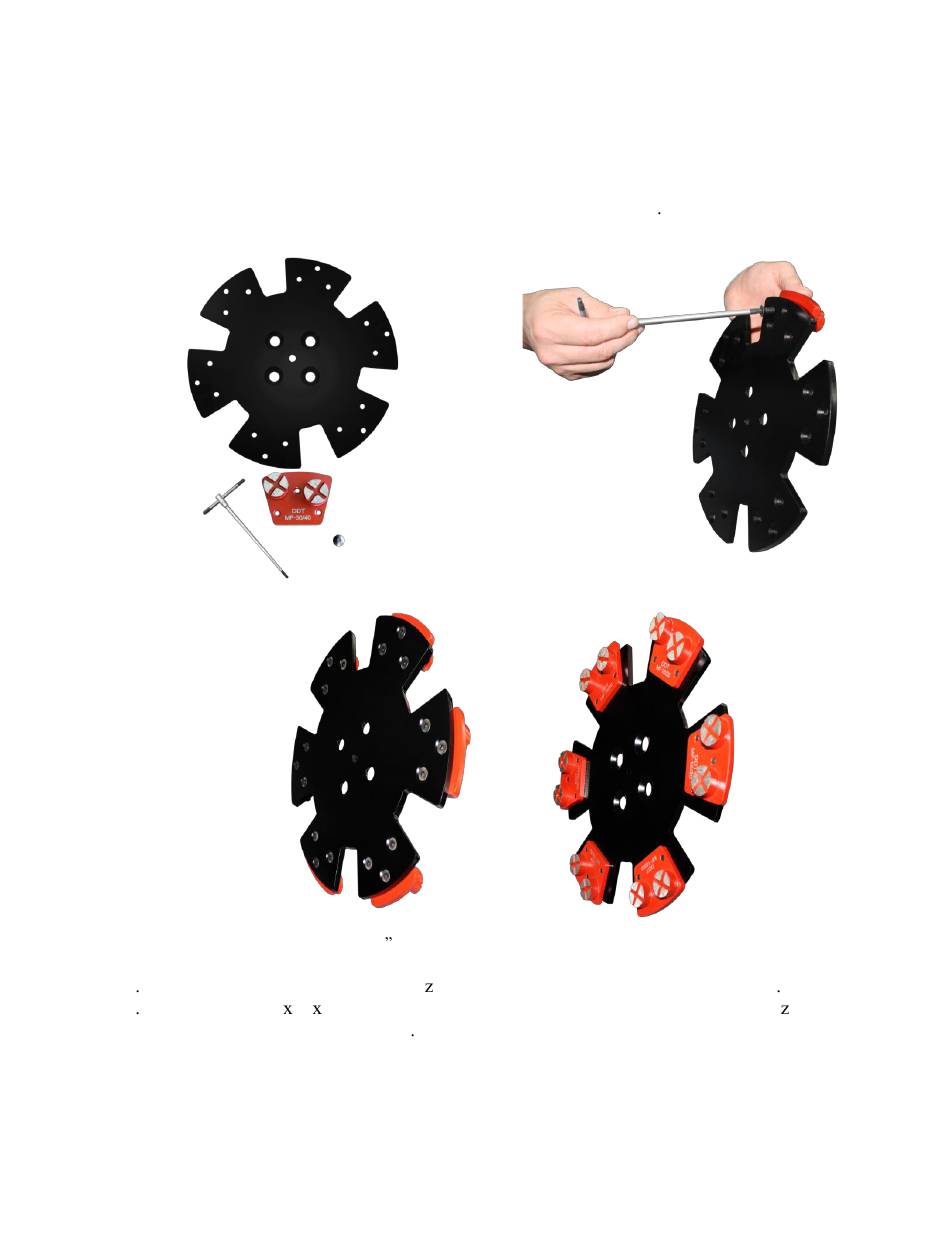

Figure 5-1 How to install tooling onto a 12 grinding plate
1 Align the holes in the tooling trape oid plate with the holes in the grinding plate
2 Screw three M6 1 14 screws into the grinding plate and into the tooling trape oid
holes using a 4mm Allen wrench
