Summary of Contents for Drucker Diagnostics SERO 12

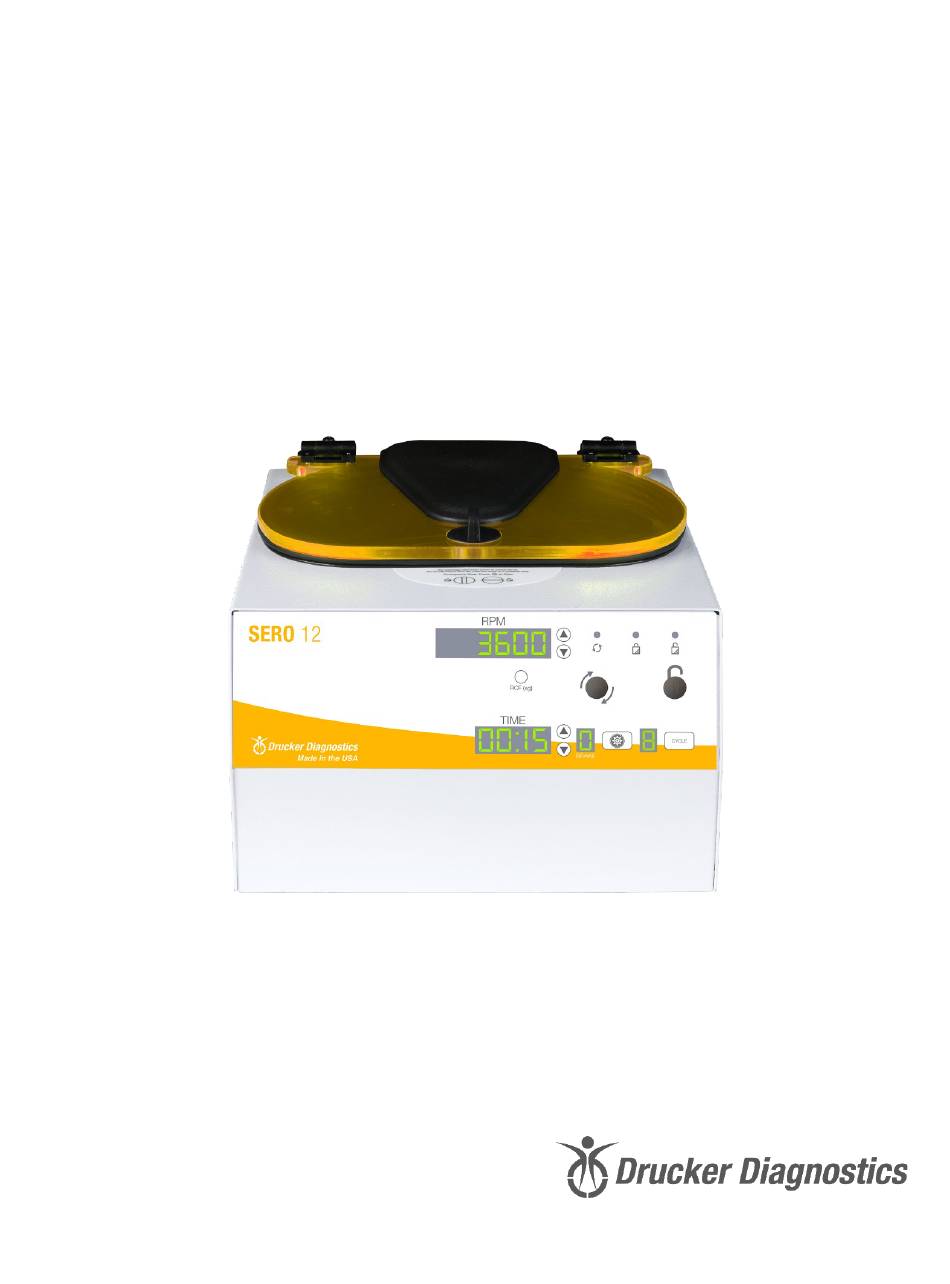

- Page 1 SERO 12 Operator’s Manual...
- Page 2 This page intentionally left blank.
-
Page 3: Table Of Contents
ABLE OF ONTENTS Symbols..................................1 Model Description ............................... 2 Features ..................................2 Intended Use ................................2 Warranty ..................................2 Caution and Warning Statements ..........................3 Applications ................................4 Agglutination Tests ..............................4 Incubation ................................4 Cell Washing ................................4 Initial Setup .................................. 5 Operation .................................. - Page 4 This page intentionally left blank.
-
Page 5: Symbols
Denotes conformity to specific safety standards and regulations. FDA LISTED FDA Listed Denotes that the product has been properly listed with the FDA. Denotes conformity to quality standards and quality management ISO Certification systems. Drucker Diagnostics – Customer Service: +1-814-692-7661 – CustomerService@DruckerDiagnostics.com | Page 1... -
Page 6: Model Description

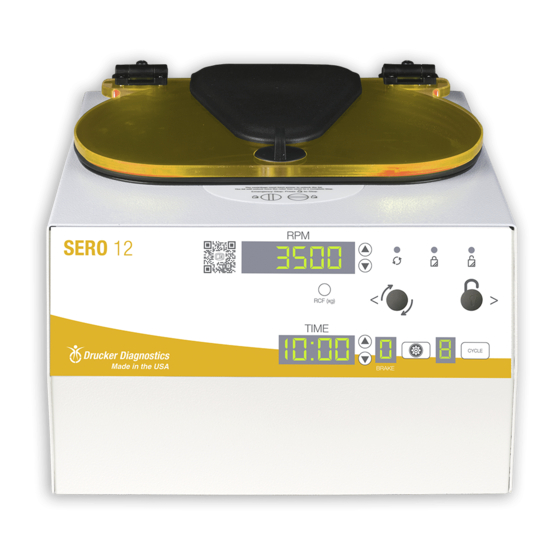

ODEL ESCRIPTION The SERO 12 is a compact, highly versatile centrifuge for use in blood banks and clinical laboratories. It is specifically designed to minimize centrifugation time and simplify many basic test procedures, such as blood typing, manual cell washing, cross-matching, genotyping, Coombs testing, and Ant-Rh titers. -
Page 7: Caution And Warning Statements
Operation of this equipment in a residential area may cause interference, in which case the user will be required to correct the interference at his own expense. Recommendations for Prevention of HIV Transmission in Health Care Settings. MMWR 1987; 36 (Supplement #2S) Drucker Diagnostics – Customer Service: +1-814-692-7661 – CustomerService@DruckerDiagnostics.com | Page 3... -
Page 8: Applications
Allow the water to drain completely prior to transporting tubes. ASHING The SERO 12 rotor may be conveniently used for many tests that require single or multiple blood cell washings. Because the tubes are maintained at an angle of 45° during centrifugation, the centrifuge is highly efficient in washing cells. -
Page 9: Initial Setup
60 seconds have elapsed, press the UNLOCK button. The lid will unlock for another 15 seconds. o Turn the lid knob counterclockwise and open the lid. The lid light will turn off. You may now safely remove the samples. Drucker Diagnostics – Customer Service: +1-814-692-7661 – CustomerService@DruckerDiagnostics.com | Page 5... -
Page 10: Quick Start
Pressing the UNLOCK button during operation will terminate the Stop run and unlock the lid after the rotor has come to a stop. Cycle Selection Press the CYCLE button to select the desired saved cycle. Drucker Diagnostics – Customer Service: +1-814-692-7661 – CustomerService@DruckerDiagnostics.com | Page 6... -
Page 11: Settings
While in the advanced menu, navigate to “Brake”. Use the UP and Values DOWN buttons next to the TIME screen to turn brake on and off. Exit the Menu Press the GEAR button. Drucker Diagnostics – Customer Service: +1-814-692-7661 – CustomerService@DruckerDiagnostics.com | Page 7... -
Page 12: Changing The Audible Beeper
With the lid open and the unit powered, press and hold the START Display Cycle Count button. The cycle count will be displayed until the START button is released. Drucker Diagnostics – Customer Service: +1-814-692-7661 – CustomerService@DruckerDiagnostics.com | Page 8... -
Page 13: Modifying A Preset
>. Press the GEAR button to return to the main programming menu. Save and Exit Press the GEAR button, followed by the CYCLE button to exit Settings Mode menu. Drucker Diagnostics – Customer Service: +1-814-692-7661 – CustomerService@DruckerDiagnostics.com | Page 9... -
Page 14: Deleting A Cycle
If preset lock is set, it must be canceled before Single Cycle lock can be set Hold the UNLOCK button. Three beeps will confirm that the cycle Cancel Lock selection is now unlocked. Drucker Diagnostics – Customer Service: +1-814-692-7661 – CustomerService@DruckerDiagnostics.com | Page 10... -
Page 15: Balancing Loads
6 Tubes 12 Tubes Drucker Diagnostics – Customer Service: +1-814-692-7661 – CustomerService@DruckerDiagnostics.com | Page 11... -
Page 16: Care And Preventative Maintenance
Fully/partially halogenated hydrocarbons, ketones, esters, ethers, benzyls, ethyl benzenes, and all other chemicals not prescribed by the manufacturer shall not be used as they may cause damage to the rotor chamber, rotor, accessories, and centrifuge exterior and void the warranty. Drucker Diagnostics – Customer Service: +1-814-692-7661 – CustomerService@DruckerDiagnostics.com | Page 12... -
Page 17: Troubleshooting
Pull the mechanism towards the control panel and then unlatch and open the lid. o If the unit is damaged, contact Customer Service for assistance. Drucker Diagnostics – Customer Service: +1-814-692-7661 – CustomerService@DruckerDiagnostics.com | Page 13... -
Page 18: General Specifications
Power Requirement 415 Watts Centrifuge Motor ½ H.P. Brushless Max G-Force 1,040 xg Max Speed 3,600 RPM Min Cycle Time 15 seconds Max Cycle Time 99 minutes and 45 seconds Drucker Diagnostics – Customer Service: +1-814-692-7661 – CustomerService@DruckerDiagnostics.com | Page 14... -
Page 19: Calculating The G-Force
Lid LED Assembly, Yellow 03-0-0003-0577 Sero 12 Front Panel Label 03-1-0001-0090 Button Cover No Emboss 03-1-0001-0089 Button Cover Embossed 03-1-0002-0093 Button Spacer 031-0002-0095 Button Protector 00-100-100-005 Replacement Grommet & Bushing Kit Drucker Diagnostics – Customer Service: +1-814-692-7661 – CustomerService@DruckerDiagnostics.com | Page 15... - Page 20 Complies with UL61010-1/CSA C22.2 No. 61010-1, IEC61010-2-020, and IEC61326-1 Protected by U.S. Patents #6,811,531, # 7,422,554, #D718,463, & #D734,489. Other Patents Pending RoHS FDA LISTED Compliant INSTRUCTIONS FOR DISPOSAL OF WEEE BY USERS IN THE EUROPEAN UNION This product must not be disposed of with other waste. Instead, it is the user’s responsibility to dispose of their waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment.
