REVEX
3PH from 120A to 210A
Confi gure and monitor the analog inputs:
Analog Input 1: click Ai 1 to view the signal type
Input Local/Remote selection
(remote) or the slider (local) to set the set point.
Reference: drag the slider, click the increment (+) or decrement (-) buttons or click one of the three
percentages (0%, 50% or 100%) to set the set point when the set point source is set to local.
Analog Input 2: click Ai 2 to view the signal type and
function

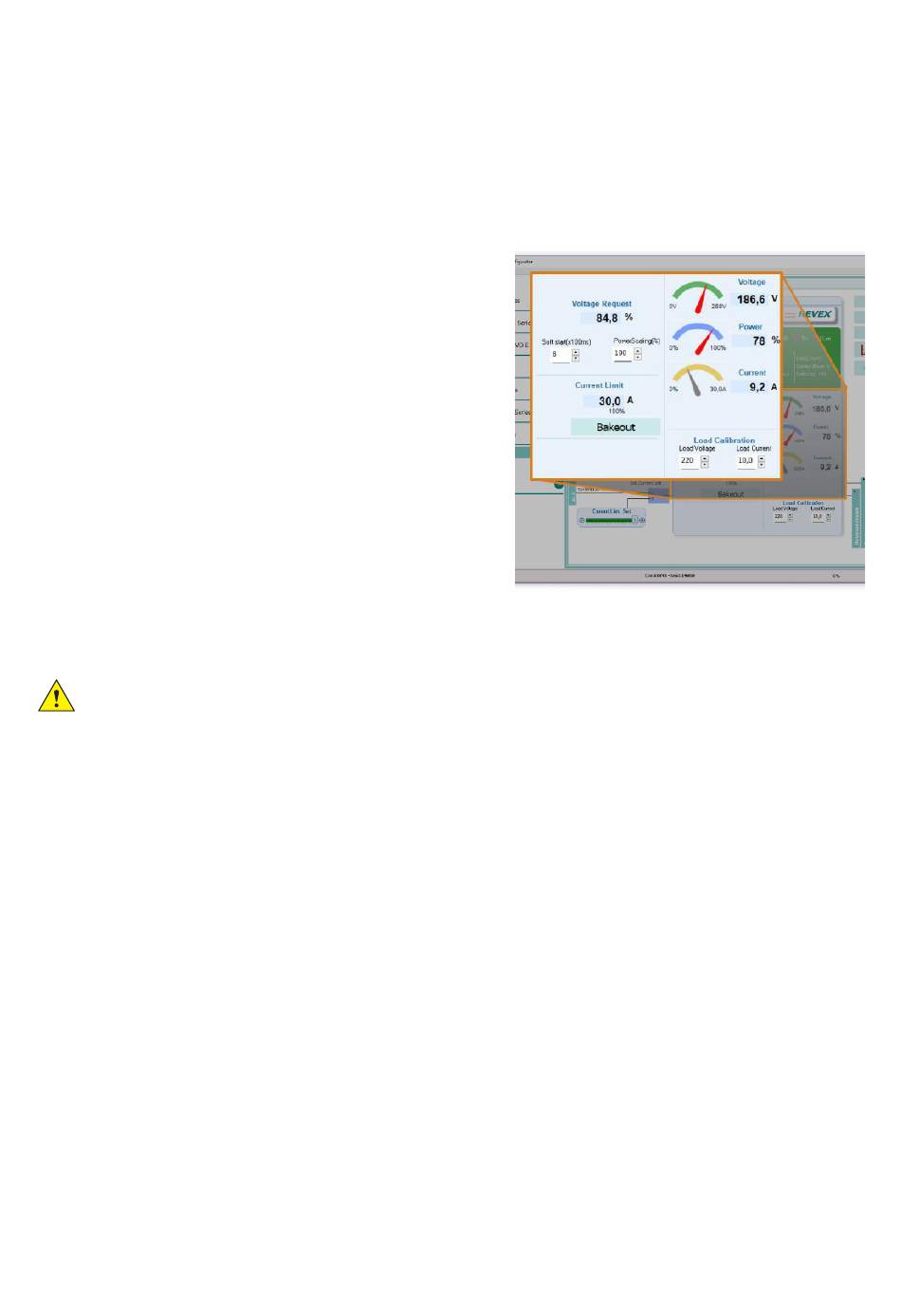

To confi gure and monitor the power controller:
Power Request: show the set point signal from analog
input 1.
The value is a percent of full scale or can be set with the
reference slider
Soft Start Time: show the time over which set point
changes are ramped
Output Scaling: show the scaling applied to the set point
signal before it is used by the control loop
Voltage indicator: show the RMS load voltage
Power indicator: show the RMS load power
Current indicator: show the RMS load current
Current Limit Set: indicates the current limit set point
button: click to view and set the heater bake out
Bakeout
feature options
Load Calibration: set and view the nominal line voltage
and nominal load current settings for the application.
NOTE! The Load Calibration settings, Load Voltage and Load Current defi ne 100% power for the load.
button: click to toggle between using the signal received at analog input 1
