  • Page 2: Table Of Contents

    INSTALLATION ................15 Do not hesitate to contact him in case of doubt. CUPPONE 1963 Preliminary operations ................16 Cuppone F.lli S.r.l. Packaging disposal ..................16 Via Sile, 36 Oven transport and positioning ............17 31057 Silea (TV) - ITALY Serial number plate reading ..............27 T +39 0422 361143 Smoke extraction ..................27...

  • Page 3: Checks Before Purchasing

    ChECkS BEFOrE PUrChASING check and agree with the owner Before purchasing the oven and before its installation, that, on installation, all the following conditions are met; they are indispensable for the correct and safe installation, operation and maintenance of the oven. Check with the owner if in the place of installation there are the tools to handle the oven easily Fig.
  • Page 4 Checks before purchasing Survey the installation room to make sure it is Inform the owner about the necessary electrical • it is possible to maintain the following minimum adequate. walls, other appliances, arrangements (activities to be carried out by a distances of the oven from objects combustible materials Fig.
  • Page 5 Checks before purchasing Evacuation tube, 150 mm in diameter (NOT supplied) Max 35°C Max 104°F Min 5°C Max 70% Min 41°F supplied not supplied not supplied Fig. 3 min. 1000 mm. (in. 40) extraction system draught switch min. min. 500 mm 500 mm ( in.

  • Page 6: Oven Technical Data

    OVEN TEChNICAL DATA Electrical data Power Average Connection Customer panel Power Absorption A Oven smoke exhaust M Touch-screen control panel Model supply consumption cable protection (kW) hood supply cable protection N Oven door (kWh) (Nxmm (nxA) C Oven lifting winch O Emergency mushroom GT110/1TS-C5-CP 3Nx400V...

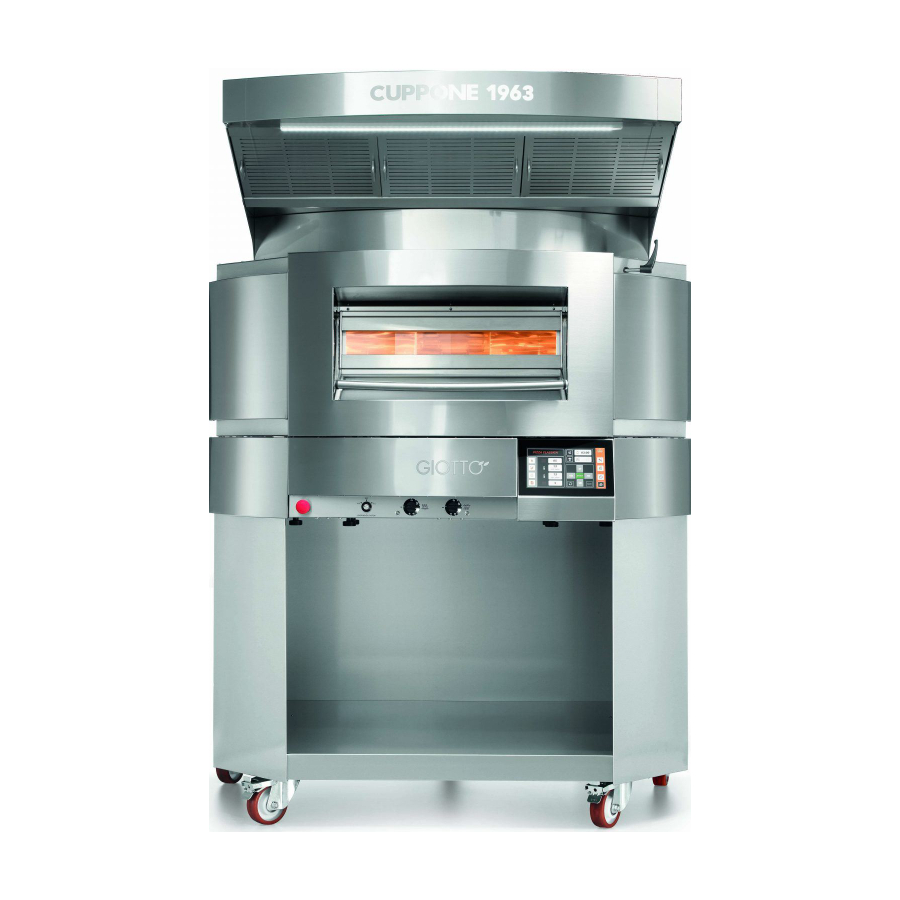

  • Page 7: Giotto Gt 110 Oven Technical Data | With Hood

    Giotto GT 110 oven technical data | with hood 26,86in 26,86in 53,72in 57,03in 682mm 682mm 1364,5mm 1448,5mm 47,42in 23,71in 23,71in 16,18in 40,30in 16,73in 1204,50mm 602,25mm 602,25mm 411mm 1023,5mm 425mm 24,43in 620,50mm 37,01in 0,98in 5,46in 940mm 10,24in 3,15in 25,5mm 138,5mm 260mm 80mm 51,18in 12,59in...

  • Page 8: Giotto Gt 110 Oven Technical Data | Without Hood

    Giotto GT 110 oven technical data | without hood 53,72in 55,43in 1364,5mm 1408mm 24,43in 620,50mm 37,01in 2.05in 940mm 52mm 10,24in 3,15in 51,18in 260mm 80mm 11,55in 5,46in 1300mm 293mm 138,5mm 52,73in 1340mm 13.58in 345,5mm 16,20in 21,32in 16,20in 411,5mm 541,5mm 411,5mm GT110 oven weight 26,38in 26,38in 517 kg...

  • Page 9: Giotto Gt 110 Oven Technical Data - Transport Mode

    Giotto GT 110 oven technical data - transport mode 53,72in 31,30in 1364,5mm 795mm GT110 oven packaging weight of packaging + GT110 complete oven measurements 588 kg 1430x1200x2060 GT hood packaging (GT hood + packaging) weight weight 76 kg 1540x490x1386 Ed. 0120 - 70702561 REV00 Giotto - Installation...

  • Page 10: Giotto Gt 110 Oven Technical Data - Capacity And Productivity

    Giotto GT 110 oven technical data - capacity and productivity Productivity 60 pizzas/hour 35 cm PIZZA ø 50 cm PIZZA ø 60x40 cm TrAY...

  • Page 11: Giotto Gt 140 Oven Technical Data | With Hood

    Giotto GT 140 oven technical data | with hood 65,53in 57,03in 32,76in 32,76in 1664,5mm 1448,5mm 832mm 832mm 47,42in 23,71in 23,71in 28,14in 40,30in 16,73in 1204,50mm 602,25mm 602,25mm 714,5mm 1023,5mm 425mm 24,43in 620,50mm 37,01in 940mm 3,08in 5,47in 16,14in 13,13in 78mm 138,5mm 62,99in 410mm 333,50mm 1600mm...

  • Page 12: Giotto Gt 140 Oven Technical Data | Without Hood

    Giotto GT 140 oven technical data | without hood / 1712mm 65,53in / 1664,5mm 67,39in 24,43in 620,50mm 37,01in / 940mm 2,03in 5,47in 16,14in 3,15in 51,5mm 138,5mm 410mm 80mm 62,99in / 1600mm 13,13in 333,50mm 64,55in / 1640mm 15,16in 385mm 19,81in 25,90in 19,81in 503mm 658mm...

  • Page 13: Giotto Gt 140 Oven Technical Data - Transport Mode

    Giotto GT 140 oven technical data - transport mode 65,53in 31,30in 1664,5mm 795mm GT140 oven packaging weight of packaging + GT140 complete oven measurements 722 kg 1730x1320x2210 GT hood + packaging GT hood packaging weight weight 76 kg 1540x490x1386 Ed. 0120 - 70702561 REV00 Giotto - Installation...

  • Page 14: Giotto Gt 140 Oven Technical Data - Capacity And Productivity

    Giotto GT 140 oven technical data - capacity and productivity Productivity 110 pizzas/hour 35 cm PIZZA ø 50 cm PIZZA ø 60x40 cm TrAY...

  • Page 15: Installation

    INSTALLATION Symbols used in the manual and on Safety instructions extraordinary cleaning, disconnect the electricity the labels applied to the machine supply. • read this guide carefully before installing the • Unauthorised actions, tampering appliance, and keep it with care in an accessible Indicates that caution is required when performing modifications that do not follow the information an operation described by a paragraph that con-...

  • Page 16: Preliminary Operations

    Installation Preliminary operations Fig. 6 Carefully remove the protective film. If any glue residue is left on the surfaces, remove it with soapy water but without any corrosive or abrasive products or sharp or pointed instruments. Check that all the parts making up the oven are in good condition and without any faults or breakages, if that is not the case, contact the retailer for the procedures to follow.

  • Page 17: Oven Transport And Positioning

    Installation Oven transport and positioning Fig. 8 and 5. The positioning room must comply with the indications given on page Scrupulously maintain the minimum distances from the oven to walls, other equipment, Fig. 9 objects and combustible materials indicated in min.
  • Page 18 Installation (Giotto GT 110) 100mm (Giotto GT 140) 50mm Fig. 10 17 mm Fig. 11...
  • Page 19 Installation 17 mm Do not tighten the screw completely: this operation will Fig. 12 be carried out later on during the assembly of the stand metal sheets. 17 mm Fig. 13 Ed. 0120 - 70702561 REV00 Giotto - Installation...
  • Page 20 Installation 3 mm interno esterno 13 mm x1 DX 17 mm x1 SX x115 Fig. 14 Fig. 15...
  • Page 21 Installation ≠ Measure distances A and B. If A=B, continue with the installation on the following page If A≠B, before proceeding, act on the winch until the two measures are equal. Fig. 16 Ed. 0120 - 70702561 REV00 Giotto - Installation...
  • Page 22 Installation 13 mm 17 mm Fig. 17 Fig. 18...
  • Page 23 Installation Fig. 19 Ed. 0120 - 70702561 REV00 Giotto - Installation...
  • Page 24 Installation Fig. 21 Fig. 20...
  • Page 25 Installation Ed. 0120 - 70702561 REV00 Giotto - Installation...
  • Page 26 Installation Fig. 22 Fig. 23...

  • Page 27: Serial Number Plate Reading

    Installation Serial number plate reading The serial number is on the right hand side of the appliance. Model Year of production It provides important technical information that is vital in case Voltage of a request for maintenance or repair of the appliance: please do not remove, damage or modify it.

  • Page 28: Electrical Connection

    Installation Electrical connection Fig. 27 exclusively The electrical connection must be carried out by qualified person- nel after reading the safety warnings at the beginning of the manual. check that systems comply with the Before installing the appliance, regulations in force with the in the country where it is going to be used and specifications indicated on the appliance rating plate...
  • Page 29 Installation Fig. 28 Fig. 29 For a correct electrical connection, the appliance must: equipotential system • be included in an in compliance with the current legislation. This connection must be made between different appliances with the terminal marked with the equipotential symbol .
  • Page 30 Installation AC 3 x 230 Abbreviation Description Control panel supply 25.2W, 230Vac/12Vcc Motor start capacitor CTrL.B Oven control board Water inlet solenoid valve Noise filter Fuses Main contactor Steam. heating element switching relay Cooking chamber lights Board cooling fan motor Chimney opening motor rA1...6 Top heating elements...
  • Page 31 Installation AC 3 N 400 Abbreviation Description Control panel supply 25.2W, 230Vac/12Vcc Motor start capacitor CTrL.B Oven control board Water inlet solenoid valve Noise filter Fuses Main contactor Steam. heating element switching relay Cooking chamber lights Board cooling fan motor Chimney opening motor rA1...6 Top heating elements...

  • Page 32: Pre-Testing And Final Inspection

    Installation Pre-testing and final inspection √ Positioning checks Reference chapter on page... The oven is checked and tested in the Manufacturer’s plant Are installation rooms adequate compliant with the regulations? (correct air before being delivered to the customer. exchange, minimum/maximum temperature, etc ...) The “production process check sheet”...

  • Page 33: Procedures

    PrOCEDUrES Firmware update To access the Touch board, unscrew the 6 knobs, rotate the control group downwards With the oven in STAND-BY, touch insert the USB stick into the appropriate socket. accompanying it with a hand, the “Service” icon. Touch the “Padlock” icon. Enter the password in display “58”...
  • Page 34 Scroll the various items touching The bar will turn orange to confirm “arrow” on the right of the the uploading. display as in the figure. Aggiornamento pronto Parametri Test I/0 Firmware update START Aggiornamento pronto ESCI Aggiornamento pronto START Aggiornamento pronto ESCI When uploading has completed, Touch the “Firmware update”...
  • Page 35 Maintenance hour counter reset A pop-up is displayed periodically warning about the need for With the oven in STAND-BY, touch oven maintenance. Touch the “WARNING” screen to continue the “Service” icon. Pizza classica with the operation. SET 320°C Pizza classica SET 300°C AVVISO PULIZIA SOTTO LE PIETRE...
  • Page 36 Touch “OK” in the display as in the The display shows “Reset the figure. counter Touch “OK”. 27/04/2018 Orev di Lavoro Imposta password Ore da ultima manutenzione Ore funzionamento: 04 (h) Ore da ultima manutenzione: 02 (h) Data e Ora Lingua Gestione Cancellare il contattore?
