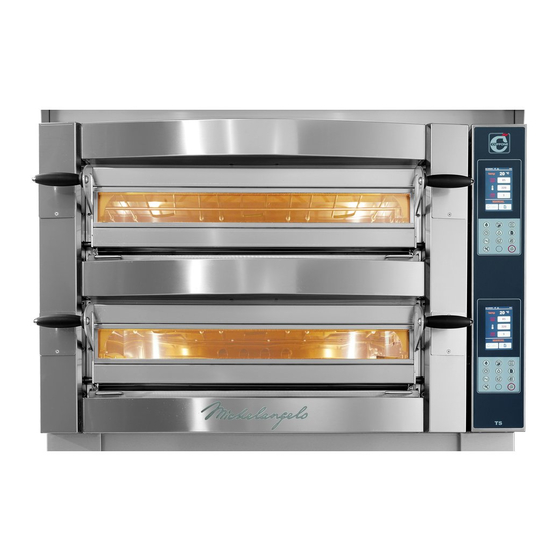

Cuppone Michelangelo ML435 Installation Manual
Hide thumbs
Also See for Michelangelo ML435:
- Preinstallation manual (23 pages) ,
- Use and maintenance manual (36 pages) ,
- Pre-installation and installation manual (44 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Cuppone Michelangelo ML435
Summary of Contents for Cuppone Michelangelo ML435
- Page 1 Michelangelo OVEN Installation manual...
-
Page 3: Table Of Contents
The Manufacturer can solve any technical problem regarding installation. Do not hesitate to contact him in case of doubt. CUPPONE 1963 Cuppone F.lli S.r.l. Via Sile, 36 31057 Silea (TV) - ITALY T +39 0422 361143 F +39 0422 360993 info@cuppone.com - www.cuppone.com... -
Page 4: Safety Instructions
Safety instructions Symbols used in the manual • Read this guide carefully before installing the • Persons not involved with the appliance appliance, and keep it with care in an accessible installation may not pass through or stand in the Important warning, if disregarded it can lead to serious place for any future consultation by the various work area during appliance assembly. -
Page 5: Installation
Installation Transport Fig.1. Fitted with personal protection equipment, transport the appliance to the installation location. Use suitable equipment, capable of dealing with its weight: persons not involved with the appliance installation may not pass through or stand in the work area during the appliance assembly. During the transport, pay particular attention to passing through openings and/or doors. - Page 6 • withstand the weight of the appliance. • Michelangelo ML435/1: net weight 140 kg (single) - 245 kg (double) Michelangelo ML635/1: net weight 179 kg (single) - 310 kg (double) Michelangelo ML635L/1: net weight 183 kg (single) - 316 kg (double)
-
Page 7: Serial Number Plate Reading
Installation Serial number plate reading Model Year of production Voltage The serial number is on the right hand side of the appliance. It provides important technical information that is vital in case of a request for maintenance or repair of the appliance: please do not remove, damage or modify it. -
Page 8: Electrical Connection
Installation Electrical connection Fig.8. The electrical connection must be carried out exclusively by qualified personnel after reading the safety warnings at the beginning of the manual. check that systems Before installing the appliance, comply with the regulations in force in the country with the specifications where it is going to be used and indicated on the appliance rating plate... - Page 9 The Manufacturer accepts no liability for failure to comply with the above. The cable must be replaced by Cuppone or by its technical assistance service, or in all cases by a person with a similar role in order to prevent any risks.
- Page 10 Installation AC 3 N400 N T S R 230 Vac 50/60 hz mod. TS 0,11/0,09 A Θ BF09 In=09A I55°C=20A T2,5AL250V 230Vac/12Vac 50VA 0,12 microF Description Abbreviation CTRL.B Oven control board TSA TSB PWB ON/OFF Motor start capacitor Noise filter F1AL250V Fuses F315mAL250V...
- Page 11 Installation AC 230 mod. TS 230 Vac 50/60 hz 0,11/0,09 A Θ BF09 In=09A I55°C=20A T2,5AL250V 230Vac/12Vac 50VA 0,12 microF Description Abbreviation CTRL.B Oven control board ON/OFF TSA TSB PWB Motor start capacitor Noise filter F1AL250V Fuses F315mAL250V Digital input for remote ignition Contactor BF09-MC09 230Vac/12Vac 20VA...
- Page 12 Installation AC 3 208 mod. TS 230 Vac 50/60 hz 0,11/0,09 A Θ BF26 In=26A I55°C=36A 50VA 208V/12Vac F2AL600V Description Abbreviation CTRL.B Oven control board Motor start capacitor F2AL600V Noise filter 0,12 microF Fuse ULKTK 600V 2A Fuse ULKTK 600V 0.5A Digital input for remote ignition ON/OFF TSA TSB PWB...
-
Page 13: Pre-Testing And Final Inspection
Pre-testing and final inspection √ Positioning checks Reference chapter on page... Before delivery to the customer, the oven is tested and checked IS the installation room adequate and compliant with regulations? (correct in the Manufacturer’s factory. ventilation, maximum/minimum temperature, etc.) The “production process sheet”... - Page 14 CUPPONE 1963 Cuppone F.lli S.r.l. Via Sile, 36 31057 Silea (TV) - ITALY T +39 0422 361143 F +39 0422 360993 info@cuppone.com - www.cuppone.com...
