Kobold HND-P105 Operating Instructions Manual

Handheld pressure measuring devices with external pressure sensors

Advertisement

Quick Links

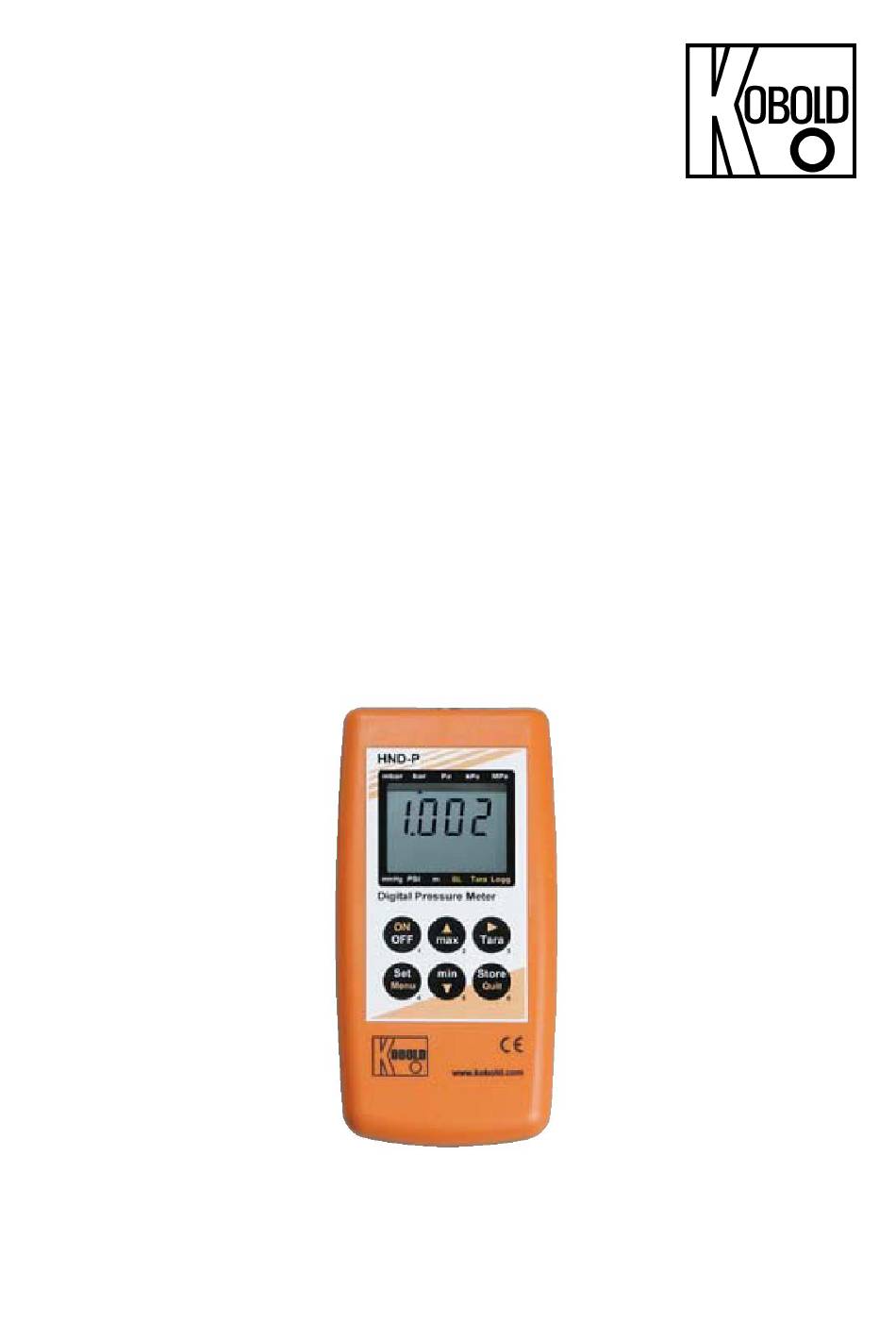

Operating Instructions
for
Handheld Pressure Measuring Devices
with External Pressure Sensors
Model: HND-P105

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HND-P105 and is the answer not in the manual?

Questions and answers

Summary of Contents for Kobold HND-P105

  • Page 1 Operating Instructions Handheld Pressure Measuring Devices with External Pressure Sensors Model: HND-P105...
  • Page 2: Table Of Contents

    Battery Operation ................11     Technical Information .................. 12     Order Codes ....................13     10.1 Pressure sensors for HND-P105 ............13     10.2   Accessories ..................14     EU Declaration of Conformance ..............15  ...
  • Page 3: Note

    4. Regulation Use Any use of the Manual Pressure Measuring Devices with External and Integrated Pressure Sensors, model: HND-P105, which exceeds the manufacturer’s specification may invalidate its warranty. Therefore, any resulting damage is not the responsibility of the manufacturer. The user assumes all risk for such usage.
  • Page 4: Operating Principle

    HND-P105 5. Operating Principle The KOBOLD manual pressure measuring devices HND-P105 are highly precise, compact pressure measuring devices that can be used universally. In conjunction with the appropriate external pressure sensors, precise measurement results over the entire measuring range can be achieved.
  • Page 5: Operation / Configuration / Adjustments

     the device is not working as specified  the device has been stored under unsuitable conditions for a longer period of time. In case of doubt, please return device to manufacturer for repair or maintenance. HND-P105 K05/0117 page 5...
  • Page 6: Connections

    Pressing it again hides it. To clear the min memory press key ´min´ for >2 seconds. Hold Function: By pressing ´Store/Quit´ (key 6) the last measuring value will be held in the secondary display. Pressing it again hides it. page 6 HND-P105 K05/0117...
  • Page 7: Configuration

    Quit (key 6) Tara AL Logg If the sea level correction is active this will be shown by the functional arrow „SL“ in the display, the device now displays the absolute pressure at sea level (zero). HND-P105 K05/0117 page 7...
  • Page 8: Measuring Of Water Level - Display Unit [M]

    (no water contact!) and bring the sensor with its open press. connection for higher pressure to water depth to be measured (display and is compensated for pressure changes in ambient air). page 8 HND-P105 K05/0117...
  • Page 9: Calibration Services

    Connect plastic tube with an internal dia of 4 mm to pressure port "A". (Port "B" is not used.) 7.8.3 Stainless steel pressure sensors: For measurements of over-, under- or absolute pressure screw sensor to G1/4" pressure terminal or plug plastic tube to a suitable adapter. HND-P105 K05/0117 page 9...
  • Page 10: Error And System Messages

    Display range underflow low! Value could not be calculated Choose different unit Err.11 Calculation overflow happened Choose different unit Err.7 System error Return to manufacturer for repair Sensor not present/recognised ---- Connect suitable sensor Could not calculate value page 10 HND-P105 K05/0117...
  • Page 11: The Serial Interface

    The battery has to be taken out, when storing device above 50 °C. Please note: We recommend to take out battery if device is not used for a longer period of time! HND-P105 K05/0117 page 11...
  • Page 12: Technical Information

    `bAt` Housing: impact-resistant ABS, membrane keyboard, transparent panel, Front side IP65 Dimensions: 142 x 71 x 26 mm (LxWxD) Weight: approx.150 g Working temperature: -25...+50 °C Allowable rel. humidity: 0...95%RH (not condensing) Storage temperature: -25...+70 °C page 12 HND-P105 K05/0117...
  • Page 13: Order Codes

    HND-P105 10. Order Codes Order-no. Housing design 1 x pressure sensor input, HND-P105 standard 10.1 Pressure sensors for HND-P105 Working- Measuring range Accuracy Resolution Overload Connection Order-no. Temperature 1.999...2.500 mbar ±0.2 % f.s. / ±1.0 % f.s.* 0.001 mbar max. 200 mbar...
  • Page 14: Accessories

    PE-hose (10 bar), 6 mm external / 4 mm internal PU-hose (9 bar), 6 mm external / 4 mm internal HND-Z086 PA-hose (25 bar), 6 mm external / 4 mm internal HND-Z087 * Please pay attention to instrument dimensions More accessories on request page 14 HND-P105 K05/0117...
  • Page 15: Eu Declaration Of Conformance

    HND-P105 11. EU Declaration of Conformance We, KOBOLD Messring GmbH, Hofheim-Ts, Germany, declare under our sole responsibility that the product: Handheld Pressure Measuring Devices with External Pressure Sensors Model: HND-P105 to which this declaration relates is in conformity with the standards noted below:...
