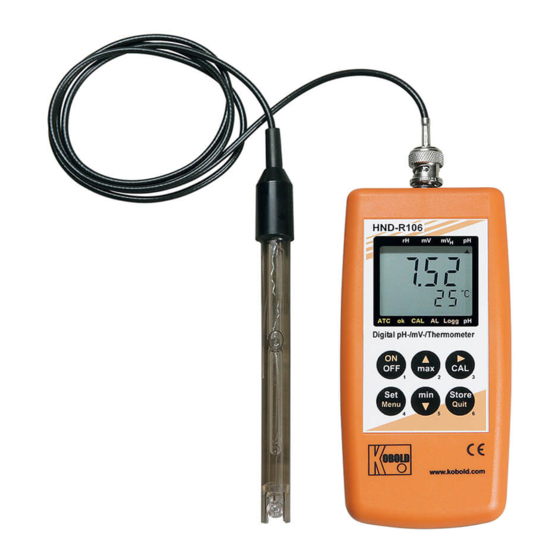

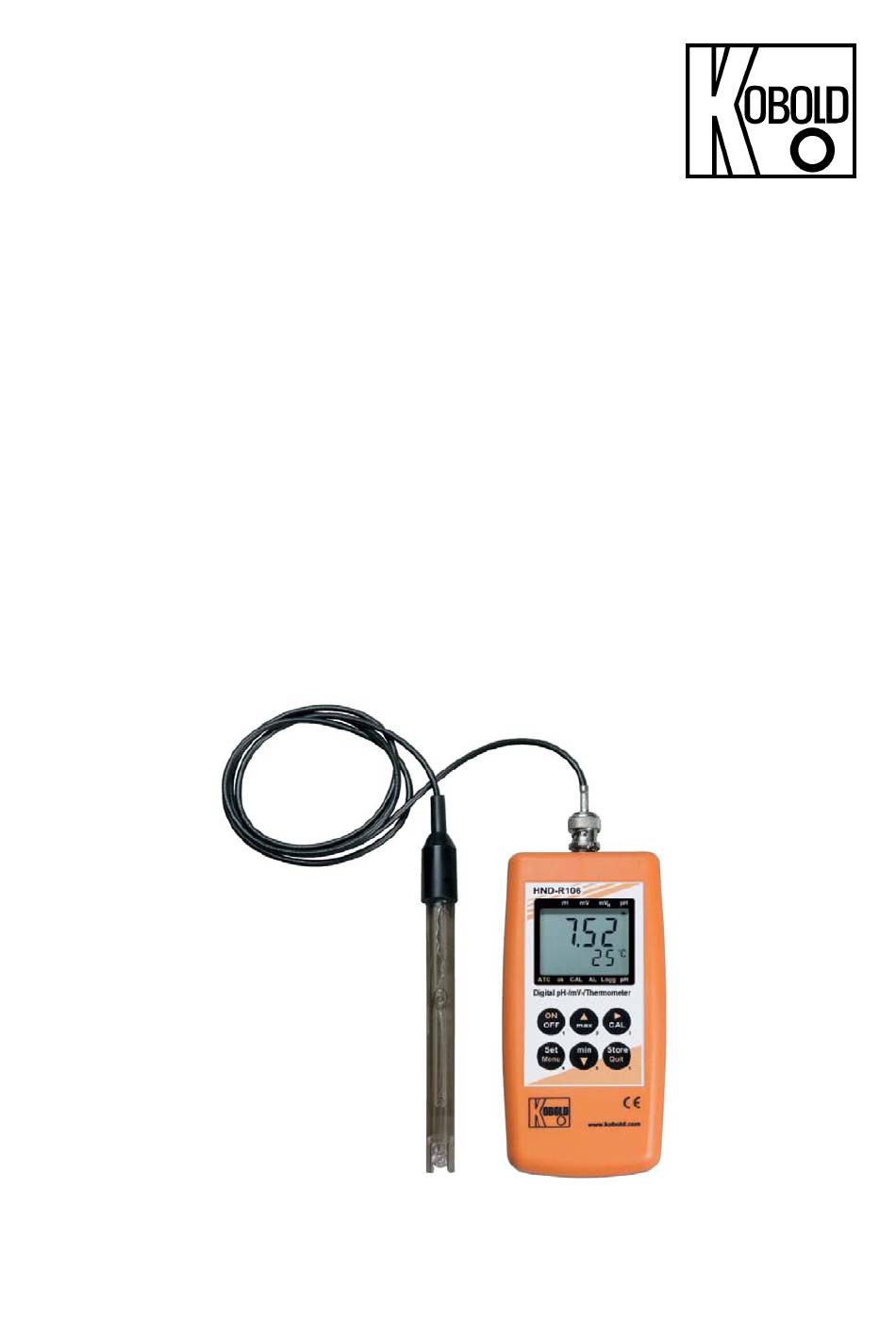

- Page 1 Operating Instructions pH-, Redox- and Temperature Portable Measuring Instruments Model: HND-R106...
-
Page 2: Table Of Contents
Preparation of ph Buffer Solution ..............27 Order Codes ....................29 19.1 pH-value for rH-measurement ............29 19.2 Accessories ..................30 EU Declaration of Conformance ..............31 page 2 HND-R106 K09/0422... - Page 3 HND-R106 Manufactured and sold by: Kobold Messring GmbH Nordring 22-24 D-65719 Hofheim Tel.: +49(0)6192-2990 Fax: +49(0)6192-23398 E-Mail: info.de@kobold.com Internet: www.kobold.com HND-R106 K09/0422 page 3...
-
Page 4: Note
Please read these operating instructions before unpacking and putting the unit into operation. Follow the instructions precisely as described herein. The instruction manuals on our website www.kobold.com are always for currently manufactured version of our products. Due to technical changes, the instruction manuals available online may not always correspond to the product version you have purchased. -
Page 5: Operating Principle
HND-R106 model are compact and universally applicable measuring units for electrodes with BNC plug connection. An extensive selection of electrodes makes it possible to use the HND-R106 in almost all application areas. The KOBOLD HND-R105 measuring unit offers functions like minimum/maximum value... -
Page 6: Temperature Probe
2. If device is to be connected to other devices (e.g. via serial interface) the circuitry has to be designed most carefully. Internal connection in third party devices (e.g. connection GND and earth) may result in not-permissible voltages impairing or destroying the device or another device connected. page 6 HND-R106 K09/0422... - Page 7 Warning: Do not use these products as safety or emergency stop devices or in any other application where failure of the product could result in personal injury or material damage. Failure to comply with these instructions could result in death or serious injury and material damage. HND-R106 K09/0422 page 7...
-
Page 8: Instrument Description
HND-R106 8. Instrument Description Displays Pushbuttons page 8 HND-R106 K09/0422... -
Page 9: Connections
- The device with pop-up clip at position 90° can be set up on a table, etc. - The device with pop-up clip at position 180° can be suspended from a screw or the magnetic holder HND-R106 K09/0422 page 9... -
Page 10: Start Operation
Turn device on via key. After segment test the device displays some information on its configuration: if zero point or slope correction is active (see chapter 13 Adjustment of temperature input) After that the device is ready for measuring. page 10 HND-R106 K09/0422... -
Page 11: Principles Of The Measurements
The measurement is done with a common silver chloride electrode (reference system with 3-molar potassium chloride solution). The measured value can be directly displayed (mode mV) or converted to “reference system: standard hydrogen electrode” and temperature compensated at mode mVH. HND-R106 K09/0422 page 11... -
Page 12: Rh Measurement
2. Get the rH value: Connect ORP electrode and set device to rH measuring mode. The main display shows the calculated rH value of the solution, the secondary display shows the prior measured pH value and the temperature alternatingly. page 12 HND-R106 K09/0422... -
Page 13: Ph Electrode
Electrodes have to be stored in a way that they are kept wet. An adequate solution is to store them with suitable protective cap filled with KCl 3 M. Please consider also the instructions in the electrode’s manual! HND-R106 K09/0422 page 13... -
Page 14: Calibration Of Ph Measurement
(see below). When working with the standard or DIN-buffer series, the influences of buffer temperature are also compensated. If buffers are entered manually, make sure to enter the pH-values of the buffers at the relevant temperature to ensure optimum calibration of the device. page 14 HND-R106 K09/0422... - Page 15 Place electrode and temperature probe (if any) in the second buffer solution (e.g. for standard series this is: pH 4.0 or pH 10.0) and stir gently. As soon as the measured pH value got stable the next calibration step will be displayed. HND-R106 K09/0422 page 15...
- Page 16 *1) In case of manual buffer selection (CAL Edit) use to enter pH value of the used solution. If solutions from the standard and DIN series are used their pH value will be automatically detected. to confirm the value; the next calibration step is displayed. page 16 HND-R106 K09/0422...
- Page 17 Slope is too high: - Buffer solution defective Use new buffer solution - Electrode defective Replace electrode Incorrect calibration Calibration can only be done at temperature 0...60°C Permissible electrodes’ data: Asymmetry: ±55 mV, Slope: -62 ...-45 mV/pH HND-R106 K09/0422 page 17...
-
Page 18: Configuration
Resolution pH: resolution of pH display 0.1..0.01 tenth pH..hundredth pH Calibration: Select number of calibration points 1-Pt 1-point (only offset calibration, slope = -59.2 mV/pH) 2-Pt 2-point (neutral + another one) 3-Pt 3-point (neutral + one acid + one alkaline buffer) page 18 HND-R106 K09/0422... - Page 19 Automatic power-off function deactivated (continuous operation) Universal Output Interface off minimal power consumption SEr: Serial interface activated dAC: Analog output activated 01,11..91 Base address for serial interface communication HND-R106 K09/0422 page 19...
- Page 20 % Set Clock: Settings for real time clock HH:MM Clock: set time hours:minutes YYYY Year: set year TT.MM Date: set date day.month rEAd CAL: Read calibration data: p.r.t. chapter 13.2 calibration storage (rEAd CAL) page 20 HND-R106 K09/0422...
-
Page 21: Universal Output
If the displayed value falls below the fixed value, the output voltage will be 0 V. In error case (Err.1, Err.2, etc.) the output voltage will be slightly higher than 1 V. Attention! plug wiring: The 3rd contact has to be left floating! Only stereo plugs are allowed! HND-R106 K09/0422 page 21... -
Page 22: Input Adjustment
Displayed value = measured value – OFFS Zero point and slope correction: Displayed value = (measured value – OFFS) * (1 + SCAL / 100) Displayed value °F = (meas. value °F - 32°F - OFFS) • (1 + SCAL / 100) page 22 HND-R106 K09/0422... -
Page 23: Glp
Z034 or displayed directly at the device: *1) 1-point calibration: slope acid = slope alkaline = 59.16mV/pH is assumed 2-point calibration: slope acid = slope alkaline = determined slope 3-point calibration: slope acid and slope alkaline are determined separately HND-R106 K09/0422 page 23... -
Page 24: Real Time Clock ("Cloc")
Basic settings can only be checked and – if necessary – corrected by the manufacturer. A calibration protocol is enclosed to the device ex works. This documents the precision reached by the production process. page 24 HND-R106 K09/0422... -
Page 25: Error And System Messages
Slope is too low Electrode defective Replace electrode Buffer solution defective Use new buffer solution Slope is too high Electrode defective Replace electrode Use new buffer solution Buffer solution defective Incorrect calibration temperature Calibration can only be done at 0…60 °C HND-R106 K09/0422 page 25... -
Page 26: Technical Information
Minimum/maximum value memory Hold-function: »freezing« of the current value Automatic-off function: 1...120 min (can be deactivated). Automatic temperature compensation with connected temperature probes (manually: without connected temperature probes) Replace battery display page 26 HND-R106 K09/0422... -
Page 27: Preparation Of Ph Buffer Solution
HND-Z073 (pepsin solution) has to be used for cleaning of the electrode. Dirty electrodes have to be cleaned. You will find suitable cleaning agents for the pH-glass diaphragm in the following table: HND-R106 K09/0422 page 27... - Page 28 Commercial liquids for cleaning of glass Metal compounds 1 mol/l HCI solution Oil, grease Special cleaning agents or solvents Biological coatings containing proteins 1 % pepsin enzyme in 0.1 molar HCI solution Resin-lignines Acetones Highly resistant deposits Hydrogen superoxide, sodium hypochloride page 28 HND-R106 K09/0422...
-
Page 29: Order Codes
1 m, 3 mol/l KCL, RF28 diaphragm: 2 x ceramic, metal electrode: platinum calotte Ø 5 mm, thread: without, electrode shank: Tyril Ø 12 mm x 120 mm, minimum immersion depth: 15 mm HND-R106 K09/0422 page 29... -
Page 30: Accessories
100 ml plastic wide mouth bottle Work and calibration set, consisting of 5 buffer capsules each pH 4, pH HND-Z076 7, pH 10, 3 xHND-Z075, 1 xHND-Z071, 1 xHND-Z073 *observe instrument dimension Additional accessories on request page 30 HND-R106 K09/0422... -
Page 31: Eu Declaration Of Conformance
HND-R106 20. EU Declaration of Conformance We, KOBOLD Messring GmbH, Hofheim-Ts, Germany, declare under our sole responsibility that the product: pH-, Redox-, and Temperature Portable Measuring Units model: HND-R106 to which this declaration relates is in conformity with the standards noted below:...
