Aries 2055100 Installation Manual

INSTALLATION MANUAL

Level of Difficulty

Easy
This is the first of two manuals
required to complete this installation.
The second manual is included with
your running boards / side steps.

Parts List

4 VersaTrac mounting bracket, universal
™
8 Clip nut, M8*
16 Hex bolt, M8 - 1.25 x 25mm
16 Lock washer, M8
16 Flat washer, M8
8 Hex nut, M8
* Depending on the year of the vehicle,
clip nuts may or may not be needed.
Running boards / side steps sold separately

Tools Required

Ratchet Socket set
Torque wrench Socket extension
Level --

Torque Specifications

M6 bolt 3 ft-lbs.
M8 bolt 7 ft-lbs.
M10 bolt 16 ft-lbs.
M12 bolt 28 ft-lbs.
1/4" bolt 3 ft-lbs.
5/16" bolt 7 ft-lbs.
3/8" bolt 16 ft-lbs.
7/16" bolt 20 ft-lbs.
1/2" bolt 28 ft-lbs.
Use above torque setting unless otherwise noted
ARIESAUTOMOTIVE.COM

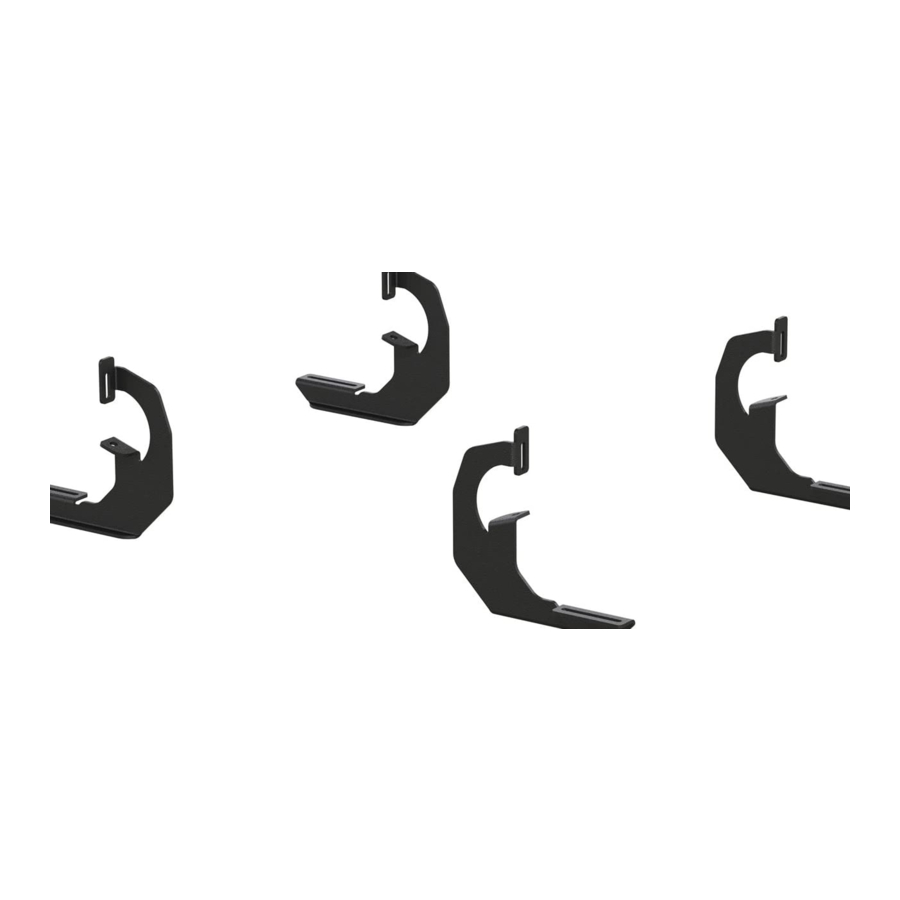

Product Photo

Notes and Maintenance

Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
Mild automotive detergent may be used to clean the product. Do not use dish detergent, abrasive
cleaners, abrasive pads, wire brushes or other similar products that may damage the finish.
Refer to the table to the left when securing hardware during the
installation process to help prevent damage to the product or vehicle.

Product Registration

CURT Group stands behind our products with industry leading warranties.
You can help us continue to improve our product line and help us understand
your needs by registering your purchase by visiting:
warranty.curtgroup.com/surveys
At CURT Group, customer is king. We value your feedback and we use that information to make
improvements on our products. Please, take a minute and let us know how we are doing.
• NEED ASSISTANCE? • 844.278.4357 • 2055100-INS-RC • PAGE 1
2055100
Front
Rear
