Aries 2055117 Installation Manual

INSTALLATION MANUAL

Level of Difficulty

Easy

Parts List

1 Driver / left
side bar / running board*
1 Passenger / right
side bar / running board*

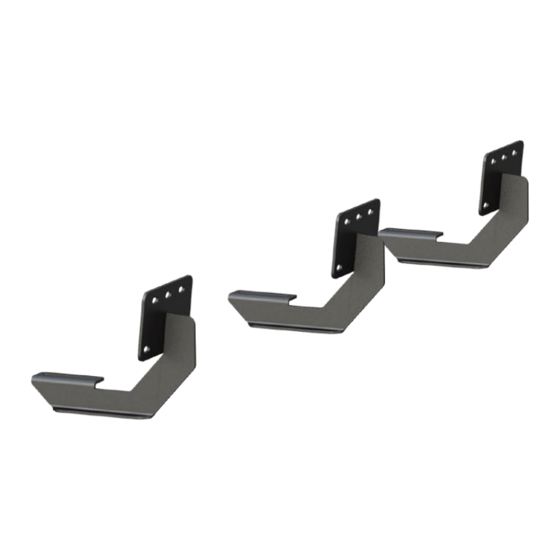

6 VersaTrac mounting bracket, universal
™
12 Hex bolt, M8
30 Flat washer, M8
30 Lock washer, M8
30 Hex nut, M8
* Side bars / running boards sold separately

Tools Required

Ratchet Socket set
Torque wrench Level

Torque Specifications

M6 bolt 3 ft-lbs.
M8 bolt 7 ft-lbs.
M10 bolt 16 ft-lbs.
M12 bolt 28 ft-lbs.
1/4" bolt 3 ft-lbs.
5/16" bolt 7 ft-lbs.
3/8" bolt 16 ft-lbs.
7/16" bolt 20 ft-lbs.
1/2" bolt 28 ft-lbs.
Use above torque setting unless otherwise noted
ARIESAUTOMOTIVE.COM
Product Photo
AdvantEDGE
RidgeStep

Notes and Maintenance

Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
To protect the product, wax after installing. Regular waxing is recommended
to add a protective layer over the finish. Do not use any type of polish or wax
that may contain abrasives that could damage the finish.
For polished, gloss and other smooth finishes,
polish may be used to clear small scratches and scuffs on the finish.
Mild automotive detergent may be used to clean the product. Do not use dish detergent, abrasive
cleaners, abrasive pads, wire brushes or other similar products that may damage the finish.
Refer to the last page of this manual for troubleshooting,
warranty and product registration information.
Refer to the table to the left when securing hardware during the
installation process to help prevent damage to the product or vehicle.
• NEED ASSISTANCE? • 877.287.8634
(not included)
™
(not included)
™
• 2055117-INS-RA • PAGE 1
2055117
Front
Rear
