INSTALLATION MANUAL
Parts List
1
Driver / left,
side bar /
running board
1
Passenger / right,
side bar / running board
4

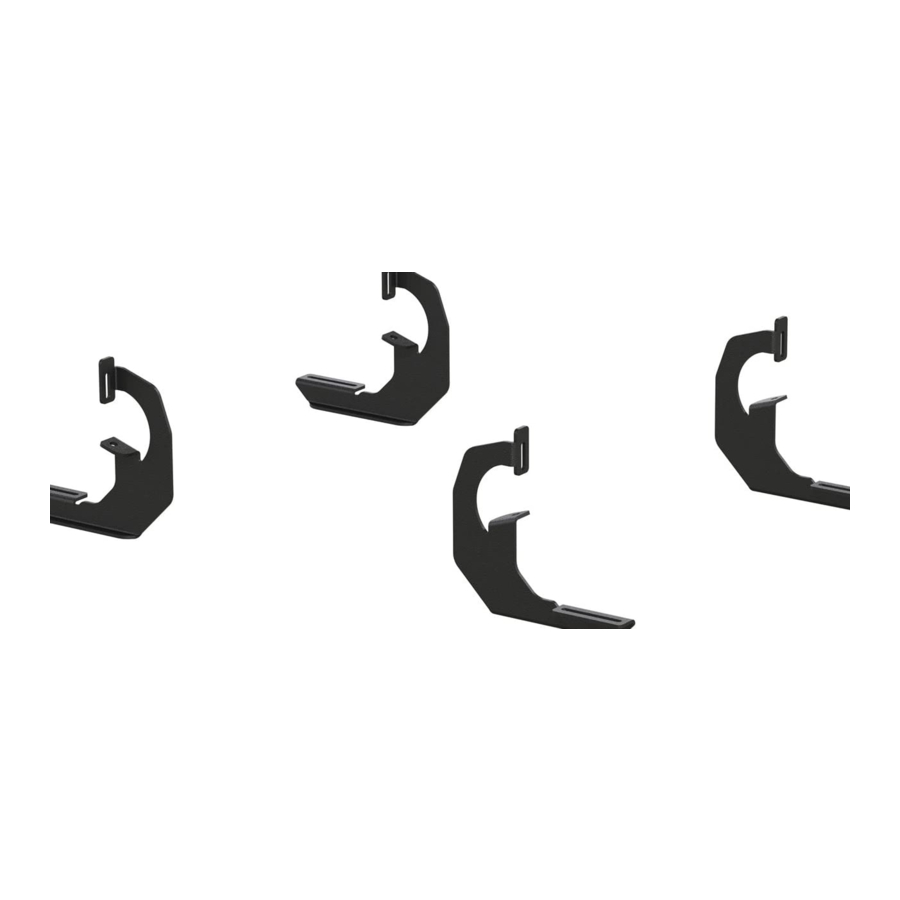

Mounting bracket
8
Clip-on nut, 8mm*
8
Hex bolt, 1.25 x 30mm
8
Hex bolt, 1.25 x 25mm
16
Lock washer, 8mm
16
Flat washer, 8mm
8
Hex nut, 8mm
* Depending on the year of the vehicle,
clip-nuts may or may not be needed
Tools Required
Ratchet
Socket, 13mm
Extension
Level of Difficulty
Easy
Product Image
AdvantEDGE™
Front
RidgeStep™
Front
Notes and Maintenance
Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
To protect the product, wax after installing. Regular waxing is recommended to
add a protective layer over the finish. Do not use any type of polish or wax that may
contain abrasives that could damage the finish.
For chrome powder coat, polish may be used to clear small scratches
and scuffs on the finish. Mild soap may be used also to clean the product.
For black finishes, mild soap may be used to clean the product.
2055100
AdvantEDGE™
Rear
Rear
Rear
Front
Advertisement
Table of Contents
Related Manuals for Aries 2055100
Summary of Contents for Aries 2055100
- Page 1 INSTALLATION MANUAL 2055100 Parts List Level of Difficulty Easy Driver / left, side bar / running board Passenger / right, side bar / running board Product Image Mounting bracket Clip-on nut, 8mm* Hex bolt, 1.25 x 30mm Hex bolt, 1.25 x 25mm...
- Page 2 Step 1 Locate the five mounting tabs along the bottom edge of the vehicle body. This installation will use the first and fifth mounting tabs. Step 2 Starting at the front driver side mounting location, locate the threaded hole on the inside of the body panel.
- Page 3 Step 5A - AdvantEDGE Side Bars ™ Carefully place the side bar onto the mounting brackets. Ensure outer edge of the side bar is lined up with the outer edge of the mounting brackets. Begin by locating the round rail slots closest to the front tire underneath the side bar.
- Page 4 Step 7 Repeat steps 1 through 6 on the passenger side of the vehicle. Congratulations on the installation of your brand new ARIES AdvantEDGE ™ side bars / RidgeStep running boards. ™ With the side bars / running boards...
