INSTALLATION MANUAL

Parts List

1
Driver / left
side bar / running board
1
Passenger / right
side bar / running board
4

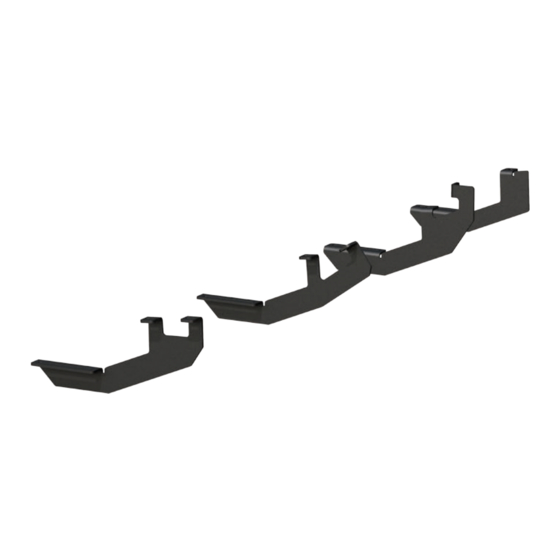

VersaTrac
mounting bracket,
universal
2
Bolt plate, M6
2
Flat washer, M6
2
Lock washer, M6
2
Hex nut, M6
28
Hex bolt, M8 - 1.25 x 25mm
28
Flat washer, M8
28
Lock washer, M8
16
Hex nut, M8

Tools Required

Ratchet
Socket, 10mm
Torque wrench
Socket, 13mm
Level
Level of Difficulty
Easy
Product Image
AdvantEDGE™
RidgeStep™
PAGE 1 • 2055130-INS-RA • 800.798.0813 • NEED ASSISTANCE?
2055130
Scan
for helpful
install tips
• ARIESAUTOMOTIVE.COM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2055130 and is the answer not in the manual?

Questions and answers

Summary of Contents for Aries 2055130

  • Page 1 Hex nut, M6 Hex bolt, M8 - 1.25 x 25mm Flat washer, M8 Lock washer, M8 AdvantEDGE™ Hex nut, M8 Tools Required Ratchet Socket, 10mm RidgeStep™ Torque wrench Socket, 13mm Level • ARIESAUTOMOTIVE.COM PAGE 1 • 2055130-INS-RA • 800.798.0813 • NEED ASSISTANCE?
  • Page 2 Locate the rear driver-side mounting tab. Insert a bolt plate through the hole. Place a bracket onto the vehicle and secure with an M6 flat washer, lock washer and hex nut. ARIESAUTOMOTIVE.COM • NEED ASSISTANCE? • 800.798.0813 • 2055130-INS-RA • PAGE 2...
  • Page 3 Step 5B - RidgeStep Running Boards ™ Carefully place the running board onto the mounting brackets. Align the C-shaped track mounting brackets with the mounting brackets on the vehicle. • ARIESAUTOMOTIVE.COM PAGE 3 • 2055130-INS-RA • 800.798.0813 • NEED ASSISTANCE?
  • Page 4 To protect your investment, see the 'Notes and Maintenance' section on the second page of this instruction manual. ARIESAUTOMOTIVE.COM • NEED ASSISTANCE? • 800.798.0813 • 2055130-INS-RA • PAGE 4...
