Kraus KPF-1612 Installation Instruction

Dear Valued Customer,
Kraus would like to take this opportunity to thank you for purchasing Kraus products. It is our sincere
hope that you are completely satisfied with your new purchase. We welcome any questions or comments
you may have and look forward to assisting you in the future.
Sincerely,
Kraus customer service department.
1. Unpack your new product and ensure that all the parts are contained in the packaging.
Keep the product in its original box until you are ready to install it.
2. Shut off the water supply if replacing a previously-installed faucet.
3. Observe all plumbing and building codes in your area.
4. It is recommended that installation of the product be done by a professional plumber.
1. Shut off all water supply prior to installation
2. Remove the metal spring (#14) by disassembling it from the hose.
3. Screw on the aerator head (#2) onto the spout (#3). Make sure that a black rubber washer is attached to the
end of the hose prior to attaching the aerator head.
4. Place the black rubber o-ring (#4) into the metal ring (#5).
5. Place the metal ring (#5) onto the faucet body (#1).
6. Unscrew the brass nut (#7) from the brass screw (#6).
7. Place the faucet on the countertop.
8. If the countertop is thin or the faucet is being mounted on the sink itself, place the countertop extender (#15)
from underneath the countertop and tighten it onto the brass screw. **Optional**
9. Place the rubber washer (#8) and then the metal washer (#9) onto the brass screw from underneath the
countertop.
10. Tighten the brass nut (#7) onto the brass screw (#6).
11. Place the plastic enclosure (#10) onto the hose and situate the smaller opening onto the brass screw (#6).
12. Place the spring (#14) onto the hose.
13. Place the red hard washer (#11) into the hose inlet (#13) and screw the hose (#12) (with the spring already
attached) onto the brass screw (#6).
14. Screw in the hot and cold waterlines (#16) and attach them to the water supply.
Contact us toll-free at
Product Description and Measurements
Installation Instruction

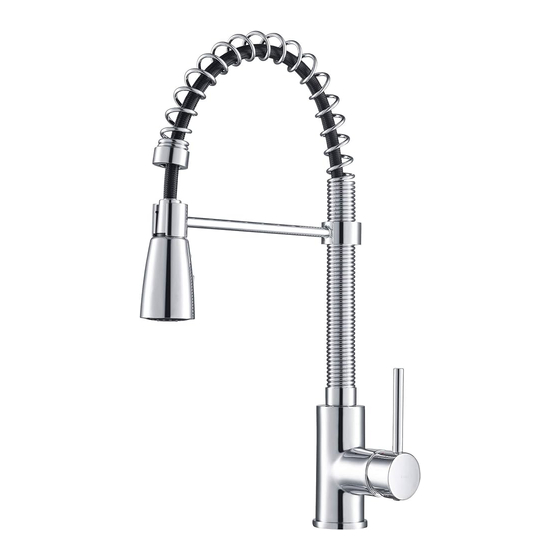

Single Lever Pull Out Sink Mixer
Thank You

Prior To Installation Steps

Installation Steps

1-800-775-0703; or visit our website at www.
MODEL-KPF-1612
kraususa.com.
