Kraus KPF-1612 Installation Manual

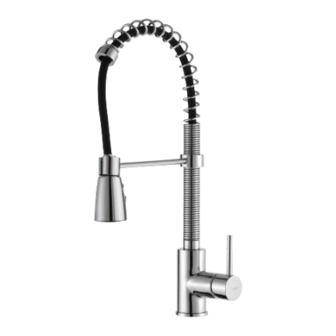

Single lever pull-out kitchen faucet
Hide thumbs
Also See for KPF-1612:
- Installation manual (17 pages) ,
- Installation instruction (3 pages)
Subscribe to Our Youtube Channel
Related Manuals for Kraus KPF-1612
Summary of Contents for Kraus KPF-1612
- Page 1 I N S TA L L AT I O N MA N UA L Single Lever Pull-Out Kitchen Faucet KPF-1612 www.kraususa.com I toll free: 1.800.775.0703 I © 2013-2014 Kraus USA Inc.
- Page 2 Congratulations on your new Kraus purchase! We would like to take this opportunity to thank you for your business with Kraus USA. It is our sincere hope that you are completely satisfied with your Kraus experience. We welcome any questions or comments you may have, and look forward to assisting you in the future.
-
Page 3: Prior To Installation
Prior to Installation • Make sure that the cold and hot water lines are turned off • Wrap all threaded connections with Teflon tape. Always wrap in a clockwise direction • Cover your drain to avoid losing parts • Do not disassemble the main faucet body, as it has been installed & commissioned correctly &... - Page 4 KPF-1612 Diagram and Parts List Included Parts: 1. Faucet Body 2. Base O-Ring 3. Rubber Washer 4. Metal Washer 5. Fixing Nut 6. Fixing Screw (2) 7. Weight 8. Spray Head 8 15/32” 9. Spray Hose 10. Spring Ø35~Ø38 11. Spring Holder Ø1 3/8~Ø1 1/2”...
- Page 5 Dimension Drawings 8 15/32” Ø35~Ø38 Ø1 3/8~Ø1 1/2” Cold Water Water Safety Tips • If soldering the water connections when installing the faucet, remove the O-rings, cartridges, and washers before applying any heat • Protect your eyes with safety glasses when cutting or soldering...
-
Page 6: Dimension Drawings
Dimension Drawings 35~Ø38 8~Ø1 1/2” Safety Tips • Do not over tighten fixing screws/nuts. Tighten finger-tight, then use a wrench/ screwdriver to tighten the fixing screw/nut until snug... -
Page 7: Installation Method
Faucet Installation Procedure Installation Method 1 8 15/32” Ø35~Ø38 The minimum distance between Ø1 3/8~Ø1 1/2” the faucet hole and the wall should be 3.5” Cold Water Water Ø1 3 Installation Method 2 If the distance between the faucet hole and the wall is less than 3.5”, position the faucet lever 30 degrees to 90 degrees off of the wall to allow for full operation... - Page 8 90˚ 25˚ Step 1 Left Right Hot Water Cold Water Remove mounting screws (6), mounting nut (5), metal washer (4), and rubber washer (3) from the faucet body (1) Ø35~Ø38 Ø1 3/8~Ø1 1/2” Step 2 Insert the faucet body (1) into the hole on the deck with the base o-ring (2).
- Page 9 Step 3 After adjusting the direction of the faucet body (1), tighten the mounting nut (5) until snug and tighten the mounting screws (6) to the nut with a Philips head screwdriver Water Step 4 Connect the spray hose (9) to the supply line and tighten with a wrench until snug, then install the weight (7) at the lowest point...
- Page 10 Step 5 Connect hot and cold waterlines (12) to the angle stops and tighten with a wrench until snug, then unscrew spray head (8), hold the tip of the spray hose (9) and turn on the faucet to flush any debris...
-
Page 11: Hot Water
Usage How to Operate the Handle 1. Pull the lever to the right to turn on the water. Push to the 90˚ left to turn off 25˚ 2. Pull the lever forward to increase hot water flow and push the lever back to Left Right increase the cold water flow... -
Page 12: Care And Maintenance
Cold Water Water Close 25˚ 90˚ Care & Maintenance Push *To keep the product clean & shining, follow the steps below: Left Open Hot Water Rinse clean with water & dry with a soft cloth Do not clean with soaps, acid, polish, abrasives, or harsh cleaners Do not use cloth with a coarse surface Unscrew the aerator and clean when necessary... -
Page 13: Troubleshooting
Trouble - Shooting If you have followed the instructions carefully and your faucet still does not work properly, take the following corrective steps: P R O B L E M C A U S E A C T I O N Leakage under the Locking nut has come Unscrew the lever on... - Page 14 If Kraus is unable to provide a replacement and repair is not practical or cannot be made in timely fashion, Kraus may elect to refund the purchase price in exchange for the return of the product.
- Page 15 NON-APPLICABILITY OF THIS WARRANTY By the purchase and use of our products, you agree that Kraus is not liable for incidental, consequential or special damages associated with the return, replacement, installation or use of your product. This includes freight costs,...
- Page 16 www.kraususa.com...
