Anova L1364 Assembly Instructions

anovafurnishings.com
888.535.5005 tel

tools needed:

• 9/16" Open-end or Box-end Wrench
• Ratchet with 9/16" Socket
• #4 Phillips Screwdriver
• Level

Assembly HArdwAre:

4 x
3/8" X 1.5"
Phillips Head Bolt Flanged Hex Nut

Assembly:

The assembly is a two-person operation.
1. Inspect the shipping container contents for damage and to determine that all components and hardware are present.
2. Place a Contour Bench Seat on the shipping packaging or other soft surface to avoid scratching the product.

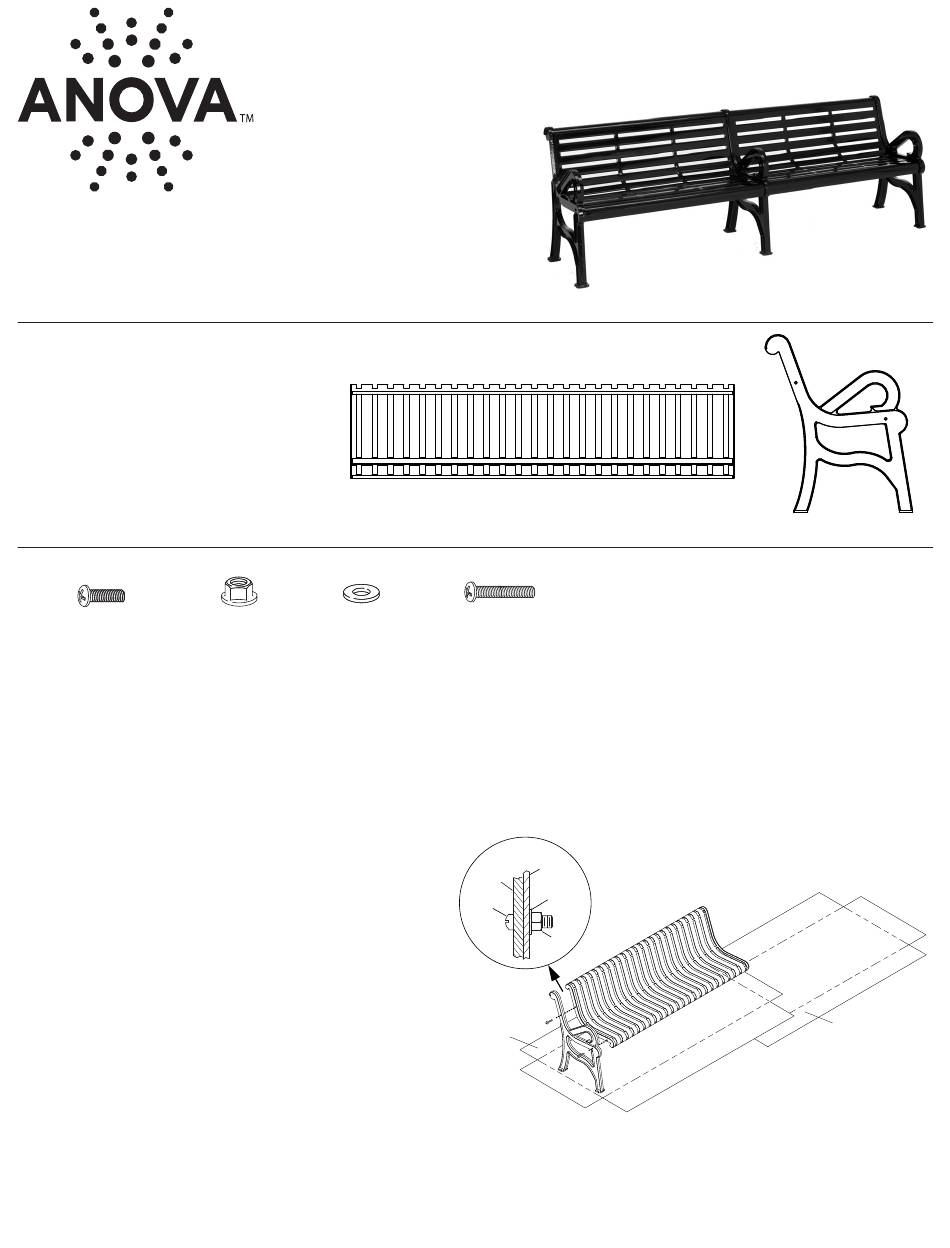

3. Align the mounting holes in one of the Bench
Supports with the holes in the appropriate end of
the Bench Seat. Insert one of the provided 1.5" long
Bolts through both parts, with the Bolt head on
the outside surface of the Bench Support. Install a
Washer and Nut on the inside end of the Bolt.
Note: Always hold the Bolt head still and turn the Nut.
This protects the surface of the Bench Support
around the Bolt from scratches (the Washer
protects the nut side of the Bench Seat).
Leave the hardware finger tight so that
adjustments can be made to level the Bench Seat.
Install a Bolt, Washer, and Nut through the other
set of mounting holes in that end of the Bench
Seat. Again, leave the hardware finger tight.
Assembly InstructIons

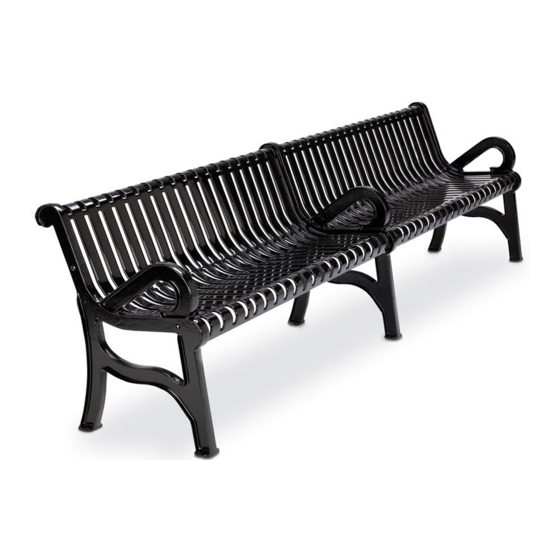

l1364 8 ft Rendezvous Bench
l1366 12 ft Rendezvous Bench
l1508 8 ft Horizon Bench
l1512 12 ft Horizon Bench
bencH components:
6 x 8 x
3/8" 3/8"
Washer
2 x Contour Bench Seat
Seat pattern may vary.
2 x
3/8" X 2"
Phillips Head Bolt
Contour
Bench
Support Bench Seat
Washer
Screw
Nut
Packaging plastic and
cardboard to avoid
scratching the product
Model L1508 shown.
3 x Bench Supports
Contour
Bench Seat
Washer
Screw
Packaging plastic and
cardboard to avoid
scratching the product
