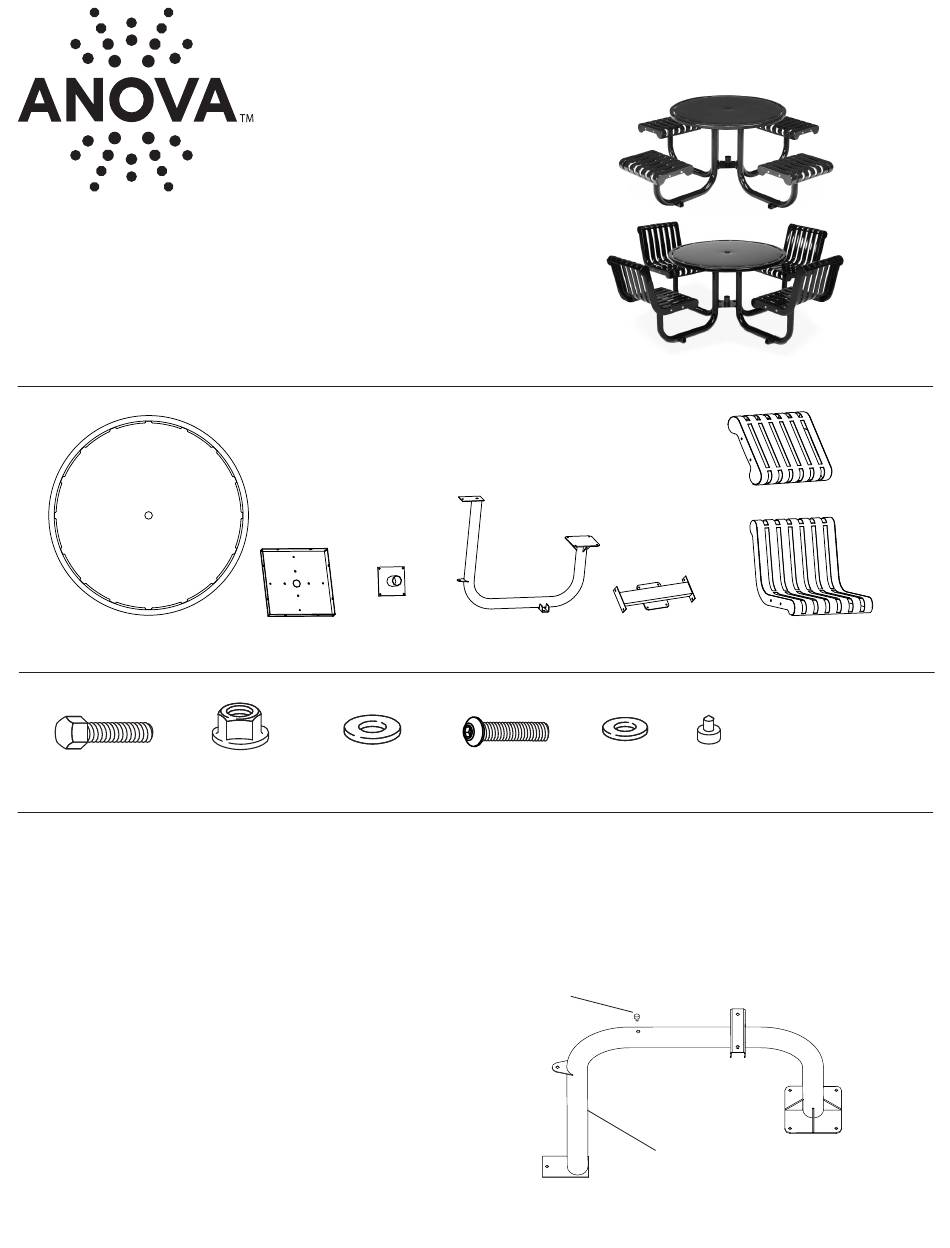

Anova Rendezvous L1387 Assembly Instructions

anovafurnishings.com
888.535.5005 tel
tools needed:
• Ratchet with 1/2" Socket
• 1/2" Open End or Box End Wrench
• 5/32" Allen Wrench
• Rubber Mallet
tAble components:
1 x Table Top
Assembly HArdwAre: Extra hardware may be included.
40 x
5/16 X 1.0" 5/16" Flanged Nut
Hex Head Bolt
Assembly:
The assembly is a two-person operation.
1. Inspect the shipping container contents for damage and to determine that all components and hardware are present.
2. Assemble the Table over the shipping packaging or padded work area to avoid scratching the product.
NOTE: Before assembling the Nuts to the Bolts, it is recommended that a light oil or petroleum jelly be applied to the screw threads.
3. Open the Hardware package and find the five black plastic Plugs. Insert a Plug in the hole on the bottom of each of the Seat
Supports. Use the Rubber Mallet to seat the Plugs.
Assembly InstructIons

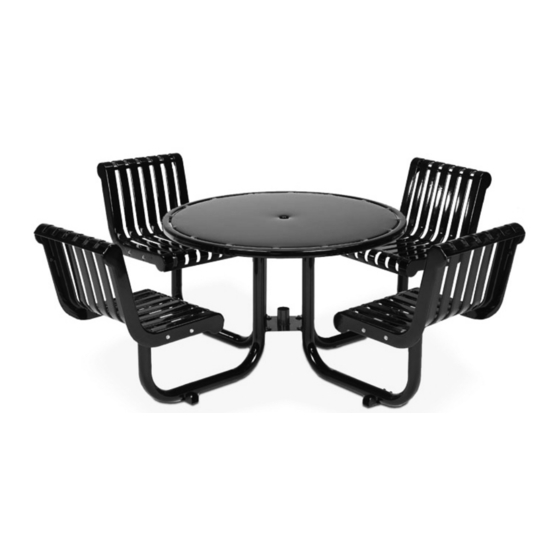

l1387 4-Seat Rendezvous Table with Flat Seats
l1388 4-Seat Rendezvous Table with Contour Seats
l1448 4-Seat Latitude Table with Flat Seats
l1449 4-Seat Latitude Table with Contour Seats
1 x Lower Leg
1 x Table Top Pan
Bracket
40 x
80 x
5/16" Flat
Washer
4 x Seat Support 4 x Seat Mount
12 x 12 x
1/4 x 1.5" Button 1/4" Flat Washer
Head Allen Screw
Plug
Rendezvous models shown
seat shape and pattern may vary
OR
OR
4 x Flat or Contour Seat
(Seat pattern may vary)
4 x
Plug
Seat Support
