U-Line H-9884 Manual

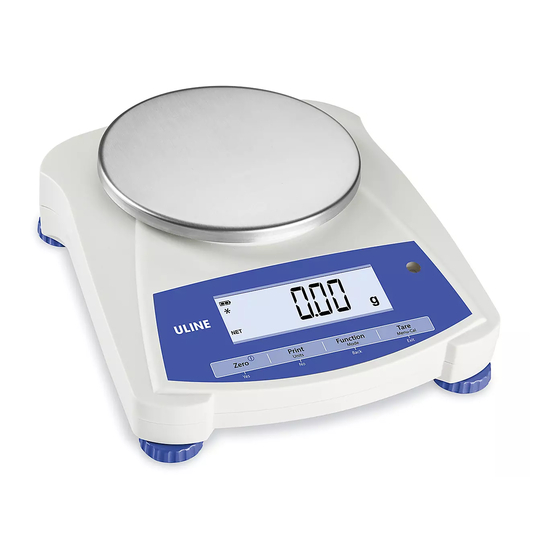

Balance scale
Hide thumbs

Advertisement

Table of Contents

H-9884, H-9885
H-9886
BALANCE SCALE
CONTROL PANEL
CONTROL FUNCTIONS
PAGE 1 OF 8
1-800-295-5510
uline.com
OVERVIEW OF CONTROLS
NET
Zero
Yes
BUTTON
Short Press (when on): Sets display to zero.
Zero
Long Press (when on): Turns the scale off.
Yes
Short Press (in Menu): Selects/accepts displayed setting.
Print
Long Press: Toggles through active units.
Units
Short Press (in Menu): Toggles through available settings.
No
Function
Short Press: Selects function setting.
Long Press: Selects active mode.
Mode
Back
Short Press (in Menu): Returns to previous settings.
Tare
Short Press: Enters/clears a Tare value.
Long Press: Enters user menu.
Menu-Cal
Exit
Short Press (in Menu): Quickly exits user menu.
g
Print
Function
Mode
Units
No
Back
FUNCTION
(when off): Turns scale on.
Tare
Menu-Cal
Exit
0422 IH-9884

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H-9884 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for U-Line H-9884

Summary of Contents for U-Line H-9884

  • Page 1 H-9884, H-9885 1-800-295-5510 H-9886 uline.com BALANCE SCALE OVERVIEW OF CONTROLS CONTROL PANEL Print Function Tare Zero Mode Menu-Cal Units Back Exit CONTROL FUNCTIONS BUTTON FUNCTION Short Press (when on): Sets display to zero. Zero (when off): Turns scale on. Long Press (when on): Turns the scale off.

  • Page 2: Transportation Lock

    SAFETY WARNING! Read all safety warnings before • Operate the unit only under ambient conditions installing, making connections or servicing this specified in these instructions. scale. Failure to comply with these warnings • Scale is for indoor use only. could result in personal injury and/or property damage.

  • Page 3: Operation

    OPERATION CALIBRATION CHECKWEIGH MODE Press and hold MENU-CAL until MENU is displayed. NOTE: This mode sets low and high weight limits When button is released, the display will show CAL. for portion control processes. 2. Press YES to accept; SPAN will be shown. Press YES Press and hold MODE until CHECK is displayed.

  • Page 4: Calibration Sub-Menu

    SETTINGS USER MENU SETUP SUB-MENU • Back Light [b.L ight] (on, off, AUTO) – When Back light NOTE: The user menu allows the customizing of is set to "ON", the scale will always be on. scale settings. • Back Light [b.L ight] Auto – The scale will turn on NOTE: All modes except for weighing must be when a button is pressed or the display weight activated in the user menu before they are...

  • Page 5: Mode Menu

    SETTINGS CONTINUED MODE MENU SECURITY SWITCH • Menu Lock switch may be used to limit changes to NOTE: This sub-menu activates modes so they will be available for use with the MODE button. the user menu. (See Figure 4) Weigh mode is always active. Figure 4 •...

  • Page 6: Troubleshooting

    TROUBLESHOOTING OPERATING ISSUE POSSIBLE CAUSE REMEDY Cannot turn on No power to scale. Verify connections and voltage. Improper calibration. Perform calibration. Poor accuracy Unstable environment. Move scale to suitable location. Unstable environment. Move scale to suitable location. Cannot calibrate Incorrect calibration weight. Use correct calibration weight.

  • Page 7: Specifications

    SPECIFICATIONS MODEL H-9884 H-9885* H-9886* Capacity (g) 2200 2200 Readability (g) 0.01 0.01 Repeatability (Std. Dev) Linearity ±2d ±5d ±2d Span Calibration Mass 2,000 1,000 (Not Included) Linearity Calibration Mass 100 g, 200 g 1 kg, 2 kg 1 kg, 2 kg...
  • Page 8 SPECIFICATIONS (CONTINUED) MODEL H-9884 H-9885 H-9886 Gram (g) 220 x 0.01 2,200 x 0.01 2,200 x 0.1 Kilogram ---------- 2.2 0.00001 2.2 x 0.0001 Newton (N) 2.1574 x 0.0001 21.5744 x 0.0001 21.574 x 0.001 Ounce (oz) 7.7600 x 0.0005 77.6025 x 0.0005...

This manual is also suitable for:

H-9885H-9886
