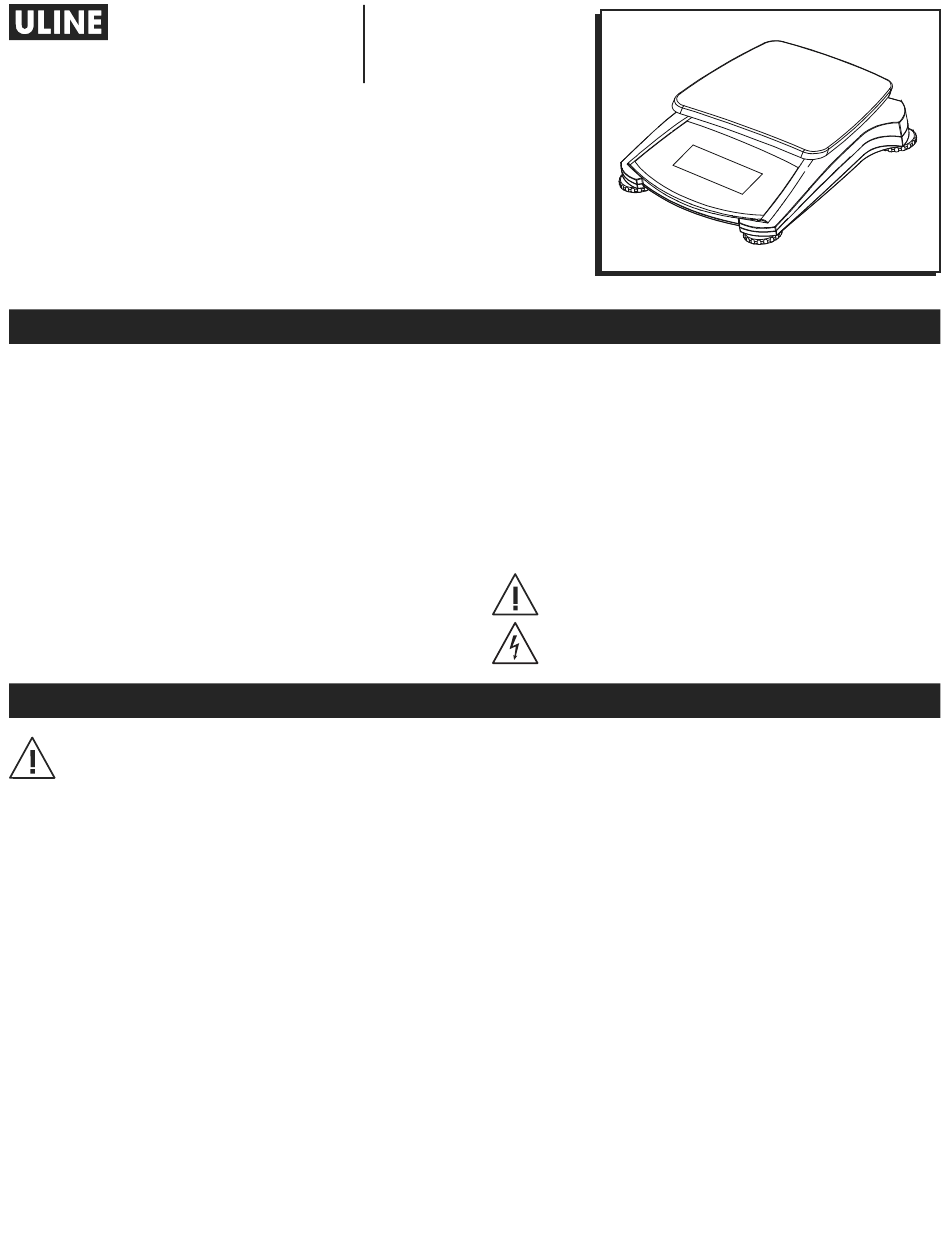

H-9560
SCOUT
JEWELRY SCALE
®
These instructions contain installation, operation and
maintenance instructions for the Scout
scale. Please read these instructions completely before
using the scale.
Safety notes are marked with signal words and warning
symbols. These show safety issues and warnings.
Ignoring the safety notes may lead to personal injury,
instrument damage, malfunctions or false results.
SIGNAL WORDS
WARNING – For a hazardous situation with medium to
high risk, possibly resulting in injuries or death if not
avoided.
CAUTION: Read all safety warnings before
installing, making connections or servicing
this equipment. Failure to comply with these
warnings could result in personal injury
and/or property damage. Retain all
instructions for future reference.
• Verify that the local AC power supply is within
the input voltage range printed on the AC
adapter's data label.
• Only connect the AC adapter to a
compatible grounded electrical outlet.
• Do not position the scale such that it is
difficult to disconnect the AC adapter from
the power receptacle.
• Ensure the power cord does not pose a
potential obstacle or tripping hazard.
• This scale is intended for indoor use and
should only be operated in dry locations.
• Operate the unit only under ambient
conditions specified in these instructions.
PAGE 1 OF 17
DEFINITION OF SIGNAL WARNINGS AND SYMBOLS
SJX/E Series
®
1-800-295-5510
uline.com
CAUTION – For a hazardous situation with low risk,
resulting in damage to the device or the property, loss
of data or injuries if not avoided.
ATTENTION – For important information about the
product.
NOTE – For useful information about the product.
WARNING SYMBOLS
General Hazard
Electric Shock Hazard
SAFETY
• Do not operate the scale in hazardous or
• Do not drop loads on the pan.
• Only use approved accessories and
• Disconnect power from the scale before
• Service should only be performed by
unstable environments.
peripherals.
cleaning or servicing.
authorized personnel.
0921 IH-9560

Advertisement

Table of Contents
loading

Related Manuals for U-Line SCOUT H-9560

Summary of Contents for U-Line SCOUT H-9560

  • Page 1 H-9560 1-800-295-5510 uline.com SCOUT JEWELRY SCALE ® DEFINITION OF SIGNAL WARNINGS AND SYMBOLS These instructions contain installation, operation and CAUTION – For a hazardous situation with low risk, maintenance instructions for the Scout SJX/E Series resulting in damage to the device or the property, loss ®...

  • Page 2: Installation

    SAFETY CONTINUED INTENDED USE written consent, is considered not intended. This scale complies with current industry standards and the This scale is intended for use in laboratories, schools, recognized safety regulations, however, it can constitute businesses and light industry. It must only be used a hazard in use.

  • Page 3: Initial Calibration

    INSTALLATION CONTINUED LEVELING THE SCALE INITIAL CALIBRATION Unit has an illuminated level indicator as a reminder When the scale is first installed, and when it is moved that the scale should be leveled for accurate weighing. to another location, it must be calibrated to ensure There is a level bubble in a small round window on accurate weighing results.

  • Page 4: Operation

    OPERATION CONTROLS %dwt g/mol lb:ozt kgrn Print Function Tare Zero Units Mode Menu Back Exit Print Function Tare Zero Units Mode Menu BUTTON Back Exit Zero/On Print Function Tare Turns on the scale. Sends the current Initiates an Enter/clear a tare Primary Function (Short Press) value to the selected...
  • Page 5 OPERATION CONTINUED %dwt g/mol lb:ozt kgrn ITEM DESCRIPTION Battery charge Stable weight Negative Center of Zero Preset Tare Pointers Kilogram, grain Check Weighing Pound, Ounce, Pound:Ounce Symbols Percent, dwt, g/mol Gravity, Pieces, t hk, t sg, t tw, Hold Newton, Totalization, Dynamic, Bluetooth PAGE 5 OF 17 0921 IH-9560...

  • Page 6: Turning On/Off

    OPERATION CONTINUED TURNING ON/OFF 5. The scale will then display the sample size, i.e. [PUt 10]. Press No or Back to toggle the choices To turn on scale, press and hold the Zero button for (5, 10, 20, 50 or 100). one second.

  • Page 7: Zero Check

    OPERATION CONTINUED ZERO CHECK Press and hold Mode until [CHECk] is displayed. [CLr.rEF] (clear check limits) will then display. Zero check is used when comparing subsequent 2. Press No to use the stored check limits and proceed samples to an initial reference sample. In this case, the to step 5.

  • Page 8: Hold Mode

    OPERATION CONTINUED HOLD MODE PREPARATION Remove the pan, insert the hook and install the beaker There are two modes for the display hold: stand (beaker is not included). Press the Zero button to • Peak Hold: Allows the user to capture and store the turn on the scale.

  • Page 9: Menu Settings

    MENU SETTINGS The User Menu allows the customizing of scale settings. NOTE: Additional sub-menus may be available if Interface Options are installed. MENU NAVIGATION SUB-MENUS C.A.L S.E.T.U.P M.O.D.E U.N.I.T* E.N.D Long Press – Reset Reset Reset Tare Enter Menu Yes/No Yes/No Menu Exit...

  • Page 10: Calibration Menu

    MENU SETTINGS CONTINUED CALIBRATION MENU NOTE: If the scale will be used in direct sales to the public, the OFF setting must be selected. ENTER THIS MENU TO PERFORM CALIBRATIONS. FILTER Internal Calibration Perform Set the amount of signal filtering. Calibration Adjustment -100…0…100 Span:...

  • Page 11: Mode Menu

    MENU SETTINGS CONTINUED AUTO OFF PERCENT [PErcnt] Sets the automatic shutoff functionality. Set the status. • Off = Disabled • Off = Disabled • 1 = Powers off after one minute of no activity. • On = Enabled • 5 = Powers off after five minutes of no activity. CHECK [CHECk] •...

  • Page 12: Additional Features

    MENU SETTINGS CONTINUED UNIT MENU off, on off, on This menu activates units so they will be accessible with off, on the Units button. The units in the menu must be turned "On" to be active. off, on off, on NOTE: Available units vary by model and local off, on regulations.

  • Page 13: Maintenance

    MAINTENANCE CLEANING SERVICE INFORMATION WARNING! Electric shock hazard. Disconnect If the troubleshooting section does not resolve or the equipment from power supply before describe problem, contact Uline Customer Service at cleaning. 1-800-295-5510. The housing may be cleaned with a cloth dampened ACCESSORIES with a mild detergent if necessary.

  • Page 14: Technical Data

    LEGAL FOR TRADE SEALING When the scale is used in trade or a legally controlled application it must be set up, verified and sealed After the unit has been verified, it must be sealed by the in accordance with local weights and measures weights and measures official to prevent undetected regulations.
  • Page 15 TECHINICAL DATA CONTINUED NTEP AND MEASUREMENT CANADA APPROVED MODELS: MODEL H-9560 H-9561 Capacity 620 g 1,500 g Readability 0.1 g 0.01 g or 0.1 g Verification Interval e 0.1 g 0.1 g Class Span Calibration Mass 300 g 1.5 kg Linearity 300 g, 600 g 1 kg, 1.5 kg...
  • Page 16 TECHINICAL DATA CONTINUED DRAWINGS MODEL H-9560 202 mm / 8.0 in. 222 mm / 8.7 in. 103 mm / 4.1 in. H-9561 202 mm / 8.0 in. 224 mm / 8.8 in. 54 mm / 2.1 in. COMPLIANCE Compliance to the following standards is indicated by the corresponding mark on the product. MARK STANDARD This product conforms to the applicable harmonized standards of EU Directives 2011/65/EU (RoHS),...

  • Page 17: Fcc Compliance Statement

    TECHNICAL DATA CONTINUED Weighing Instruments verified at the place of Changes or modifications not expressly approved by manufacture bear the following supplementary the party responsible for compliance could void the metrology marking on the descriptive plate. user's authority to operate the equipment. MXX 1259 ISED CANADA COMPLIANCE STATEMENT This Class B digital apparatus complies with Canadian...
