USER MANUAL

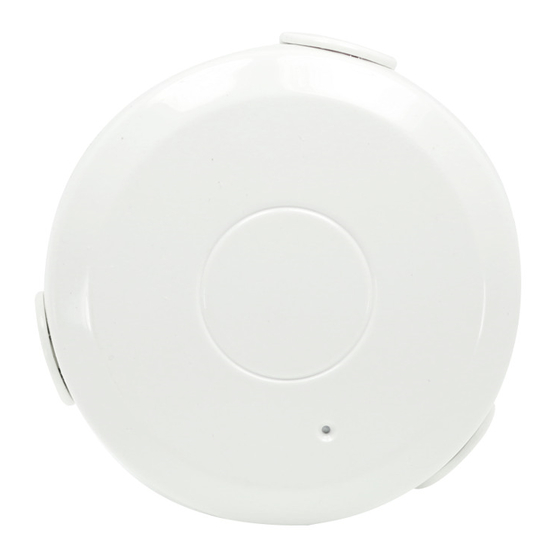

Z-WAVE WATER SENSOR
ZSE30
Z-Wave Plus Certified Device
FEATURES
- Reliable water and leak detection
- Wireless notifications and event triggers (when included to a Z-Wave gateway controller)
- Built-in audio and visual alarms
- Low battery alerts
- Z-Wave Plus with improved 500 chip for faster and safer wireless communication
- Flexible installation with 2 mounting options
SPECIFICATIONS
Model Number: ZSE30
Z-Wave Signal Frequency: 908.42 MHz
Power: 1 CR2 battery (included)
Power Consumption: 0.13W
Operating Temperature: 32 – 104 F
Range: Up to 100 feet line of sight
Installation and Use: Indoor only
Dimensions: 2.5" x 0.9"
Weight: 2 oz
BEFORE YOU RETURN IT
Let us know if you are having any issues installing or operating the device.
Our fast and friendly tech support is here to help, every day of the year: ask@getzooz.com
Get more helpful tips at getzooz.com
Advertisement
Table of Contents
Related Manuals for ZooZ ZSE30
Summary of Contents for ZooZ ZSE30
- Page 1 - Low battery alerts - Z-Wave Plus with improved 500 chip for faster and safer wireless communication - Flexible installation with 2 mounting options SPECIFICATIONS Model Number: ZSE30 Z-Wave Signal Frequency: 908.42 MHz Power: 1 CR2 battery (included) Power Consumption: 0.13W Operating Temperature: 32 –...
- Page 2 INSTALLATION WAIT! Include the Water Sensor to your Z-Wave network and test before mounting it. Z-WAVE INCLUSION 1. Bring the Water Sensor within direct range of your controller 2. Carefully remove the cover from the sensor 3. Remove the plastic pull-tab from the battery slot. The LED indicator will blink slowly 5 times 4.
- Page 3 FACTORY RESET When your network’s primary controller is missing or otherwise inoperable, you may need to reset the device to factory settings manually. To complete the process, make sure the Water Sensor is powered on, then PRESS AND HOLD the Z-Wave button for AT LEAST 10 SECONDS until the LED indicator flashes ONCE. Release the button.
- Page 4 ADVANCED SETTINGS If your controller’s software allows for advanced configuration and parameter adjustment, you will be able to change and save the settings below and customize the Water Sensor’s performance to serve your needs. Total Alarm Duration Parameter 1: Use this parameter to set the total duration of audio and visual alarm each time water is detected.
- Page 5 Enable / Disable Water Detection Parameter 6: Enable or disable water detection for the sensor by adjusting these parameter settings. Values: 0 – sensor disabled; 1 – sensor enabled (default setting). Size: 1 byte dec. Trigger Action Parameter 7: You can choose if your Water Sensor turns an associated device on or off when sending the basic set command.
- Page 6 See full list of Zooz distributors here: getzooz.com/buy During the Warranty Period, Zooz will repair or replace, at no charge, products or parts of a product that prove defective because of improper material or workmanship, under normal use and recommended maintenance.
- Page 7 You may also get in touch with the reseller of the product directly to return or replace the product within 30 days of purchase or within applicable reseller’s returns period. IN NO EVENT SHALL ZOOZ OR ITS SUBSIDIARIES AND AFFILIATES BE LIABLE FOR ANY INDIRECT, INCIDENTAL, PUNITIVE, SPECIAL, OR CONSEQUENTIAL DAMAGES, OR DAMAGES FOR LOSS OF PROFITS, REVENUE, OR USE INCURRED BY CUSTOMER OR ANY THIRD PARTY, WHETHER IN AN ACTION IN CONTRACT, OR OTHERWISE EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
- Page 8 - Connect equipment into a separate outlet or circuit from receiver - Consult the dealer or an experienced radio/TV technician for additional assistance All brand names displayed are trademarks of their respective holders. [c] Zooz 2016 ask@getzooz.com www.getzooz.com...
