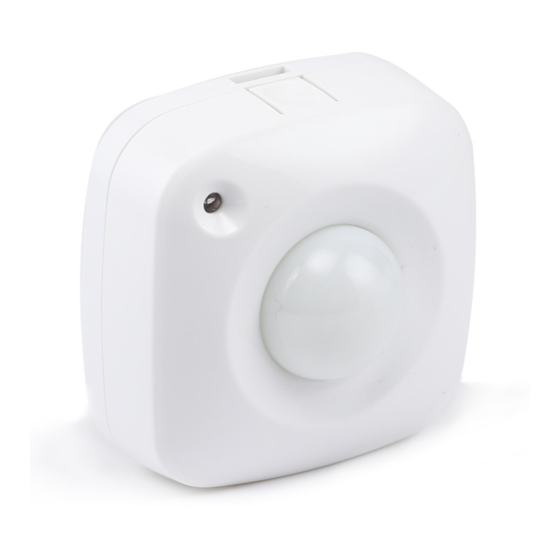

ZooZ ZSE40 User Manual

4 smart sensors in 1 compact device
Ÿ
7 levels of motion sensitivity
Ÿ
4 modes for motion / temperature LED indicator notifications
Ÿ
Built-in tamper protection
Ÿ
Low battery alerts
Ÿ
Z-Wave Plus + 500 chip more range and longer battery life
Ÿ
AES encryption (security-enabled hub required for best performance)
Ÿ
Model Number: ZSE40 VER. 2.0
Ÿ
Z-Wave Signal Frequency: 908.42 MHz
Ÿ
Power: 1 CR123A battery
Ÿ
Range: Up to 100 feet line of sight
Ÿ
Operating Temperature: 5-104° F
Ÿ
Installation and Use: Indoor only
Ÿ
1. Insert the battery.
2. Place the sensor near the location where it will be mounted.
4. Finalize inclusion at the sensor.
Use a paperclip (included in the
box) to access the Z-Wave button
for inclusion, exclusion, reset, and
manual wake-up.
5. The LED indicator will flash 5 times (color depends on room temperature,
it's usually blue or yellow) to signal communication and then turn off to
confirm inclusion. If the sensor flashes once only, try factory reset and go to
Step 1. If the sensor doesn't flash at all, try pressing the button more firmly.
The sensor won't add to your system? Try this:
1. Initiate EXCLUSION and click the Z-Wave button on the sensor twice.
2. Make sure the battery cover is closed tightly when adding the sensor.
3. Click the Z-Wave button on the sensor 6-7 times quickly when adding it.
4. Bring the sensor closer to your hub, it may be out of range.
5. Double-check if the battery is inserted correctly.
6. Get troubleshooting tips for your hub at www.support.getzooz.com
1. Bring the sensor within direct range of your Z-Wave gateway (hub).
2. Put the Z-Wave hub into exclusion mode (not sure how to do that?
ask@getzooz.com).
3. Press and release the Z-Wave button with a paperclip twice quickly.
4. Your hub will confirm exclusion and the device will disappear from your
controller's device list.
If your primary controller is missing or inoperable, you may need to reset
the device to factory settings. To complete the reset process manually,
OPEN the back cover to trigger tamper switch. Press and release the Z-
Wave button using a paperclip 10 TIMES quickly (within 10 seconds). The
sensor will start flashing immediately and will again flash 5 times a er the
10 clicks (color depends on room temperature, it's usually blue or yellow).
NOTE: All previously recorded activity and custom settings will be
erased from the device's memory.
The sensor's wake-up interval is set to 12 hours by default to save battery
life. You can change the wake-up interval using your controller's advanced
settings if available.
During wake-up, the sensor receives communication from the hub (setting
updates or network information). Long wake-up interval will not affect
how o en the sensor reports motion and other values to your hub.
MANUAL WAKE-UP
Press and release the Z-Wave button once to wake the device up. The LED
indicator will flash once (blue or orange).
You may need to wake the sensor up manually IF:
1. It doesn't fully configure during set-up (values are not displayed or errors
pop up in your hub's interface).
2. You change advanced settings for the sensor and want them to update.
OPTION 1: MOUNTING BRACKET
Use the 2 screws included in the box to fix the mounting bracket to flat
surface of your choice - at least 7 feet above the ground for best results.
Once the bracket is securely installed, carefully slide the 4-in-1 sensor onto
the bracket and position it by tilting it to either side, upwards, or
downwards - just like in the images below.
OPTION 2: ADHESIVE TAPE
Use the supplied adhesive tape to fix the sensor to a CLEAN flat surface of
your choice. Apply the tape as in the pictures below.
CORNER
INDOOR ONLY!
This sensor may only be used and installed indoors.
Outdoor installation will void its warranty.
For best results, mount the sensor within 30 feet from the door and
around 7 feet from the ground. The 4-in-1 Sensor will detect motion up to
40 feet depending on mounting location and sensitivity settings.
See Advanced Settings
for ways to optimize
and customize motion
detection and activity
reports.
WARNING
This product should be installed indoors upon completion of any building
Ÿ
renovations.
Prior to installation, the device should be stored in a dry, dust-and-mold-
Ÿ
proof place.
Do not install the sensor in a place with direct sun exposure, high
Ÿ
temperature, or humidity.
Keep away from chemicals, water, and dust.
Ÿ
Ensure the device is never close to any heat source or open flame to prevent
Ÿ
fire.
Ensure the device is connected to an electric power source that does not
Ÿ
exceed the maximum load power.
No part of the device may be replaced or repaired by the user, except for the
Ÿ
battery.

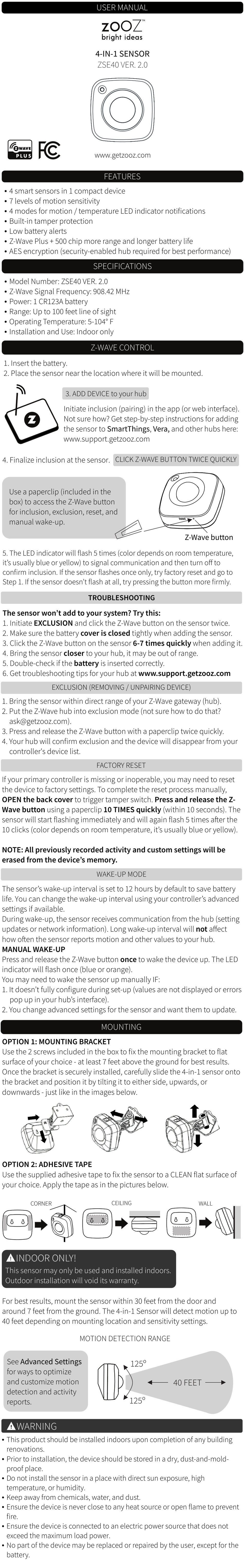

USER MANUAL
4-IN-1 SENSOR
ZSE40 VER. 2.0
www.getzooz.com

SPECIFICATIONS

Z-WAVE CONTROL

3. ADD DEVICE to your hub
Initiate inclusion (pairing) in the app (or web interface).
Not sure how? Get step-by-step instructions for adding
the sensor to SmartThings, Vera, and other hubs here:
www.support.getzooz.com

TROUBLESHOOTING

EXCLUSION (REMOVING / UNPAIRING DEVICE)

FACTORY RESET

WAKE-UP MODE

MOTION DETECTION RANGE

FEATURES

CLICK Z-WAVE BUTTON TWICE QUICKLY

MOUNTING

CEILING
125º
125º
Z-Wave button
WALL
40 FEET
