USER MANUAL
USER MANUAL

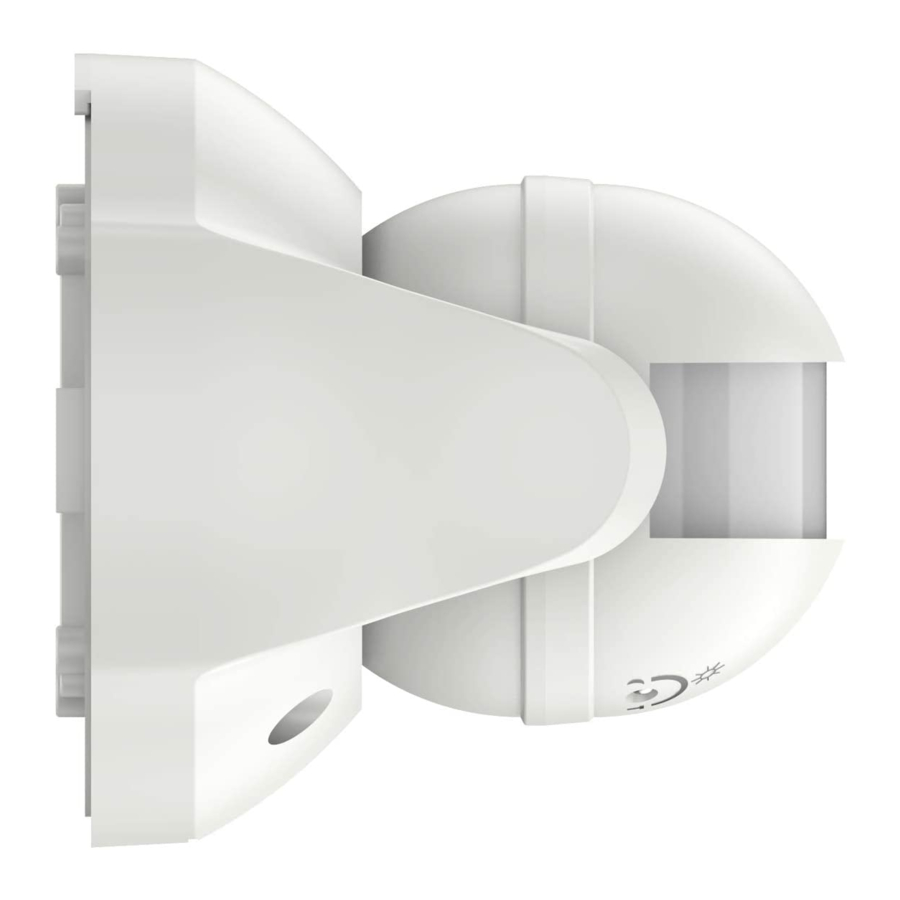

OUTDOOR MOTION SENSOR
ZSE29 VER. 2.0
S2
www.getzooz.com
Firmware 2.01

FEATURES

Quick and reliable motion alerts to Z-Wave hub
Ÿ
Outdoor ready housing (avoid direct sun on lens)
Ÿ
Set motion time-out and lux trigger at the sensor
Ÿ
Auto-inclusion for easy set-up
Ÿ
The latest S2 security and Z-Wave Plus chip
Ÿ
Powered by common batteries or Micro USB
Ÿ
Built-in tamper switch for extra security
Ÿ

SPECIFICATIONS

Model Number: ZSE29 VER. 2.0
Ÿ
Z-Wave Signal Frequency: 908.42 MHz
Ÿ
Power: 3 x AA (1.5 V) batteries / Micro USB
Ÿ
Motion Detection: up to 30 feet
Ÿ
Operating Temperature: -4 – 104 F
Ÿ
Warm-up time: 1 minute
Ÿ
Range: Up to 130 feet line of sight
Ÿ
Installation and Use: Indoor / Outdoor
Ÿ

INSTALLATION

1. CHOOSE POWER SOURCE

You can use 3 standard AA batteries to power the
sensor. They'll last up to a year depending on traffic,
weather condition, and general quality of the batteries.
OR you can use the optional USB port and not worry
about batteries at all.

2. INSTALL BATTERIES / USB ADAPTER BOARD

Unscrew the 2 front screws with a phillips screw-driver
to open the back cover.
If you're using batteries, insert them in following
orientation marks.
2. Insert the USB
adapter board into
the battery slot.
OR
If using the optional
USB port, follow
these steps:
1. Locate the USB entry
way and carefully break
the safety tab off.
3. Position the USB port
cable in the entry way
securely.

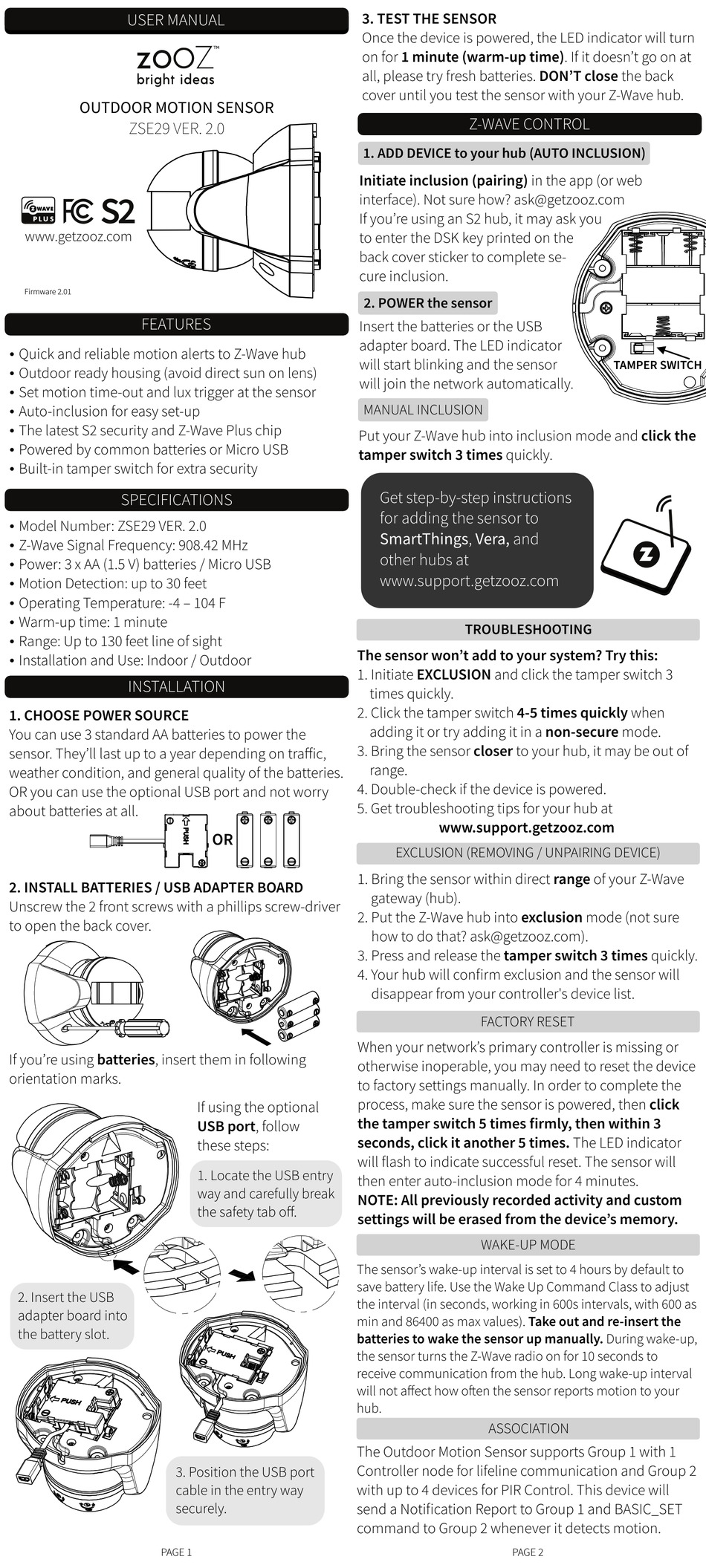

PAGE 1

3. TEST THE SENSOR

Once the device is powered, the LED indicator will turn
on for 1 minute (warm-up time). If it doesn't go on at
all, please try fresh batteries. DON'T close the back
cover until you test the sensor with your Z-Wave hub.
Z-WAVE CONTROL

1. ADD DEVICE to your hub (AUTO INCLUSION)

Initiate inclusion (pairing) in the app (or web
interface). Not sure how? ask@getzooz.com
If you're using an S2 hub, it may ask you
to enter the DSK key printed on the
back cover sticker to complete se-
cure inclusion.

2. POWER the sensor

Insert the batteries or the USB
adapter board. The LED indicator
will start blinking and the sensor
will join the network automatically.

MANUAL INCLUSION

Put your Z-Wave hub into inclusion mode and click the
tamper switch 3 times quickly.
Get step-by-step instructions
for adding the sensor to
SmartThings, Vera, and
other hubs at
www.support.getzooz.com

TROUBLESHOOTING

The sensor won't add to your system? Try this:
1. Initiate EXCLUSION and click the tamper switch 3
times quickly.
2. Click the tamper switch 4-5 times quickly when
adding it or try adding it in a non-secure mode.
3. Bring the sensor closer to your hub, it may be out of
range.
4. Double-check if the device is powered.
5. Get troubleshooting tips for your hub at
www.support.getzooz.com

EXCLUSION (REMOVING / UNPAIRING DEVICE)

1. Bring the sensor within direct range of your Z-Wave
gateway (hub).
2. Put the Z-Wave hub into exclusion mode (not sure
how to do that? ask@getzooz.com).
3. Press and release the tamper switch 3 times quickly.
4. Your hub will confirm exclusion and the sensor will
disappear from your controller's device list.

FACTORY RESET

When your network's primary controller is missing or
otherwise inoperable, you may need to reset the device
to factory settings manually. In order to complete the
process, make sure the sensor is powered, then click
the tamper switch 5 times firmly, then within 3
seconds, click it another 5 times. The LED indicator
will flash to indicate successful reset. The sensor will
then enter auto-inclusion mode for 4 minutes.
NOTE: All previously recorded activity and custom
settings will be erased from the device's memory.
WAKE-UP MODE
The sensor's wake-up interval is set to 4 hours by default to
save battery life. Use the Wake Up Command Class to adjust
the interval (in seconds, working in 600s intervals, with 600 as
min and 86400 as max values). Take out and re-insert the
batteries to wake the sensor up manually. During wake-up,
the sensor turns the Z-Wave radio on for 10 seconds to
receive communication from the hub. Long wake-up interval
will not affect how o en the sensor reports motion to your
hub.
ASSOCIATION
The Outdoor Motion Sensor supports Group 1 with 1
Controller node for lifeline communication and Group 2
with up to devices 4 for PIR Control
send a Notification Report
command to Group 2
TAMPER SWITCH
. This device will
to Group 1 and BASIC_SET
when ever it detects motion.
PAGE 2
