ZooZ S2 User Manual

USER MANUAL

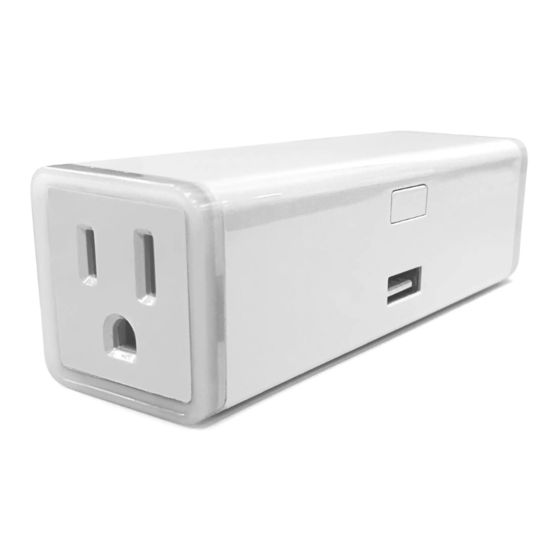

S2 Double Plug with USB Port
Z-Wave on/ ontrol of 2 electrical devices
Ÿ
On/ ging/charged) reports from USB port to the hub (no Z-
Ÿ
Wave control) - turn the charging device for best results
Energy monitoring for each outlet
Ÿ
Smart LED indicator displays power use and Z-Wave signal strength
Ÿ
Built-in overload protection and ETL certification
Ÿ
Z-Wave Plus signal repeater to extend network range
Ÿ
S2 security and 500 Z-Wave chip for reliable wireless communication
Ÿ
SPECIFICATIONS
Model Number: ZW47
Ÿ
Z-Wave Signal Frequency: 908.42 MHz
Ÿ
Power: 120 VAC
Ÿ
Maximum Load: 10 A total (between 2 outlets)
Ÿ
Maximum Load for USB port: 2.1 A
Ÿ
Range: Up to 100 feet line of sight
Ÿ
Installation and Use: Indoor only
Ÿ
CAUTION
This is an electrical device - please use caution when installing and
operating the Double Plug. Remote control of appliances may result in
unintentional or automated activation of power. Do NOT use this Z-Wave
device to control electric heaters or other appliances which produce the
risk of fire, burns, or electrical shock when unattended.
INSTALLATION
Plug the Double Plug into any standard grounded 110 V receptacle. Do
NOT connect any devices to the plug at this point. Click the Z-Wave
button once to turn on the
right outlet on. See if the LED indicators c
indicators don't light up at all, please tr
s , please make sure the Double Plug is on.
BEFORE YOU PLUG ANYTHING IN
e sure the load you are about to connect does NOT e c
in power. This Double Plug can hold up to 10 A in total. It means that the
power of all devices connected to your ZEN25 at a given time can NOT
exceed 10 A. It doesn't matter if this is just one device connected to one
of the outlets or 2 small appliances plugged into both outlets.
Connecting heavy duty equipment to this Double Plug will D
the device and may cause the connected appliance to malfunction.
X
DON'T USE WITH OK. TO USE WITH
Washers Floor Lamps
Ÿ Ÿ
Dryers Tv's and Video
Ÿ Ÿ
Refrigerators Computers
Ÿ Ÿ
Electric heaters Game Consoles
Ÿ Ÿ
Fans Alarm Clocks
Ÿ Ÿ
Pumps Printers
Ÿ Ÿ
Chargers Speakers
Ÿ Ÿ
Routers Audio Players
Ÿ Ÿ
ZW47
FEATURES
outlet and double-click it to turn the
. If the LED
erent receptacle. If they're
WARNING
This product should be installed indoors upon completion of any building
Ÿ
renovations.
Prior to installation, the device should be stored in a dry, dust-and-mold-
Ÿ
proof place.
Do not install the Double Plug in a place with direct sun exposure, high
Ÿ
temperature, or humidity.
Keep away from chemicals, water, and dust.
Ÿ
Ensure the device is never close to any heat source or open flame to prevent
Ÿ
fire.
Ensure the device is connected to an electric power source that does not
Ÿ
exceed the maximum load power.
No part of the device may be replaced or repaired by the user.
Ÿ
ADD DEVICE to your hub (AUTO INCLUSION)
Initiate inclusion (pairing) in the app (or web
interface).
2. POWER the Double Plug
Plug the device into a grounded 120 VAC receptacle
you're planning to use it at (it doesn't need to be close
to the hub). The LED indicators will start blinking and the Double Plug will
join the network automatically. If it lights up in yellow, inclusion has failed.
3. You will see 4 new on/
monitoring (the USB port reporting charging/ charged
1 channel for on/
status, no control), and 1 master node to control both outlets at the same
time and to access and adjust advanced settings in (if your hub supports
parameter input).
MANUAL INCLUSION
Put your Z-Wave hub into inclusion mode and
-Wave butt
The Double Plug won't add to your system? Try this:
1. Initiate EXCLUSION and click the Z-Wave button 3 times quickly.
2. Click the Z-Wave button 4-5 times quickly when adding it.
3. Bring the Double Plug closer to your hub, it may be out of range.
4. Double-check if the device is powered.
EXCLUSION (REMOVING / UNPAIRING DEVICE)
1. Bring the plug within direct range of your Z-Wave gateway (hub).
2. Put the Z-Wave hub into exclusion mode.
3. Press and release the Z-Wave button 3 times quickly.
4. Your hub will confirm exclusion and all of the channels (child outlets)
and the main device will disappear from your controller's device list.
If your primary controller is missing or inoperable, you may need to reset
the device to factory settings. To complete the reset process manually,
click-click-click'n
NOTE: All previously recorded activity
the kWh record will be erased from the device's memory
Wave butt
outle
How to read LED indicator colors?
The LED indicators on your Double Plug will visually report power use and
Z-Wave range (see next page for range test details).
No light / Whit
Cyan = 200 – 400 W
Orange = 600 – 800 W
Purple = 1000 – 1200 W
This product is covered under a 12-month limited warranty.
FCC NOTE
THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY
UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE
USER'S AUTHORITY TO OPERATE THE EQUIPMENT. STORE INDOORS WHEN NOT IN USE. SUITABLE
FOR DRY LOCATIONS ONLY. DO NOT IMMERSE IN WATER. NOT FOR USE WHERE DIRECTLY EXPOSED
TO WATER.
FCC Caution.
GE
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Any Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates uses
and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
connected.
-Consult the dealer or an experienced radio/TV technician for help.
*RF warning for Mobile device:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environ-
ment. This equipment should be installed and operated with minimum distance 20cm between the
radiator & your body.
Z-WAVE CONTROL
vices in your app: 2 channels for on/
quickly.
-WAVE BUTTON
TROUBLESHOOTING
FACTORY RESET
-Wave button for at least 0 seconds.
and custom settings
o reset the kWh record fr
o reset the kWh record from the right outlet.
LED INDICATOR
Blue = 0 – 200 W
Green = 400 – 600 W
Red = 800 – 1000 W
Purple blink = over 1200 W
WARRANTY
ontrol,
USB PORT
EXCEPT for
-
