Mold-Masters TEMPMASTER M2 PLUS Quick Manual

QUICK GUIDE FOR TEMPMASTER™
M2 PLUS CONTROLLER

MAIN SCREENS AND MENUS

CONFIGURE THE CONTROLLER

CREATE A NEW TOOL

CONFIGURE CONTROL CARDS

CONFIGURE TOOL PARAMETERS ZONE BY ZONE

CONFIGURE TOOL AND SYSTEM SETTINGS
Save A Tool / Settings To The Toolstore
Set Zone Temperature
SETUP EASYVIEW SCREEN

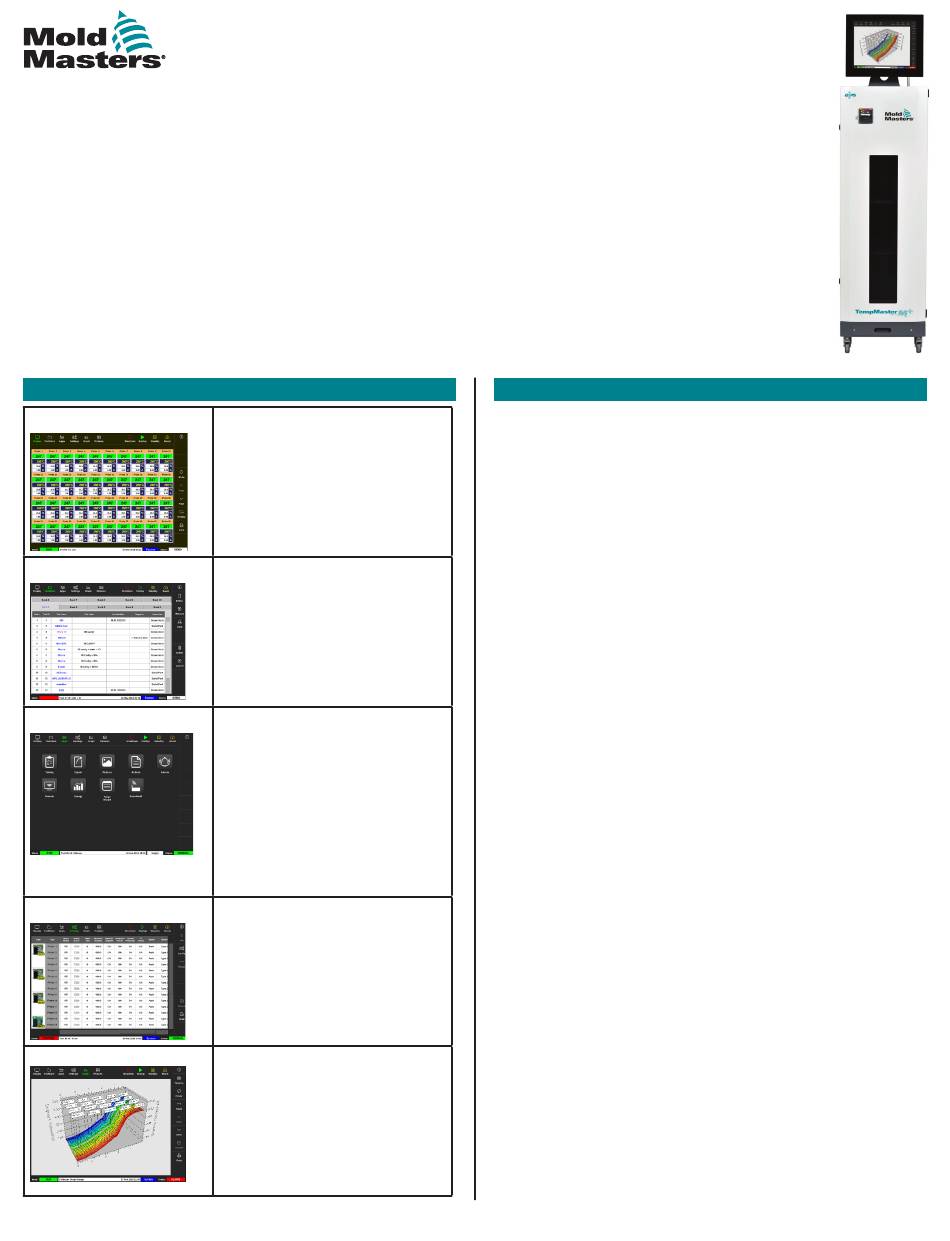

MAIN SCREENS AND MENUS
Display Screen
ToolStore Screen
Apps Screen
Settings Screen
Graph Screen
M2P--QG--EN--00--03-1
Refer to the M2P Controller User Manual for full instructions and safety information.
Functions:
Monitor and Information:
observe zone condition
Control: side command buttons
change from page to page
Navigation: tabs allow the user to
switch between the different pages
Description:
List of tools with names and saved
settings.
Gives access to other pages:
•
Testing
•
Export
•
Pictures
•
Actions
•
Alarms
•
Remote
•
Energy
•
Purge Wizard
•
Smart Mold
Description:
Gives access to tool and system
settings.
Description:
Displays graphs of temperature
or power versus time for up to 20
zones.
Operate The Controller
Startup Procedure
Load Tool Settings
Change Modes - Individual Zones
Change Modes - Multiple Zones
Check Zone Performance
Shutdown Procedure
Global Support
CONFIGURE THE CONTROLLER
CREATE A NEW TOOL
1. Choose [ToolStore].
2. Choose an empty tool slot then choose [Detect].
3. Enter password if required.
4. Enter tool name.
CONFIGURE CONTROL CARDS
1. Choose [Settings].
2. Choose a zone from the Type column.
3. Choose [Set].
4. Choose zone type.
5. Change header color if required.
6. Choose [OK] to accept the changes or [Cancel] to return to the
Settings screen without saving any changes.
NOTE: all temperature control cards initally default to probe zones and
use probe default values.
CONFIGURE TOOL PARAMETERS ZONE BY ZONE
1. Choose [Settings].
2. Choose the zone or zones to be configured and choose the
column of the required parameter.
3. Choose [Set] and enter password if required.
4. Set the required value.
5. Repeat steps 2 through 5 for each parameter that requires
adjustment.
NOTE: see user manual for a list and descriptions of tool parameters.

CONFIGURE TOOL / SYSTEM SETTINGS

1. Choose [Settings] and then choose [Config].
2. Enter password if required.
3. Choose [Tool Config] from Tool Settings or [System Config] from
System Settings.
4. Choose the required setting and enter the required value or
option.
5. Choose [OK] to accept the value or choose [Back] to return to the
Tool or System Config screen without saving.
IMPORTANT: to save any setting change permanently, the user must
save it to the ToolStore.
2021 Mold-Masters. All Rights Reserved.
